Product Details:
Payment & Shipping Terms:
|
| Name: | Metal Melting Furnaces | Temperature Controller: | PID Control |
|---|---|---|---|
| Furnace Type: | Stationary | Furnace Capacity: | 350, 500, 800, 1000kgs |
| Temperature Control Accuracy: | Plus/minus 5 Degree Celsius | Max Furnace Temperature: | 850 Degree Celcius |
| High Light: | metal melting machine,aluminum melting furnace |
||

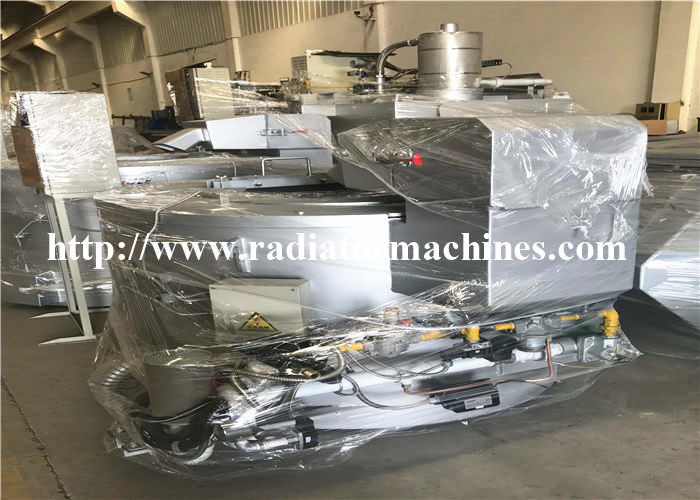

Gas Fired Aluminum Metal Melting Furnace Pipe Burning System Saving Energy
Features
1) The furnace lining is composed of the casting material and the ceramic fiber module material, which has the
characteristics of good heat preservation effect, small heat storage and fast heating rate. The wall temperature
rise is ≤ 40℃.
2) The metal melting furnace adopts separation type burning system with PID control, which significantly reduces
energy consumption. The temperature control accuracy reaches ±5℃.
3)The metal melting furnace is equipped with one thermal couple protected by the silicon nitride outer pipe, and this
thermal couple could directly measure the aluminum liquid.
4) The furnace adopts European brand graphite crucible, which has a good thermal conductivity,
a long life, and no iron hyperplasia.
5) The metal melting furnace is equipped with liquid leak alarm, over-temperature alarm and other functions
to ensure the safety of equipment and operation.
6) The metal liquid is automatically poured out, easy, safe and reliable.
Technical Parameters
| Model | Crucible Capacity (kg) | Melting Capacity (kg/h) |
Overall Dimension (mm) L * W* H |
| WR-RGQF-350 | 350 | 150 | 1500*1600*1750 |
| WR-RGQF-500 | 500 | 200 | 1670*1700*1800 |
| WR-RGQF-800 | 800 | 300 | 1800*1800*1900 |
| WR-RGQF-1000 | 1000 | 400 | 1800*2100*2400 |
Advantages of separation pipe burning system:
1) the separation pipe burning system has a lower fault rate, and a low maintenance cost.
2) the separation pipe burning system has a low energy consumption.
3) the separation pipe burning system has a more accurate control of the temperature.
Company Product:
Our company supplies the oil fired or gas fired zinc powder rotary melting furnaces, oil or gas fired zinc powder rotary metal
melting furnace, gas oir oil fired aluminum scrap melting furnaces, reveberatory aluminum melting furnace, continuous aluminum
melting furnae, aluminium melting furnace crucible melting furnace, aluminum liquid transfer ladles, aluminum ladle preheater,
electric aluminium melting furnace, electric aluminium holding furnace, gas fired aluminum holding furnace, box type resistance furnace,
etc.
Crucible melting furnace with pipe burning system is proved to save energy consumption of about 10-20% of fuel consumption.
