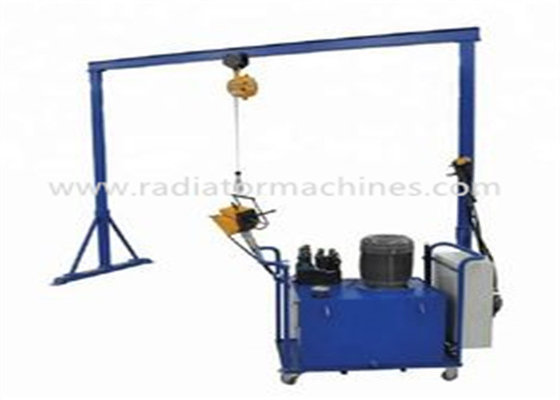

Portable Manual Tube Expander Gantry Stand Type 7-16mm Tube Diameter

Portable Manual Tube Expander Gantry Stand Type 7-16mm Tube Diameter

Portable Manual Tube Expander Gantry Stand Type 7-16mm Tube Diameter
Portable Manual Tube Expander Gantry Stand Type 7-16mm Tube Diameter

Large Image :  Portable Manual Tube Expander Gantry Stand Type 7-16mm Tube Diameter

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: wooden case suitable for sea transportation
Supply Ability: 100 Set/Sets per Year
Detailed Product Description
Machine Name: Vertical Expansion Machine Use: Expand The Tube Inside And Tube Mouth, And Also Can Fold-edge
Application Field: HVAC System; Air-conditioner Copper Tube Diameter: 7-16mm
Function: Expanding The Inside And End Of The Tube Working Mechanism: Hydraulic Expansion Mechanism
Customized Service: Provided According To Product Drawing Machine Color: Standard Skyblue
Machine Type: Vertical Type Expansion Machine Machine Structure: Gantry Stand Type
After-sales Service Provided: Engineers Available To Service Machinery Overseas Port: Shanghai
High Light:

pipe expander machine

,

vertical expander machine

Manual Portable Type Tube Expansion Machine



The machine is comprised of expansion head, mouth expander, hydraulic station, electrical control box, gantry stand, and balancer.

It is also equipped with 4 high pressure hoses and 2 control cables. The machine can manually expand the tube mouth and the tube inside.

Type

Portable Type

Heat exchanger specification

Usual copper tube outer diameter (mm)

7/ 7.94 /9.52 /16

Normal fin thickness (mm)

12.7/19.05/21.65/22, 32.91

Length (mm)

~7000

Tube row quantity

1~8

Max hole quantity per row (based on hole-to-hole distance at 25mm)

Decided by the product design

Expansion speed

Speed (m/min)

~12.5

Oil pump motor power (kw)

2.2

Hydraulic oil

ISOVG32 (winter)/ISOVG46(summer)

Lubrication oil

Mechanical oil ISOVG22-32









Packaging & Shipping



The machine is packed in plywood cases which can be moved through foklift by its feet.

The nearest sea port is Shanghai port which is the largest and most convenient port over China.

The delivery time is 60 days after receipt of down payment.

The machine can be loaded into normal container (20GP or 40GP).





Our Services



Our company provides test-running service to the customers. We would send our engineers to the buyer's site for installation, test-running and training service. The customer should bear the following costs: round-way air ticket fare, and board and lodging, and daily allowance.

The warrantee period is 1 year after completion of test-running.

We provide technical support life-time.



Company Information



Wuxi Wondery Trading Co., Ltd is a comprehensive equipment supplier cooperating with various domestic factories. We can supply the heat exchanger production line for auto radiators, condensers, oil-coolers, heaters, or other products, and HVAC condensers and evaporators.



Auto Condenser Production Line

Including: collecting pipe single-punch mold; collecting pipe automatic forming machine; aluminum one-end or two-end chamfering machine; semi-automatic core builder; condenser

side plate forming machine; collecting pipe slitting machine; flat tube straightening and cutting machine; aluminum brazing furnace.



Auto Radiator Production Line

Including: machines for brazing type radiator: fin making machine, radiator core assembly machine, plastic tank crimping machine, leak detector, header and side plate mold, and brazing furnace; machines for mechanical type radiators: fin mold, tube-to-fin expansion machine,

tube-to-header expansion machine, plastic tank crimping machine, etc;



Evaporator Production Line

Including: fin mold (single-punch type or progressive type); serpentine tube bending machine; evaporator assembly table, etc;



HVAC Evaporator and Condenser Production Line

Including: heat exchanger bending machine; Long/short U-tube bending machine; copper tube straightening and cutting machine; fin press line; progressive fin mold; vertical/horizontal expansion machine; others.



Other Heat Exchanger Making Machines

Machines and/or molds for similar heat exchanger products and their accessories

 Portable Manual Tube Expander Gantry Stand Type 7-16mm Tube Diameter 0

FAQ





1)  Q: What is the power supply of the machine?

      A:  The power supply of the machine is to be decided by the customer's  side. We are able to adjust the power

supply (volt, and phase) through a transformer so that the machine is ready for use at the end user's site.

2) Q: What information should the customer provide to get an accurate quotation from us?

     A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.

3) Q: What is the payment term?

     A: The payment term is 30% down payment, and 70% before delivery (T/T mode).

4) Q: What is the delivery time?

     A: The delivery time of the machine is 60 days after receipt of down payment.

5) Q: What is the warrantee period of the machine?

     A: The warrantee period is 1 year after completion of test-running.
