High Efficiency E;ectric Bogie Hearth Furnace With Advanced CAD Design

High Efficiency E;ectric Bogie Hearth Furnace With Advanced CAD Design

High Efficiency E;ectric Bogie Hearth Furnace With Advanced CAD Design
High Efficiency E;ectric Bogie Hearth Furnace With Advanced CAD Design

Large Image :  High Efficiency E;ectric Bogie Hearth Furnace With Advanced CAD Design

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: ISO CERTIFICATE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: nude package or steel case package, suitable for sea transportation
Delivery Time: 60 Days
Supply Ability: 100 Set/Sets per Year
Detailed Product Description
Name: Bogie Hearth Furnace Energy Medium: Electric Resistance
Power: 220KW Effective SIZE: 1850×1250×1850mm
Hearth Size: 2050×1450×1950mm Bogie Face Plate: Ni7N
High Light:

bogie type furnace

,

energy saving furnace

High efficiency Gas Fired Bogie Hearth Car Bottom Furnaces

Application

The bogie hearth furnace is mainly used for heat treatment of metal parts.



Main Technical Parameters



No. Item Technical Parameters
1 Rated power 220kW+5% (1-100%) adjustable
2 Power supply 380V,3P,50Hz
3 Rated temperature 1100℃
4 Empty furnace temperature rising speed ≤2h
5 Control zone 2 zones
6 Effective working size 1850×1250×1850mm (L,W,H)
7 Hearth size 2050×1450×1950mm (L,W,H)

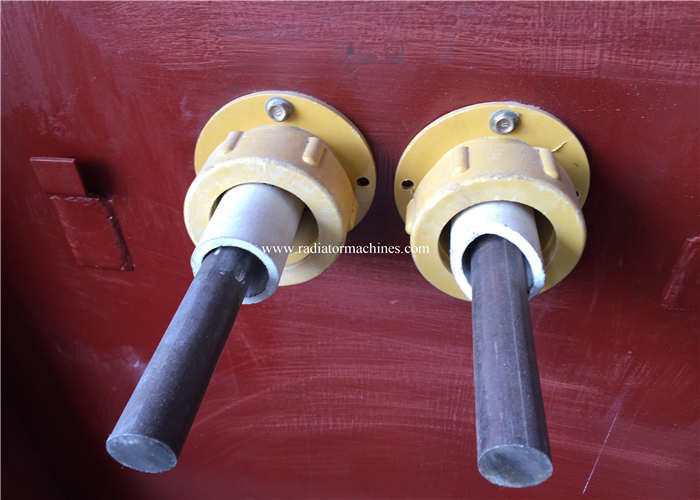

8 Heating element connection
9 Temperature uniformity ±10℃
10 Instrument control accuracy ±2℃
11 Empty furnace power consumption ≤18%
12 Temperature control method SCR, PID regulator, Guolong temperature controller, paperless temperature recorder, over-temperature alarm
13 furnace surface temperature rise <45℃+ room temperature
14 Heating element material 0Cr27AL7Mo2 (strip) 5-wall heating
15 Bogie face plate Ni7N
16 Loading method Product loaded on the bogie, and then bogie moves into the furnace
17 Furnace lining High temperature refractory fiber structure
18 Furnace door opening method

Electrical up-down 2ton electric hoist

Electric push rod sealing

19 Bogie in/out method 3KW cycloidal pin wheel reducer



Structural Introduction

The bogie hearth furnace is mainly comprised of furnace body, lining, furnace door and door up-down system,

bogie, heating element, and temperature control system.



 furnace body

The furnace body steel structure of the car bottom furnace is made from 10-12mm sectional steel and 3mm steel plates.

The side pillar and back pillars are made from sectional steel, and are reinforced with sectional steel bracings. The external wall

of the car bottom furnace is painted with 2 layers of primers, and 2 layers of coating paint. The key part of the car bottom furnace is painted

with heat resistant paint.



Main Features

1) High efficiency Bogie Hearth Car Bottom Furnace has a shell of welded steel plates and sectional steel.

The structure is of thick material.
2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with

the traditional brick hearth.
3) Heating components: high temperature resistance alloy wires and strips.
4) Low noise, energy-friendliness, and stable performance.

5) Advanced CAD design.

6) Years of experiences in heat treatment process.




Control Cabinet

Name: GGD type electrical control cabinet
Brand: CHINT, SIEMENS, Schneider, Omron, etc.
Original: China, Germany, French, Japan, etc.
