Servo Type Aluminum Radiator Core Assembly Machine with Tube Distribution Function

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE
Model Number: ZPJ-BJ2
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: plywood case suitable for sea transportation
Delivery Time: 90 Days
Supply Ability: 100 Set/Sets per Year

Detail Information

Machine Name: Radiator Core Builder Machine Model Number: ZPJ
Cycle: 2.5-3 Minutes Per Core Assembled Power: Pneumatic And Electrical
Machine Size: 1800×2200×2200mm Machine Weight: 2500kgs
High Light:

core assembly machine

,

radiator core builder

Product Description

Servo Type Aluminum Radiator Core Assembly Machine with Tube Distribution Function





Application

The radiator core builder machine can assemble the flat tubes, fins, headers, and side plates by one working cycle.

In particular, the machine can also expand the tube end automatically at the time of assembling the header.



The radiator core assembly machine combines the mechanical, servo and pneumatic system with

manual operation to assemble

the radiator core. The radiator core builder machine takes domino type automatic flat tube distribution,

mechanical tube and fin alighment, mechanical core compression, automatic header assembling and other

auxiliary manual operation to complete assembling.



Main Features

This radiator core assembly machine consists of left and right header positioning fixture, tube end expansion device,

tube storage box, tube distribution device, tube guidance device, tube guidance screw, assembling working table, flat tube and fin

positioning device, tube distribution up-down platform,core body compression mechanism, pneumatic system,

and electrical system. The core assembly machine combines the mechanical, servo and pneumatic system with screw

adjustment to assemble the radiator core.





Technical Parameters:

Header to header distance: 300-1000mm

Fin width: according to customer’s requirement

Fin height: according to customer’s requirement
Flat tube quantity: according to customer’s requirement

Flat tube width: according to customer’s requirement

Flat tube thickness: according to customer’s requirement

Flat tube spacing: according to customer’s requirment

Power supply: AC-380V 50Hz
Equipment overall dimension (for reference): 1800×2200×2200mm

Equipment weight: about 2500KG







Company Info:

Wuxi Wondery Trading Co., Ltd is a comprehensive equipment supplier cooperating with

various domestic factories. We can supply the heat exchanger production line for auto radiators,

condensers, oil-coolers, heaters, or other products, and HVAC condensers and evaporators.





Auto Radiator Production Line

Brazing radiator machines: fin machine, radiator core

builder machine, plastic tank clinching machine, leak detector, header and side plate mold,

continuous brazing furnace;

mechanical radiator machines: high speed fin punching machine, fin die, tube-to-fin expansion

machine, tube-to-header expansion machine, plastic tank clinching machine, etc;

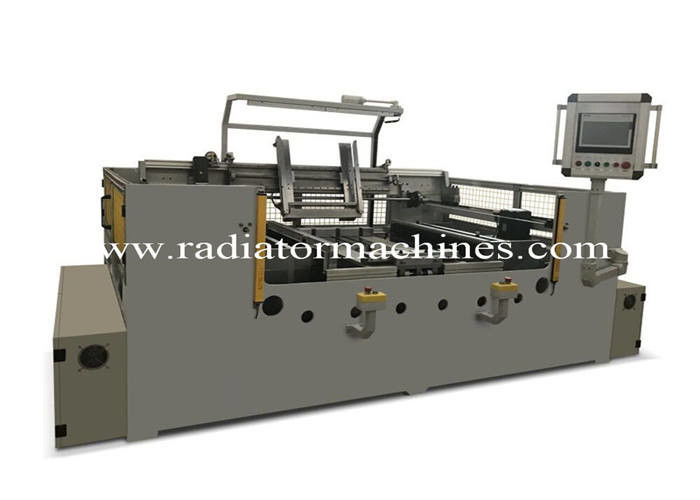

 Picture of Radiator Core Assembly Machine:
