PLC Controlled Bogie Hearth Furnace For Heat Treatment ISO Certificated

PLC Controlled Bogie Hearth Furnace For Heat Treatment ISO Certificated

PLC Controlled Bogie Hearth Furnace For Heat Treatment ISO Certificated
PLC Controlled Bogie Hearth Furnace For Heat Treatment ISO Certificated

Large Image :  PLC Controlled Bogie Hearth Furnace For Heat Treatment ISO Certificated

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: ISO CERTIFICATE
Model Number: RT2-200-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: nude package or steel case package, suitable for sea transportation
Delivery Time: 60 Days
Supply Ability: 100 Set/Sets per Year
Detailed Product Description
Name: Bogie Hearth Furnace Energy Medium: Electric Resistance
Effective Size: 3000×1100×1100mm Rated Temperature: 1200 Degree Celcius
Door Moving Speed: 6-8m/min Control Zone Number: 2 Zones
High Light:

bogie type furnace

,

energy saving furnace

 PLC Controlled Bogie Hearth Furnace For Heat Treatment ISO Certificated


Company Info

Our company is a professional supplier of heat treatment furnaces such as electric resistance bogie hearth furnace,

car bottom furnace,gas fired bogie hearth furnace, gas fired mesh belt furnace, electric resistance mesh belt furnace,

carburizing furnace,nitriding furnace, steel wire annealing furnace, salt bath furnace, box type resistance furnace,

aluminum melting furnace,crucible melting furnace, gas fired melting furnace, gas fired aluminum melting furnace,

gas fired holding furnace, electric resistance aluminum holding furnace, aluminum melting furnace for die casting machine,

aluminum quenching furnace, etc.



Product Application

The resistance bogie hearth furnace is mainly used for heat treatment of metal parts.





SPECIFICATIONS FOR Hot sales Electric Bogie Hearth Heat Treatment Furnace




Temperature control
system
Rated Temperature
1200
common heating temperature
400-1100
Furnace body surface temperature
≤ 55 + room temperature
Temperature control system accuracy
≤±1
Uniformity of furnace temperature
≤±10
Electrical System
Voltage

according to customer's
Temperature Control Method

PID
Components brand

Siemens, Schneider, CHINT(or other quality domestic or overseas brand)

Mechanical system
door lifting mechanism

electric hoist
bogie driving system

reducing motor
door and bogie moving speed
m/min
6-8
Refractory lining
hearth lining

aluminum silicate fiber
bogie lining

refractory brick



Technical Parameters of Bogie Hearth Furnace RT2-200-12

No. Item Technical Parameters
1 Rated power 200kW+5% (1-100%) adjustable
2 Power supply 380V,3P,50Hz
3 Rated temperature 1200℃
4 Empty furnace temperature rising speed ≤1.5h to receive 800℃
5 Control zone 2 zones for temperature and 2 other points for measuring the temperature, 4 thermal couples in total
6 Effective working size 3000×1100×1100mm (L*W*H)
7 Heating element connection
8 Temperature uniformity ±10℃
9 Instrument control accuracy ±2℃
10 Empty furnace power consumption ≤18%
11 Temperature control method SCR *PID regulator* Shimaden temperature PLC+HMI controller
12 furnace surface temperature rise <45℃+ room temperature
13 Heating element material 0Cr27AL7Mo2 (strip) 5-wall heating
14 Bogie face plate ZG40Cr24Ni7SiN
15 Loading method Product loaded on the bogie, and then bogie moves into the furnace
16 Furnace lining High temperature refractory fiber structure
17 Furnace door opening method Electrical up-down, spring compression sealing structure
18 Bogie in/out method 3KW cycloidal pin wheel reducer

Main Features

1) Hot sales Electric Bogie Hearth Heat Treatment Furnace has a shell of welded steel plates and sectional steel. The structure is of thick material.

2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.

3) Heating components: high temperature resistance alloy wires and strips.

4) Low noise, energy-friendliness, and stable performance.



5) Advanced CAD design.



6) Years of experiences in heat treatment process.

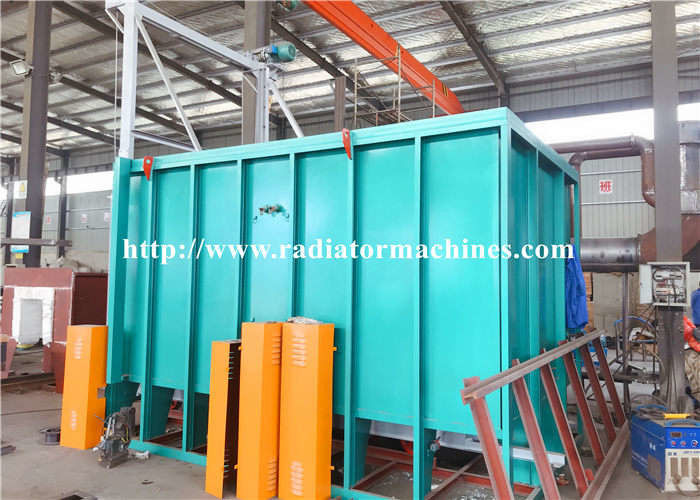

Pictures of resistance bogie hearth furnace



PLC Controlled Bogie Hearth Furnace For Heat Treatment ISO Certificated 0
