Metal Melting Furnaces
Created with Pixso. 1200Kg Natural Gas Hydraulic Tilting Metal Melting Furnaces
  • Name
  • Name

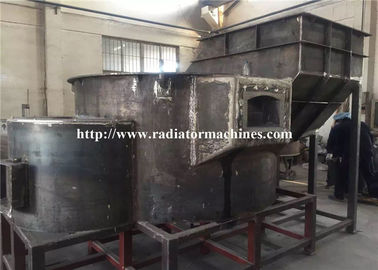

1200Kg Natural Gas Hydraulic Tilting Metal Melting Furnaces

Brand Name: WONDERY
Model Number: WR-RGQ-1200
MOQ: 1 Set
Price: Negotiable
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Jiangsu, China (Mainland)
Certification:
CE CERTIFICATE
Name:
Metal Melting Furnaces
Fuel Used:
Natural Gas, LPG Gas, Etc
Furnace Capacity:
1200 Kgs
Melting Cycle:
2 Hours
Casting Material Life:
5 Years On Average
Temperature Control Accuracy:
Plus/minus 2 Degree Celsius
Packaging Details:
Plywood case suitable for sea transportation
Supply Ability:
10 Sets per Month
Highlight:

Hydraulic Tilting Metal Melting Furnaces

,

Hydraulic Tilting aluminum Melting Furnaces

,

1200Kg aluminum Melting Furnaces

Product Description

1200Kg Natural Gas Aluminum Metal Melting Furnace Hydraulic Tilting Type



  Hot Sale 1200Kg Natural Gas Aluminum Metal Melting Furnace Hydraulic Tilting Type is used to melt aluminum

  scraps at a temperature of 850 degree celcius.



         Hot Sale 1200Kg Natural Gas Aluminum Metal Melting Furnace Hydraulic Tilting Type

Fuel
Natural gas
kcal/m3
8400
Natural gas consumption
m3/ton aluminum
80-90
Gas burner brand

Riello (or decided by customer)
Main performance
Crucible capacity
kg
1200
Melting rate
kg/hour
600
Melting cycle
hour
2
Working temperature
℃
850
Crucible brand

Vesuvius
Hydraulic system
components brand

domestic brand


    Model Table
Model
Crucible Capacity     (kg)
Melting Capacity (kg/h)
  Overall Dimension (mm)
WR-RGQ-350
350
150
1500*1600*1750
WR-RGQ-500
500
200
1670*1700*1800
WR-RGQ-800
800
300
1800*1800*1900
WR-RGQ-1000
1000
400
1800*2100*2400





                                                                           Packaging
Size
 various size
Weight
 2T to 6T
Packaging Details

The metal melting furnace is packed inside the plywood case.

And the feet of the case leaves space for forklift operation.


  Main Features

  1) The metal melting furnace is equipped with high quality Riello imported brand burner.

  2) The furnace is scientifically designed with a chimney.

  3) The furnace body is built with once-forming casting material which has a life of more than 3 years.

  4) The furnace is designed with an emergency outlet hole in case that the crucible breaks.

  5) The metal melting furnace is equipped with two thermal couples, 1 for measuring the hearth temperature and

      1 for measuring the liquid temperature.




   The metal melting furnace body is designed with an emergency outlet hole in case the crucible breaks.

1200Kg Natural Gas Hydraulic Tilting Metal Melting Furnaces 0
