| Machine Name: | Radiator Making Machine | Fin Type: | Wavy Louver Fin |
|---|---|---|---|
| Control System: | PLC And HMI | Weight: | 1800kg |
| Fin Foil Thickness: | 0.06mm | Feeding Speed: | 0-100M/Minute |
| High Light: | radiator production line,radiator tube making machine |
||

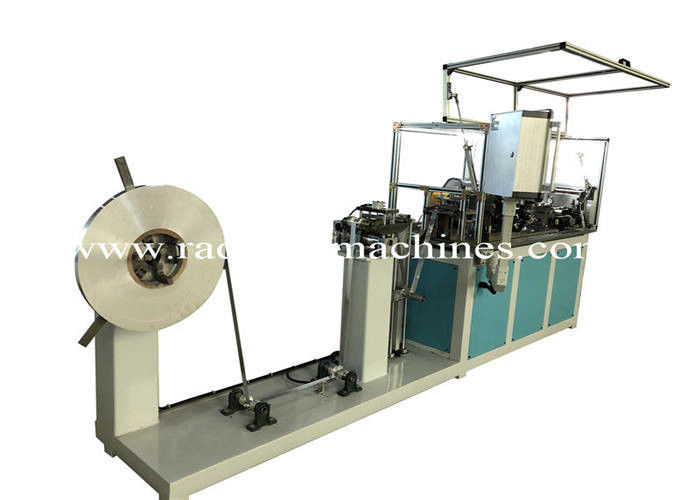

Hot Selling Fin Rolling Machine is used to produce heat exchange wavy fins with or without windows.
The machine is equipped with the following devices: decoiler, tensioning device, feeding, interval oil lubrication,
fin forming, correction and cuttig function, strip run-out detection, blockage detection device, cutting fault indicator,
fin forming unit overloading protection device, and fault indication light.
The fin making machine adopts PLC, inverter, AC servo control, and touch screen control. The parameters are
easily set through the touch screen.
|
SPECIFICATIONS FOR FiN ROLLING MACHINE
|
|||
|
Fin Forming Unit
|
Aluminum Foil Thickness
|
mm
|
min 0.06
|
|
Fin forming blade material
|
|
cobalt-containing high speed steel forged parts
|
|
|
Aluminum foil material
|
|
4343/3003/4343 H14 or H16
|
|
|
Fin forming blade life
|
|
more than 200 million fin convolutions
|
|
|
Fin Coil Information
|
Inner Diameter of Coil
|
mm
|
200
|
|
Outer Diameter of Coil
|
mm
|
max 1500
|
|
|
Productivity
|
Feeding speed
|
m/min
|
0-100
|
|
Fin convolution per minute
|
|
1000-4000
|
|
|
Cutting accuracy
|
|
+/-0 fin convolution
|
|
|
Machine Weight
|
Net Weight
|
kg
|
1800
|
|
Overall Dimension
|
L*W*H
|
mm
|
3500*900*1800
|
| NO. | Item | Specification | Origin | Remarks |
| 1 | PLC | XC3-14R-E | Delta, Taiwan | |
| 2 | Touch screen | TPC7062KS | Kunluntongtai | |
| 3 | Proximity switch | E2E-X5ME1 | Omron, Japan | |
| 4 | Inverter | Delta, Taiwan | ||
| 5 | Pneumatic components | AIRTAC, Taiwan | ||
| 6 | Servo motor | Delta, Taiwan | ||
| 7 | Servo driver | Delta, Taiwan | ||
Wuxi Wondery Trading Co., Ltd is a comprehensive equipment supplier cooperating with various domestic factories.
We can supply the complete raditor making machine line to the customer based on their specific needs.
Commissioning service is also provided. We have our export sales team which is highly efficient,
professional and cooperative.
Auto Radiator Making Machines
Brazing radiator making machines: fin machine, radiator core
builder machine, plastic tank clinching machine, radiator leak testing machine/leak detector, header and side
plate mold, continuous brazing furnace; mechanical radiator machines: high speed fin punching machine, fin die,
tube-to-fin expansion machine, tube-to-header expansion machine, plastic tank clinching machine, etc;
copper radiator making machine line:fully-automatic tube making machine, copper fin making machine,
gas-fired core body brazing furnace, header tinning furnace, manual core builder machine.
