|Machine Name:||Radiator Core Builder Machine||Layer:||1-5|
|Header To Header Distance:||500-1200 Mm||Header Length:||250-780 Mm|
|Follow-up Process:||Brazing Process||Power:||13 Kw|
core assembly machine,
radiator core builder

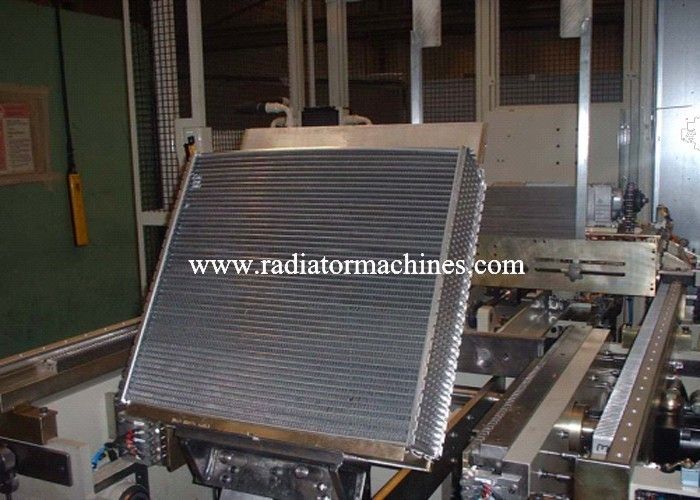

Servo Type Multirow Radiator Core Builder Machine for Heavy Truck Radiators
The radiator core builder machine is used to assemble multiple-row engineering radiators.
The radiator core builder machine is characterized of servo driving system, automatic servo flat tube
(slope silo and 2 tubes distributed per time) silo distribution, and electrical PLC control system.
The machine can assemble the flat tubes, fins, header plates, and side plates into a core through one
working cycle. The radiatore core assembly machine has the advantages of stable and reliable working performance,
easy operation, low noise, accurate positioning of flat tube center, and even distribution of fins.
The assembled condenser core has a high assembling
accuracy and a good appearance, which ensures a better brazing effect in the brazing furnace.
Technical Parameters of Radiator Core Builder Machine
Radiator core assembled per time: 1 piece
Center-to-center distance: decided by the customer
Flat tube row: 1-5 rows
Core height (header to header distance): min500mm to max 1200mm;
Core width(header length): min250mm to max 780mm
Core body thickness: 140mm
Power supply: 3-phase 4-wire ; 380V, 50HZ;
Rated power: ≤13Kw;
Center-to-center distance: customized;
Flat tube quantity per row: customized;
Equipment weight: about 3.5T;
Equipment overall dimension (for reference): 2800*2500*1800mm
Our company mainly supplies the radiator making machines for brazing radiators. The machines for
making brazing radiators include the following: aluminum radiator fin machine, radiator core builder
machine, radiator plastic tank crimping machine, air leak tester, header mold, plastic tank mold, etc.
The machines for making mechanical radiators include the following: high seed fin press, progressive fin die,
aluminum radiator tube fin expansion machine, aluminum radiator tube-header expansion machine, radiator
plastic tank clinching machine, hydraulic press, etc.
The radiator core builder machine is also called as radiator core assembly machine, aluminum radiator core assembly machine, core assembly table, core assembly machine, radiator core assembly machine.
We also supply manual radiator core builder machines.
