Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE
Model Number: KKJ
Payment & Shipping Terms
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: wooden case suitable for sea transportation
Supply Ability: 100 Set/Sets per Year
After-sales Service Provided: |
Field Installation, Commissioning And Training, Field Maintenance And Repair Service, No After-sales Service, Video Technical Support |
Warranty: |
1 Year |
Machine Name: |
Tube Header Expansion Machine |
Use: |
To Expand Tube Ends To Form A Tight Contact |
Application Field: |
Mechanical Radiator Making Line For Auto Industry Without Brazing |
Working Principle 1: |
Mechanical Expansion; Without Brazing Process |
Driving Force: |
Hydraulic And Mechanical |
Working Speed: |
Decided By Hole Quantity And Tube Length |
PLC Brand: |
Delta, Taiwan |
Automation Level: |
Semi-automatic |
Control Power: |
220V DC Power |
Electrical Control System: |
PLC And HMI |
Port: |
Shanghai |
After-sales Service Provided: |
Field Installation, Commissioning And Training, Field Maintenance And Repair Service, No After-sales Service, Video Technical Support |
Warranty: |
1 Year |
Machine Name: |
Tube Header Expansion Machine |
Use: |
To Expand Tube Ends To Form A Tight Contact |
Application Field: |
Mechanical Radiator Making Line For Auto Industry Without Brazing |
Working Principle 1: |
Mechanical Expansion; Without Brazing Process |
Driving Force: |
Hydraulic And Mechanical |
Working Speed: |
Decided By Hole Quantity And Tube Length |
PLC Brand: |
Delta, Taiwan |
Automation Level: |
Semi-automatic |
Control Power: |
220V DC Power |
Electrical Control System: |
PLC And HMI |
Port: |
Shanghai |

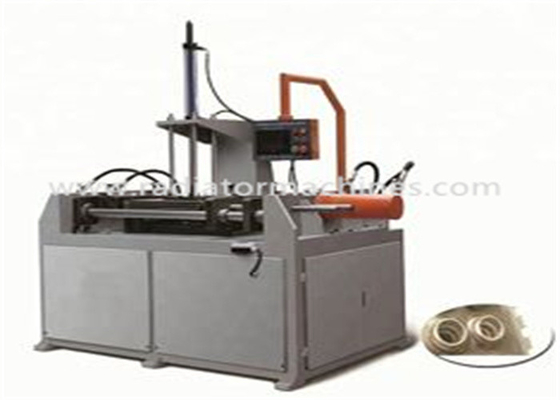

Hydraulic Type Mechanical Radiator Tube Header Expansion Machine
Application
The tube end expansion machine is used to expand ends of the aluminum tubes of
the radiator core to ensure a tight connection with the headers.
Main Features
There are both automatic and manual control modes available. The electrical control
system relies on a PLC controller to control the tube expansion process.
Technical Parameters
Round tube expanded per time: 1 piece
Aluminum tube specification: φ5--φ12mm
Radiator tube holes per row:≤20 holes (decided by the customer)
Processing time: 10-30 seconds
Motor power: 7.5kw
Hydraulic system pressure: 5-16Mpa
Overall dimension: 2800*1450*1650mm
Equipment weight: 1.5T
