Fully Auto Aluminum Side Plate Radiator Making Machine for Brazing Radiators

Fully Auto Aluminum Side Plate Radiator Making Machine for Brazing Radiators

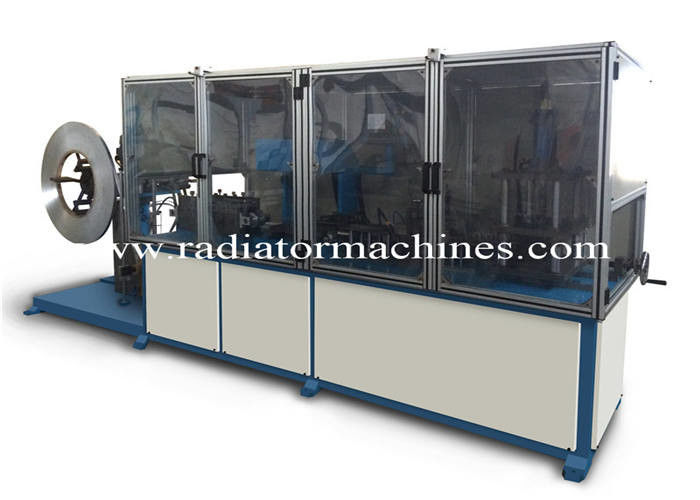

Fully Auto Aluminum Side Plate Radiator Making Machine for Brazing Radiators Fully Auto Aluminum Side Plate Radiator Making Machine for Brazing Radiators

Large Image :  Fully Auto Aluminum Side Plate Radiator Making Machine for Brazing Radiators

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE
Model Number: BBJ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case suitable for sea transportation
Delivery Time: 90 Days
Supply Ability: 100 Set/Sets per Year
Detailed Product Description
Machine Name: Radiator Making Machine Aluminum Strip Width: 22-80mm
Power: 24kw Overall Size: 7500*1200*2200mm
Aluminum Coil: 1 Coil A Time Side Plate Edge Folding: 8-10mm
High Light:

radiator production line

,

radiator tube making machine



       Fully Auto Aluminum Side Plate Radiator Making Machine for Brazing Radiators

1. Application

The side plate radiator making machine is used to make the side plate automatically from the aluminum strip

through the procedures of straightening, hole punching, bending, end forming and cutting.





2. Main Technical Parameters

2.1 aluminum strip coil size: ID Ф400~Ф500mm; OD: max Ф1100mm;

2.2 aluminum strip width: 22-80mm;

2.3 length range: 200-1200mm;

2.4 feeding speed: 20m/min;

2.5 aluminum strip coil loaded per time: 1 coil;

2.6 processing speed: 3-4 side plates per min (length at 600mm );

2.7 edge folding height: 8-10mm;

2.8 equipment punching force: about 5T for work position 1,2, and 4; about 30T for work position 3;

2.9 power supply: AC380V 50Hz

2.10 equipment power: about 24.0kw

2.11 equipment size: 7500*1200*2200mm

2.12 equipment weight: about 10T





3. Components List of Side Plate Radiator Making Machine

Main Components



Item Brand
PLC Siemens
Servo motor and servo magnifier Siemens
Touch screen Siemens
Intermediate relay Schneider
Proximity switch Omron
Circuit breaker Schneider
Contactor Schneider
Switch power supply Schneider
Linear rail and ball screw TBI
Solenoid valve AIRTAC
Pneumatic cylinder AIRTAC
Air and water separator AIRTAC
Hydraulic system Domestic brand



4. Company Info

Wuxi Wondery Trading Co., Ltd is a comprehensive fin radiator making machine supplier. Our company

supplies the following machines: aluminum radiator fin machine, aluminum radiator core builder machine, aluminum

radiator plastic tank clinching machine, aluminum radiator brazing furnace, aluminum radiator leak testing machine,

radiator header plate mold, radiator side plate mold, plastic tank die, etc.



Decoiler for side plate radiator making machine:





Fully Auto Aluminum Side Plate Radiator Making Machine for Brazing Radiators 0
