Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE
Model Number: SSKY-YY
Payment & Shipping Terms
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: wooden case suitable for sea transportation
Delivery Time: 90 Days
Supply Ability: 100 Sets per Year
Name: |
Radiator Plastic Tank Crimping Machine |
Type: |
4 Sides |
Drive Mode: |
Hydraulic And Pneumatic |
Cycle: |
About 40 Cores Per Hour |
Weight: |
3200 Kgs |
Application: |
Auto Radiator |
Name: |
Radiator Plastic Tank Crimping Machine |
Type: |
4 Sides |
Drive Mode: |
Hydraulic And Pneumatic |
Cycle: |
About 40 Cores Per Hour |
Weight: |
3200 Kgs |
Application: |
Auto Radiator |
4 Side Radiator Plastic Tank Crimping Machine Hydraulic and Pneumatic
Application
The radiator plastic tank crimping machine is used for crimping the teeth of the header plates and locking the plastic tank
tight to the core body. There is a sealed space between the crimped plastic tank, sealing gasket and header plate. This
servo type plastic tank crimping machine is used to handle products of various specifications. The crimping set moves step by step.
Company Main Products
Our company mainly supplies the radiator making machines such as radiator aluminum fin machine, radiator core builder machine,
radiator plastic tank crimping machine, air leak tester, header mold, plastic tank mold, etc.
Technical Parameters
| Item | Data |
| Header to header distance | 350-950mm |
| Crimping method | Stepping way |
| Header Width | 30-120mm |
|
Suitable header plate length
|
100-800mm |
| Production Capacity | About 40 cores/hour |
| Working Force | hydraulic + pneumatic system |
| Machine dimension | 2200 x 2000 x 1900mm (L,W,H) |
| Machine weight | 3200 kgs |
Main Component Origin
|
PLC, SIEMENS brand; HMI, SIEMENS brand; Servo system, SIEMENS brand; Buttons, SCHNEIDER or OMRON; Pneumatic cylinders: FESTO brand or SMC brand(except two special cylinders which are not available by FESTO or SMC brand); Intermediate relay: SCHNEIDER; Hydraulic system, quality domestic brand |

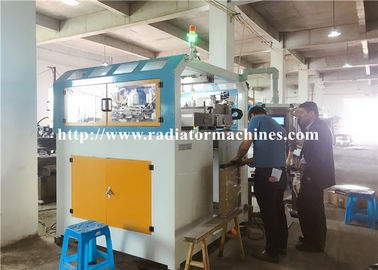

Picture of Radiator Plastic Tank Clinching Machine (Servo and Pneumatic type)
