Detailed Product Description
Machine Name: Radiator Making Machine Flat Tube Width: 16mm
Weight: 2.8Ton Tube Cut Per Time: 2 Pcs
Warranty: 1 Year Cutting Length: Min 100mm

 Aluminum Tube Straightening and Cutting Machine, Tube Straightener Machine

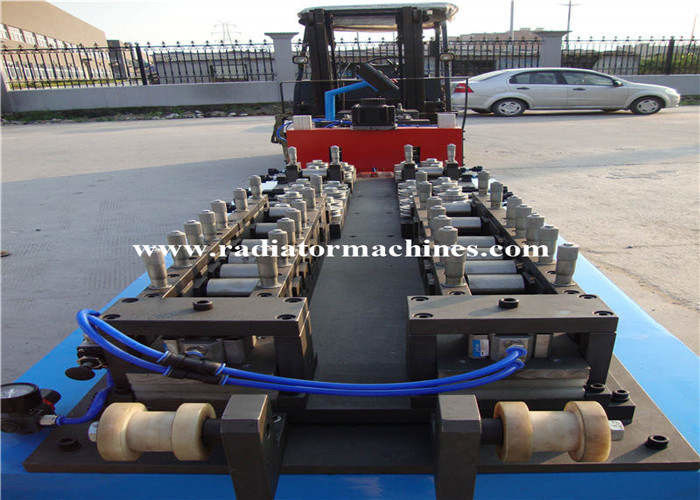

1. Main Application
The a
luminum tube straightening and cutting machine is used for straightening and cutting aluminum harmonica tubes of parallel flow condensers. The
aluminum tube straightening and cutting machine is driven by a servo motor. The raw material is conveyed by a precision linear guidance rail. Cutting of the pipes is conducted through a revolving knife or a linear knife.

The aluminum tube straightening and cutting machine is also equipped with a fully-automatic decoiler.
Coil inner diameter: 450-500mm; width: 300-330mm; decoiler bearing weight: 300kg;
Coil feeding method: manually place the coil on the decoiler, and screw up the coil expansion core;
Decoiler motor power: 0.75kw
The decoiling method is stable and reliable. The equipment has a high cutting accuracy and a fast working speed.

The aluminum tube straightener is able to cut different pipes by adjusting the distance of the straightening rolling wheels. It takes twice or multiple charges to cut the aluminum tube when the cut-to-length is very large.



2. Main technical parameters

Production rate: 2.5 seconds per time (based on cut-to-length at 650mm)

Tube to be straightened and cut per time: 2 tubes;

Flat aluminum tube thickness: 2mm;

Flat aluminum tube width: 12-32mm

Cut-to-length: larger than 100mm

Feeding length of the aluminum tube: 200-900mm (twice or multiple charges to cut the aluminum tube when the cut-to-length is very large)

Length straightening accuracy <±0.2mm

Width straightening accuracy:±0.04mm/850nn

Thickness straightening accuracy:±0.02/850mm

Replacement time of coils: 3min

Preparation time for cutting tubes with a different width :≤15min

Cutting knife replacement time:≤5mins

Air source pressure: 0.6Mpa

Equipment weight: 2.8T

Main Machine dimension: 4500×850×1300mm

Decoiler overall dimension: 1400×1300×1800mm ( 2 sets)

Equipment power: 2.5KW

Floor area: 14M (L)*1.5M (W)







3. Structural Introduction



3.1 decoiler



Size: Φ1800*1700 (H)mm

Coil inner dia: 450 mm -500 mm;

Width:300-330 mm;

Loading capacity:300kg



3.2 Straightening device



Structure: roller leveling alignment in width and length direction

Adjustment method: by adjusting the straightening wheels



3.3 Pneumatic necking device



It uses air cylinder twitch type, combining tooling to reduce the end of the flat tube.





3.4 Feeding device;



Feeding device: servo motor driven ball screw; feed speed is high, and with high feed precision.

Feed speed: 600 mm/s.

Feed precision: servo control 0.1 mm.

Component configuration: Delta servo motor and servo system





3.5 Clamping device

Structure: adopting the cylinder push plate to realize clamping, each flat tube is clamped by different cylinder.

Component: Cylinder



3.6 Cutting device



Structure: cylinder clamping flat tube, the pneumatic hob,

Component: Taiwan TBI company linear guide device.



3.7 Machine main body

Including: Delta touch screen





4. Main Parts of Machine

Decoiler -2sets

Straightening device (lengthways) -2 sets

necking device - 2 sets

feeding device - 2 sets

clamping device -2 sets

cutting device -2 sets

machine main body- 1set

material table- 1set



5.Configuration List



Touch screen, Delta, Taiwan;

PLC, Delta, Taiwan;

motor, Delta, Taiwan;

Motor driver, Delta, Taiwan;

Push buttons, Schneider, Germany;

Relay, Schneider, Germany;

Proximity switch, Omron, Japan;

Screw, TBI, Taiwan;

Pneumatic cylinder: SDPC, China;



6. Accessories with Machine

cutter, 8 pcs;

synchronization belt, 1 pc;

Tool, 1 set;







Aluminum Tube Straightening and Cutting Machine, Tube Straightener Machine
