Electric CAB Aluminium Radiator Brazing Furnace 6 - 16 M Brazing Area

Electric CAB Aluminium Radiator Brazing Furnace 6 - 16 M Brazing Area

Brand Name:	WONDERY
Model Number:	NB
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	90 Days

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China (Mainland)

Certification:

Machine Name:

Aluminum Radiator Brazing Furnace

Energy:

Electric

Atmosphere:

Nitrogen

Muffle Length:

6 - 16 M

Mesh Belt Speed:

200-1200mm

Brazing Temperature:

630 Degree Celcius

Packaging Details:

nude package duly fixed inside the container; suitable for sea transportation

Supply Ability:

40 Sets per Year

Highlight:

aluminum brazing furnace

continuous brazing furnace

Product Description

Electric CAB Aluminium Radiator Brazing Furnace 6 - 16 M Brazing Area

Application

The brazing furnace works under the nitrogen protective atmosphere and employs non-erosive brazing material. The continuous brazing furnace is applied to brazing of aluminum intercooler, water tank, automobile air conditioning condenser, evaporator, aluminum oil cooler, etc.

Model Table

Model	Rated heating power			Temperature	Working size (mm)	Brazing oven effective length	Total length
Model	Degreasing Oven	Drying Oven	Brazing Oven	Temperature	Working size (mm)	Brazing oven effective length	Total length
NB-450-200-6M	Non	50KW	150KW	Brazing temperature: 630°C; Drying temperature: 250°C Degreasing temperature: 180°C	450×200	6m	23.5m
NB-600-200-6M	Non	60KW	180KW		600×200	6m	23.5m
NB-800-200-6M	Non	70KW	210KW		800×200	6m	23.5m
NB-1000-200-6M	Non	85KW	245KW		1000×200	6m	23.5m
NB-600-200-8M	50KW	70KW	240KW		600×200	8m	37.7m
NB-800-200-8M	60KW	85KW	280KW		800×200	8m	37.7m
NB-1000-200-8M	76KW	108KW	330KW		1000×200	8m	37.7m
NB-800-200-11M	85KW	120KW	380KW		800×200	11m	48.4m
NB-1000-200-11M	108KW	150KW	450KW		1000×200	11m	48.4m
NB-1200-200-11M	120KW	170KW	520KW		1200×200	11m	48.4m
NB-1200-200-16M	150KW	220KW	760 KW		1200×200	16m	65.0m
NB-800-220-8M	70KW	85KW	280KW		800×220	8m	38.9m

Note: The heating furnace (brazing furnace section of the heat treatment line) is 4m, 6m, 6m, 8m, 11m or 12m long based on the productivity of the line required by the customer.

Company Information

Our company mainly supplies the radiator making machines such as radiator aluminium brazing furnace, aluminum fin machine, core builder, radiator plastic tank crimping machine, air leak tester, header mold, plastic tank mold, etc.

Equipment Flow

The aluminum parts fitted with fixtures are manually placed at the entrance and transmitted by the chain rod to pass through spray chamber, air blowing, drying oven, front curtain chamber (nitrogen gas inlet), preheating oven, brazing oven (nitrogen gas inlt), slag cleaning chamber (nitrogen gas preheating), dry cooling chamber, rear curtain chamber (nitrogen gas inlet), and finally air blast chamber. The parts are loaded manually.

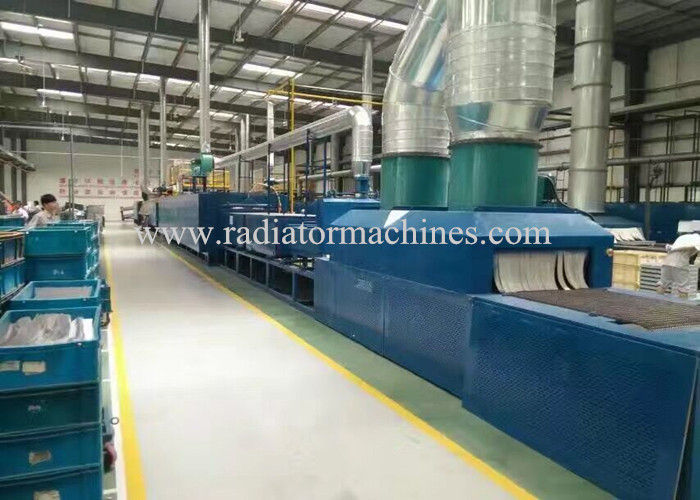

Electric CAB Aluminium Radiator Brazing Furnace 6 - 16 M Brazing Area 0
