Product Details:
Payment & Shipping Terms:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Machine Name: | Hot Seller Fully-automatic U-shape Hairpin Bender |
|---|---|---|---|
| Use: | Hairpin Bender | Application Field: | HVAC System; Air-conditioner |
| Type: | Servo Or Hydraulic | Color: | Customer's Requirement |
| Weight: | 10TON | Power: | 7.5KW |
| Control System: | PLC | Voltage: | Customer's Requirement |
| Port: | Shanghai | ||
| High Light: | tube bending machine,copper tube bending machine |
||
Hot Selling Fully-automatic U-shape Hairpin Bender
Product Description

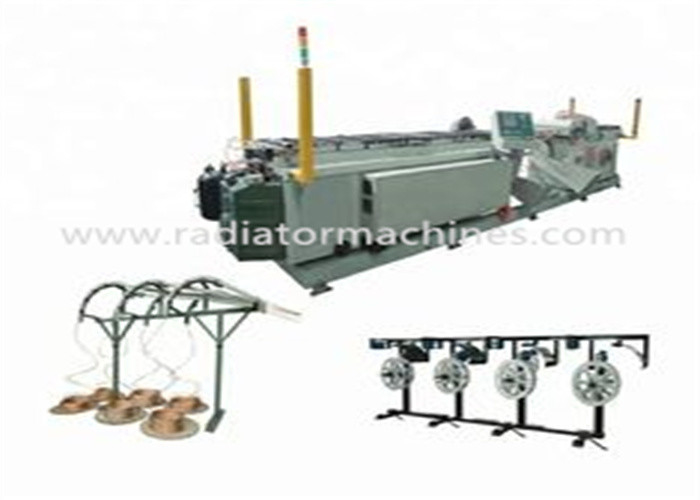

Fully-automatic U-shape Hairpin Copper Tube Bending Machine/Hairpin Tube Bender
The machine is specially used for producing long U-shape hairpin copper tube on a large scale.
|
Machine Type |
Fully-automatic long U-shape hairpin bending machine |
|
|
Copper tube specification |
Outer diameter(mm) |
5~12.7mm |
|
Wall thickness (mm) |
0.3~0.41 |
|
|
U-tube tube produced per time |
1~6/1~7 |
|
|
U-tube length (mm) |
Min.200~Max.1250/1650/2100/2600 |
|
|
Working cycle (s/times based on 1m length) |
≤ 15 |
|
|
Coil stand |
Gantry type/ double(single) working position Electrical driven |
|
|
Cutting motor power (kw) |
1.5 |
|
|
Oil pump power (kw) |
7.5 |
|
|
Hydraulic oil |
ISOVG32 (winter)/ISOVG46(summer) |
|
|
Lubrication oil |
Mechanical oil ISOVG22-32 |
|
Packaging & Shipping
The machine is packed in plywood cases which can be moved through forklift by its feet.
The nearest sea port is Shanghai port which is the largest and most convenient port over China.
The delivery time is 60 days after receipt of down payment.
The machine can be loaded into normal container (20GP or 40GP).
Our Services
Our company provides test-running service to the customers. We would send our engineers to the buyer's site for installation, test-running and training service. The customer should bear the following costs: round-way air ticket fare, and board and lodging, and daily allowance.
The warrantee period is 1 year after completion of test-running.
We provide technical support life-time.
Company Information
Wuxi Wondery Trading Co., Ltd is a comprehensive equipment supplier cooperating with various domestic factories. We can supply the heat exchanger production line for auto radiators, condensers, oil-coolers, heaters, or other heat exchanger products, and HVAC condensers and evaporators.
Auto Condenser Production Line
Including: collecting pipe single-punch mold; collecting pipe automatic forming machine; aluminum one-end or two-end chamfering machine; semi-automatic core builder; condenser
side plate forming machine; collecting pipe slitting machine; flat tube straightening and cutting machine; aluminum brazing furnace.
Auto Radiator Production Line
Including: machines for brazing type radiator: fin making machine, radiator core assembly machine, plastic tank crimping machine, leak detector, header and side plate mold, and brazing furnace; machines for mechanical type radiators: fin mold, tube-to-fin expansion machine,
tube-to-header expansion machine, plastic tank crimping machine, etc;
Evaporator Production Line
Including: fin mold (single-punch type or progressive type); serpentine tube bending machine; evaporator assembly table, etc;
HVAC Evaporator and Condenser Production Line
Including: heat exchanger bending machine; Long/short U-tube bending machine; copper tube straightening and cutting machine; fin press line; progressive fin mold; vertical/horizontal expansion machine; others.
Other Heat Exchanger Making Machines
Machines and/or molds for similar heat exchanger products and their accessories
