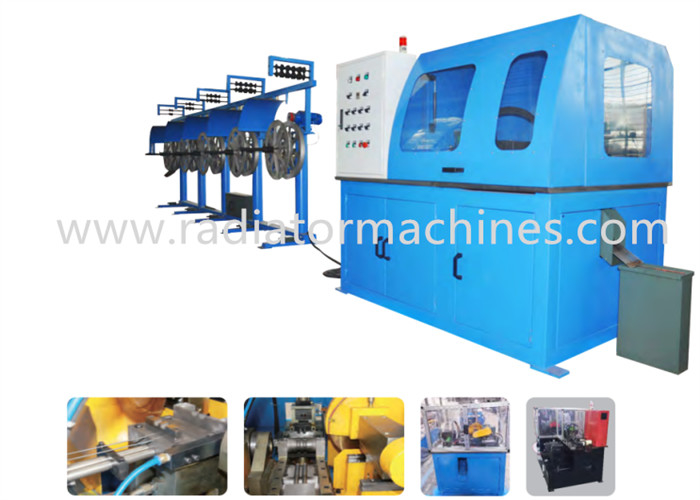

Fully Automatic HVAC Equipment Return Bender Machine

Fully Automatic HVAC Equipment Return Bender Machine

Fully Automatic HVAC Equipment Return Bender Machine
Fully Automatic HVAC Equipment Return Bender Machine

Large Image :  Fully Automatic HVAC Equipment Return Bender Machine

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE
Model Number: WGJ
Payment & Shipping Terms:
Minimum Order Quantity: 50 Piece/Pieces
Price: Negotiable
Packaging Details: wooden case/carton suitable for sea transportation
Supply Ability: 10000 Piece/Pieces per Month
Detailed Product Description
Name: Return Bender Bend Direction: Horizontal Or Vertical
Max Pipe Diameter: φ22mm Application: Condenser, Evaporator, Heat Exchanger
Copper Pipe Number: 5,3,2 Work Efficiency: Customized
High Light:

hvac system equipment

,

straightening and cutting machine

Fully Automatic HVAC Equipment Return Bender Machine



1. Introduction

Return Bender is a key equipment for return bender production. The return

bender machine is used to open, straighten, cut and bend coil copper pipe

into return bend, mainly used for production of air-condition condenser and

evaporator, water heater, etc. This HVAC equipment is working at automatic mode.



2. Working Principle



The return bender connects two legs of hairpin bender by brazing process

for heat exchanger coil production. The return bender machine is of high

efficiency. It has 3pcs/cycle and 5ps/cylce type according to different tube size.

The return U tube bending machine is a fully automatic machine.



3. Technical Parameters

Item

Specification



Pipe Diameter(mm) Ф5-Ф9.52 Ф12.7 Ф15.88-Ф22
Bend Direction

Horizontal or veritical



Thickness Range(mm)

Customized



Center Distance(mm)

According to the fin drawing



Height of Bent Pipe (mm)

Customized



Number of copper pipe 5 3 2
Feeding Mode Outside or inside pump type
Work Effciency (S) 9-12

Hydraulic Pressure (Mpa)



<7





4. How does a return bender machine works?

4.1 first load the coil tube.

4.2 Feeding mechanism works.

4.3 Clamping mechanism works.

4.4 Mandrel enters.

4.5 Spary the oil mist.

4.6 Bend the return U bend.

4.7 Pull back the mandrel.

4.8 Cut the bended return U bend.

4.9 Unloading the return bender.

4.10 Repeat the above cycle.



5. Main Components

Item Brand
PLC Mitsubishi or Omron
Pneumatic components SMC, Airtac, Ningbo Yongxing and other high-end brands
Hydraulic system Yuken
Low voltage electrical components Schneider, Shanghai sonneng, Omron, Mitsubishi, Fuji, etc
