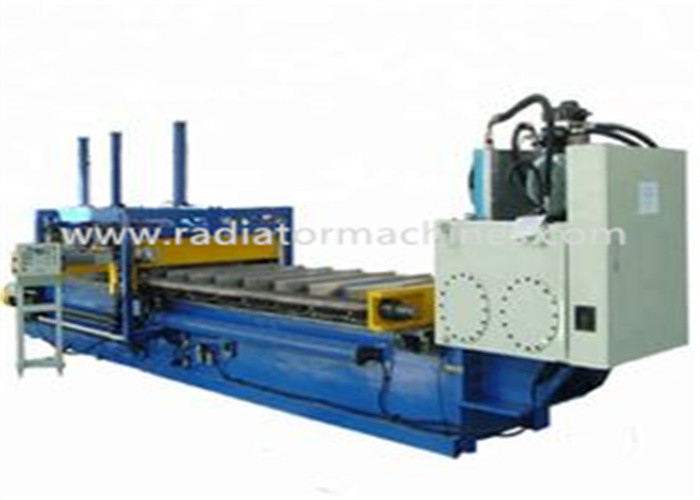

Horizontal Tube Expanding Machine CNC Type With Numerical Control

Product Details

Place of Origin: Jiangsu, China (Mainland)

Brand Name: WONDERY

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1 Set/Sets

Price: Negotiable

Packaging Details: wooden case suitable for sea transportation

Supply Ability: 100 Set/Sets per Year

Get Best Price
Product Details
Highlight:

heat exchanger tube expander

,

vertical expander machine

Machine Name:
Numerical Control Horizontal Tube Expanding/Expansion Machine
Use:
Expand U-tubes/straight Tubes
Application Field:
HVAC System; Air-conditioner
Type:
CNC
Color:
Customer's Requirement
Weight:
15TON
Power:
7.5KW
Voltage:
380V 50Hz 3Phase/Customized
Warranty:
12 Months
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Port:
Shanghai
Machine Name:
Numerical Control Horizontal Tube Expanding/Expansion Machine
Use:
Expand U-tubes/straight Tubes
Application Field:
HVAC System; Air-conditioner
Type:
CNC
Color:
Customer's Requirement
Weight:
15TON
Power:
7.5KW
Voltage:
380V 50Hz 3Phase/Customized
Warranty:
12 Months
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Port:
Shanghai
Product Description

Numerical Control Horizontal Tube Expanding Machine/Tube Expander



1. The machine can expand one side of the tube (tube inside and tube mouth) as

well as edge-fold. This machine is used to expand U-tubes.

2. The machine can expand the tube inside and mouth and edge-fold the tubes on one side, and on the other side expand the tube mouth and

edgefold the tubes automatically. This machine is used for automatic bending

of straight tubes.



Machine Type

 Numerical control horizontal tube expanding machine

Heat

exchanger specification

Normal fin thickness (mm)

12.7mm,19.05mm,21.65mm,22mm, 32.91mm

Length (mm)

250~3000

Row quantity

1~8

Max hole quantity per row(based on hole-to-hole distance 25mm)

64

Expansion speed

Fast speed (m/min)

>4



Slow speed(m/min)

>0.7

Oil pump motor power (kw)

11/15

Oil cylinder diameter(mm)

160/180/200mm

Hydraulic oil

ISOVG32(winter)/ISOVG46(summer)

Lubrication oil

Mechanical oil ISOVG22-32



 Horizontal Tube Expanding Machine CNC Type With Numerical Control 0

Packaging & Shipping



The machine is packed in plywood cases which can be moved through forklift by its feet.

The nearest sea port is Shanghai port which is the largest and most convenient port over China.

The delivery time is 60 days after receipt of down payment.

The machine can be loaded into normal container (20GP or 40GP).

Horizontal Tube Expanding Machine CNC Type With Numerical Control 1

Our Services



Our company provides test-running service to the customers. We would send our engineers to the buyer's site for installation, test-running and training service. The customer should bear the following costs: round-way air ticket fare, and board and lodging, and daily allowance.

The warrantee period is 1 year after completion of test-running.

We provide technical support life-time.

Company Information



Wuxi Wondery Trading Co., Ltd is a comprehensive equipment supplier cooperating with various domestic factories. We can supply the heat exchanger production line for auto radiators, condensers, oil-coolers, heaters, or other heat exchanger products, and HVAC condensers and evaporators.



Auto Condenser Production Line

Including: collecting pipe single-punch mold; collecting pipe automatic forming machine; aluminum one-end or two-end chamfering machine; semi-automatic core builder; condenser

side plate forming machine; collecting pipe slitting machine; flat tube straightening and cutting machine; aluminum brazing furnace.



Auto Radiator Production Line

Including: machines for brazing type radiator: fin making machine, radiator core assembly machine, plastic tank crimping machine, leak detector, header and side plate mold, and brazing furnace; machines for mechanical type radiators: fin mold, tube-to-fin expansion machine,

tube-to-header expansion machine, plastic tank crimping machine, etc;



Evaporator Production Line

Including: fin mold (single-punch type or progressive type); serpentine tube bending machine; evaporator assembly table, etc;





HVAC Evaporator and Condenser Production Line

Including: heat exchanger bending machine; Long/short U-tube bending machine; copper tube straightening and cutting machine; fin press line; progressive fin mold; vertical/horizontal expansion machine; others.



Other Heat Exchanger Making Machines

Machines and/or molds for similar heat exchanger products and their accessories

Horizontal Tube Expanding Machine CNC Type With Numerical Control 2
