7.5 KW Metal Punch Die , High Speed Punching Machine Customized Voltage

Certification
Good quality Radiator Core Builder Machine for sales
Good quality Radiator Core Builder Machine for sales
I'm Online Chat Now

7.5 KW Metal Punch Die , High Speed Punching Machine Customized Voltage

China 7.5 KW Metal Punch Die , High Speed Punching Machine Customized Voltage supplier

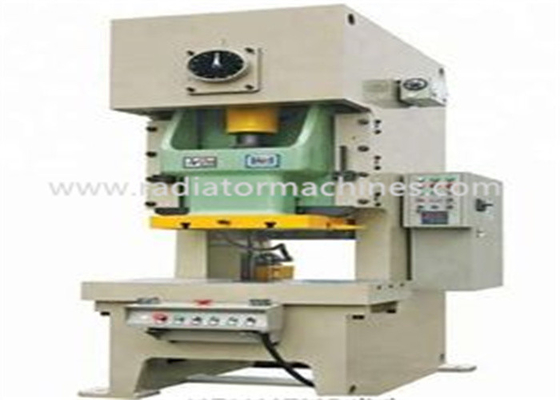

Large Image :  7.5 KW Metal Punch Die , High Speed Punching Machine Customized Voltage

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: wooden case suitable for sea transportation
Supply Ability: 100 Set/Sets per Year
Contact Now
Detailed Product Description
Condition: New CNC Or Not: CNC
Power Source: Mechanical Voltage: Local Voltage
Power(W): 7.5 KW Weight: 16 Ton
Dimension(L*W*H): Machine Size Warranty: 1 Year
Machine Name: Air-conditioner Fin Press Line Fin Use: HVAC System; Air Conditioner Fin
Fin Type: Press Fin Working Principle: Fin Pressing System
Voltage: According To Buyer's Requirement Color: According To Buyer's Requirement
Fin Material: Copper Or Aluminum Package: Nude Package Or Plywood Package
Automation Level: Fully-automatic Fin Mold Blade Material: SKD11
After-sales Service Provided: Engineers Available To Service Machinery Overseas Port: Shanghai



Product Description





Fully-automatic Air-conditioner Fin Press Line

 The fin press line is an automatic fin production line based on the latest Taiwan technology.
The fin press line consists of aluminum foil decoiling mechanism (photo-electric automatic decoiling), aluminum foil protection device, aluminum foil oiling device,

single and double jump  latest lownoise high speed precision press machine, high speed

precision fin mold, latest guide bar type fin stacking device, waste material collection device,

 and electrical control system with HMI.

The fin press line can be used to produce the following fins:
Φ5*19.5*11.2*(6-24)R.
Φ7*21.0*12.7 or 20.5*12.7(12-24)R.
Φ7.94*22.0*19.05*(12-18)R.
Φ9.52*25.4*22.0or25.0*21.65*(12-18)R.
Φ10.2*20.0*15.5*(12-24)R.
Φ12.7*31.75*27.5*(6-12)R.
Φ15.88*38.0*32.91 or 38.1*22.2(6-12)R.
Φ19.4*50.8*38.1(4-8)R.
Φ20*34.0*29.5*(6-12)R.Φ25*(4-6)R.



 7.5 KW Metal Punch Die , High Speed Punching Machine Customized Voltage













Packaging & Shipping





The machine is packed in plywood cases which can be moved through forklift by its feet.

The nearest sea port is Shanghai port which is the largest and most convenient port over China.

The delivery time is 60 days after receipt of down payment.

The machine can be loaded into normal container (20GP or 40GP).



7.5 KW Metal Punch Die , High Speed Punching Machine Customized Voltage



Our Services



Our company provides test-running service to the customers. We would send our engineers to the buyer's site for installation, test-running and training service. The customer should bear the following costs: round-way air ticket fare, and board and lodging, and daily allowance.

The warrantee period is 1 year after completion of test-running.

We provide technical support life-time.







Company Information





Wuxi Wondery Trading Co., Ltd is a comprehensive equipment supplier cooperating with various domestic factories. We can supply the heat exchanger production line for auto radiators, condensers, oil-coolers, heaters, or other heat exchanger products, and HVAC condensers and evaporators.



Auto Condenser Production Line

Including: collecting pipe single-punch mold; collecting pipe automatic forming machine; aluminum one-end or two-end chamfering machine; semi-automatic core builder; condenser

side plate forming machine; collecting pipe slitting machine; flat tube straightening and cutting machine; aluminum brazing furnace.



Auto Radiator Production Line

Including: machines for brazing type radiator: fin making machine, radiator core assembly machine, plastic tank crimping machine, leak detector, header and side plate mold, and brazing furnace; machines for mechanical type radiators: fin mold, tube-to-fin expansion machine,

tube-to-header expansion machine, plastic tank crimping machine, etc;



Evaporator Production Line

Including: fin mold (single-punch type or progressive type); serpentine tube bending machine; evaporator assembly table, etc;





HVAC Evaporator and Condenser Production Line

Including: heat exchanger bending machine; Long/short U-tube bending machine; copper tube straightening and cutting machine; fin press line; progressive fin mold; vertical/horizontal expansion machine; others.



Other Heat Exchanger Making Machines

Machines and/or molds for similar heat exchanger products and their accessories

 7.5 KW Metal Punch Die , High Speed Punching Machine Customized Voltage





FAQ


1)  Q: What is the power supply of the machine?

      A:  The power supply of the machine is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer so that the machine is ready for use at the end user's site.

2) Q: What information should the customer provide to get an accurate quotation from us?

     A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.

3) Q: What is the payment term?

     A: The payment term is 30% down payment, and 70% before delivery (T/T mode).

4) Q: What is the delivery time?

     A: The delivery time of the machine is 60 days after receipt of down payment.

5) Q: What is the warrantee period of the machine?

     A: The warrantee period is 1 year after completion of test-running.
