Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: ISO CERTIFICATE
Model Number: RT2-280-11
Payment & Shipping Terms
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: nude package or steel case package, suitable for sea transportation
Delivery Time: 60 Days
Supply Ability: 100 Set/Sets per Year
Name: |
Bogie Hearth Furnace |
Energy Medium: |
Electric Resistance |
Effective Size: |
2500×2000×2000mm |
Heating Element Connection: |
Y |
Heating Element: |
0Cr27AL7Mo2 |
Rated Temperature: |
1150℃ |
Name: |
Bogie Hearth Furnace |
Energy Medium: |
Electric Resistance |
Effective Size: |
2500×2000×2000mm |
Heating Element Connection: |
Y |
Heating Element: |
0Cr27AL7Mo2 |
Rated Temperature: |
1150℃ |
Trolley Type Resistance Bogie Hearth Furnace is state standard energy saving cyclic furnace. It is a fiber structure saving
60% power consumption. It is among the first manufacturers to employ compound high aluminum porcelain nail group,
trolley anti-explosion sealing bricks, automatic sealing trolley and furnace door, and integrated rail. This series furnace is
applicable to the quenching, annealing and aging treatment of high chrome parts, high manganese cast parts, cast iron,
rolls, steel balls, 45# steel parts and others.
Main Technical Parameters of Heat Treatment Furnace
| No. | Item | Technical Parameters |
| 1 | Rated power | 280kW+5% (1-100%) adjustable |
| 2 | Power supply | 380V,3P,50Hz |
| 3 | Rated temperature | 1150℃ |
| 4 | Empty furnace temperature rising speed | ≤2.5h to reach 900℃ |
| 5 | Control zone | 2 zones for temperature and 2 other points for measuring the temperature, 4 thermal couples in total |
| 6 | Effective working size | 2500×2000×2000mm (L*W*H) |
| 7 | Heating element connection | Ｙ |
| 8 | Temperature uniformity | ±5℃ |
| 9 | Instrument control accuracy | ±2℃ |
| 10 | Empty furnace power consumption | ≤18% |
| 11 | Temperature control method | SCR, PID regulator, Shimaden temperature controller, over-temperature alarm |
| 12 | furnace surface temperature rise | ＜45℃+ room temperature |
| 13 | Heating element material | 0Cr27AL7Mo2 (strip) 5-wall heating |
| 14 | Bogie face plate | Cr25Ni20 |
| 15 | Loading method | Product loaded on the bogie, and then bogie moves into the furnace |
| 16 | Furnace lining | High temperature refractory fiber structure |
| 17 | Furnace door opening method | Electrical up-down, electric push rod compression sealing structure |
| 18 | Bogie in/out method | 3KW cycloidal pin wheel reducer |
| 19 | Loading capacity | 5Ton |
Temperature Control System
Temperature control: the bogie hearth furnace adopts Shimaden intelligent temperature controller (Japan brand) to
control the temperature which has self-tuning function to calculate the ideal PID parameter and achieve a temperature
stability. The heat treatment furnace has 2 temperature control zones for controlling the linkage between the temperature
and the motor movements.
Each zone of the bogie hearth furnace is set with an over-temperature alarm. When the furnace works, the heating loop works
according to the set program of the temperature controller.
The control actuation system of the bogie hearth furnace is a large-power triggering one complete with a radiator and
an air cooling system. The heating loop is equipped with ammeter, voltmeter, heating element on-off indicator, power-on
interlock protection, and safe earthing measures.
1) The trolley type bogie hearth furnace has a shell of welded steel plates and sectional steel. The structure is of thick material.
2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with
the traditional brick hearth.
3) Heating components: high temperature resistance alloy wires and strips.
4) Low noise, energy-friendliness, and stable performance.
5) Advanced CAD design.
6) Years of experiences in heat treatment process.

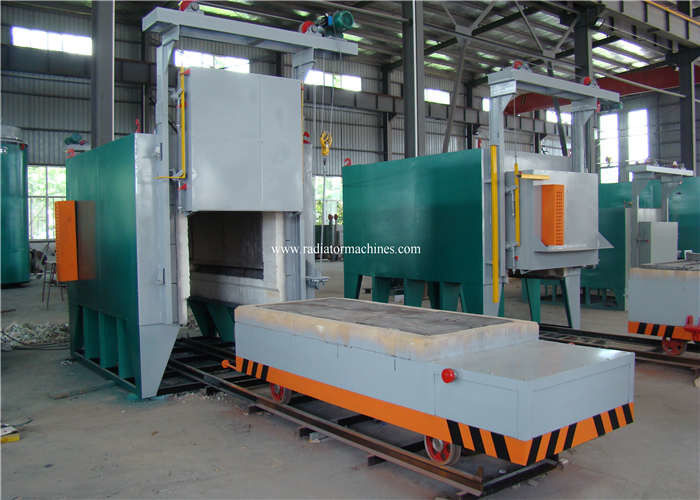

Pictures of Electric Resistance Bogie Hearth Furnace
