Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: ISO CERTIFICATE
Model Number: RTQ-1300*1000*750mm
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: nude package or steel case package, suitable for sea transportation
Delivery Time: 60 Days
Supply Ability: 100 Sets per Year
Name: |
Bogie Hearth Furnace |
Effective Size: |
1300*1000*750mm |
Temperature: |
Max 1300 Degree Celcius |
Energy Medium: |
Natural Gas |
PLC Control: |
Siemens S7-200 PLC |
Warranty: |
1 Year |
Name: |
Bogie Hearth Furnace |
Effective Size: |
1300*1000*750mm |
Temperature: |
Max 1300 Degree Celcius |
Energy Medium: |
Natural Gas |
PLC Control: |
Siemens S7-200 PLC |
Warranty: |
1 Year |

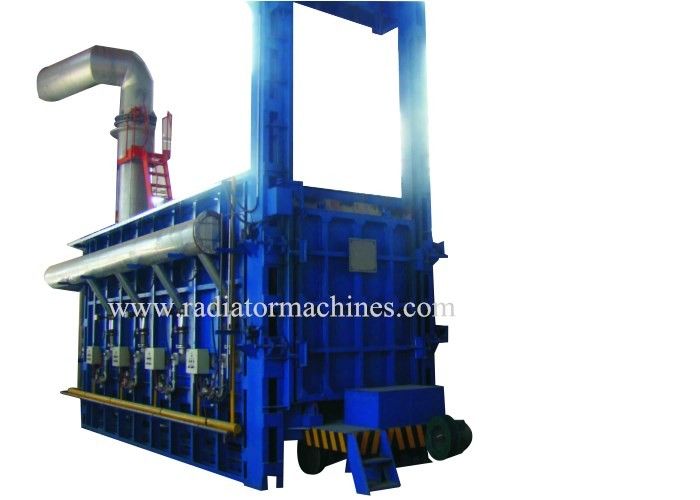

The gas fired bogie hearth furnace is mainly used for heat treatment of metal parts. The furnace works
with gas so as to save overall running cost.
High Quality Variable Capacity Gas Type Bogie Hearth Furnace is state standard energy saving cyclic
furnace. It is a fiber structure saving 60% power consumption. This series furnace is applicable to
the quenching, annealing and aging treatment of high chrome parts, high manganese cast parts, cast iron,
rolls, steel balls, 45# steel parts and others.
Main Technical Parameters of Bogie Hearth Furnace
No. | Item | Technical Parameters |
1 | Gas pressure before furnace | ≤1kg |
2 | Fuel | Natural gas |
3 | fuel gases calorific value | Approx 8500kcaL/m3 |
4 | Heating zone | 1 zone |
5 | Max temperature | 1300℃ |
6 | Loading capacity | Approx 100kg/furnace |
7 | Temperature measurement accuracy | ±2℃ |
8 | Gas consumption at full load | About 30m3/h |
9 | Gas pipe before furnace | Gas flow≥30m3/h |
10 | Air consumption | 450m3/h |
11 | Temperature uniformity | ±10℃(after holding stage) |
12 | Effective working size | 1300×1000×750mm(D×H×W) |
13 | Quantity and model of burner | AGS-150KW, 2pcs, flame burner, on upper part of the wall |
14 | Temperature control method | PID regulation with intelligent temperature controller |
15 | Furnace lining | high quality heat-resistant zirconium fiber, fixed by 321 stainless steel |
16 | Operating voltage |
440V,3phase 220V, 2phase 50Hz |
17 | Furnace door opening method | Electric hoist up-down mechanism, speed 6-8m/min |
18 | Furnace door sealing method | Self weight and hand wheel compaction |
19 | Bogie driving power | 1.1KW motorized chain sprocket driving mechanism, speed 6-8m/min |
20 | Consumption index | Heat efficiency of full loadη≥40% |
The bogie hearth furnace size can be customized.
Electrical Control System
No. | Item | Specification | Origin |
1 | Temperature controller | Honeywell | |
2 | Relay | Omron | |
3 | Electrical components | Buttons, indication lights, etc | CHINT or DELIXI, China |
4 | Cabinet body | Changzhou |
The components of the bogie hearth furnace can be according to customer’s requirement.
