| Name: | Bogie Hearth Furnace | Warranty: | 1 Year |
|---|---|---|---|
| Energy Medium: | ELECTRIC | Door Lifting Speed: | 6-8 M/min |
| Refractory Lining: | Silicate Aluminum Fiber | Bogie Moving Speed: | 6-8 M/ Min |
| High Light: | bogie type furnace,energy saving furnace |
||
All Fiber Type Electric Bogie Hearth Furnace 1 Year Warranty
Product Application
All Fiber Type Electric bogie hearth Furnace With PLC Control is state standard energy saving cyclic furnace. It is a fiber structure
saving 60% power consumption. It is among the first manufacturers to employ compound high aluminum porcelain nail group, trolley
anti-explosion sealing bricks, automatic sealing trolley and furnace door, and integrated rail. This series furnace is applicable to the
quenching, annealing and aging treatment of high chrome parts, high manganese cast parts, cast iron, rolls, steel balls, 45#
steel parts and others.
|
SPECIFICATIONS FOR All Fiber Type Bogie Hearth Furnace |
|||
|
Temperature control system |
Rated temperature |
℃ |
1300 |
|
common heating temperature |
℃ |
400-1250 |
|
|
Furnace body surface temperature |
℃ |
≤ 55 + room temperature |
|
|
Temperature control accuracy |
℃ |
≤±1 |
|
|
Uniformity of furnace temperature |
℃ |
≤±10 |
|
|
Mechanical system |
Door lifting mechanism |
|
electric hoist |
|
Bogie driving system |
|
reducing motor |
|
|
Door and bogie moving speed |
m/min |
6-8 |
|
|
Refractory lining |
Hearth lining |
|
aluminum silicate fiber |
|
Bogie lining |
|
refractory brick |
|
Main Features
1) All Fiber Type Electric bogie hearth Furnace With PLC Control has a shell of welded steel plates and sectional steel.
The structure is of thick material.
2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional
brick hearth.
3) Heating components: high temperature resistance alloy wires and strips.
4) Low noise, energy-friendliness, and stable performance.
5) Advanced CAD design.
6) Years of experiences in bogie hearth furnaces.
MODEL TABLE
|
Model |
Hearth Size (mm) L*W*H |
Rated Power (KW) |
Empty Furnace Rising Time (h) |
Max Loading Capacity (kg) |
|
RT2-30-9 |
950×500×450 |
30 |
2.5 |
500 |
|
RT2-45-9 |
1100×600×400 |
45 |
2.5 |
800 |
|
RT2-65-9 |
1200×600×450 |
65 |
2.5 |
1000 |
|
RT2-75-9 |
1500×750×600 |
75 |
2.5 |
1500 |
|
RT2-90-9 |
1800×900×600 |
90 |
2.5 |
2500 |
|
RT2-105-9 |
1800×900×650 |
105 |
2.5 |
3500 |
|
RT2-120-9 |
2000×900×700 |
120 |
2.5 |
4000 |
|
RT2-135-9 |
2000×1000×750 |
135 |
2.5 |
4200 |
|
RT2-150-9 |
2200×1000×800 |
150 |
2.5 |
5000 |
|
RT2-180-9 |
2200×1050×750 |
180 |
2.5 |
6000 |
|
RT2-200-9 |
2400×1200×800 |
200 |
2.5 |
6500 |
|
RT2-220-9 |
2500×1300×900 |
220 |
2.5 |
7000 |
|
RT2-240-9 |
2500×1400×900 |
240 |
2.5 |
8000 |
|
RT2-250-9 |
2800×1500×900 |
250 |
2.5 |
9000 |
|
RT2-280-9 |
3000×1500×900 |
280 |
2.5 |
10000 |
|
RT2-300-9 |
3000×1530×950 |
300 |
2.5 |
11000 |
|
RT2-320-9 |
3200×1530×950 |
320 |
2.5 |
12000 |
|
RT2-350-9 |
3500×1500×1200 |
350 |
2.5 |
15000 |
|
RT2-380-9 |
4000×1500×1200 |
380 |
2.5 |
18000 |
|
RT2-400-9 |
4500×1500×1200 |
400 |
3 |
20000 |
|
RT2-420-9 |
4500×1600×1200 |
420 |
3 |
22000 |
|
RT2-450-9 |
5200×1500×1200 |
450 |
3 |
25000 |
|
RT2-480-9 |
5500×1500×1200 |
480 |
3 |
28000 |
|
RT2-500-9 |
6000×1500×1200 |
500 |
3 |
30000 |
|
RT2-540-9 |
6500×1800×1200 |
540 |
3 |
35000 |
|
RT2-600-9 |
7000×1800×1200 |
600 |
3 |
38000 |
|
RT2-650-9 |
7200×2000×1200 |
650 |
3 |
40000 |
|
RT2-700-9 |
7500×1800×1800 |
700 |
3 |
42000 |
|
RT2-800-9 |
8500×2000×1500 |
800 |
3.5 |
52000 |
|
RT2-900-9 |
9000×2200×1600 |
900 |
3.5 |
60000 |

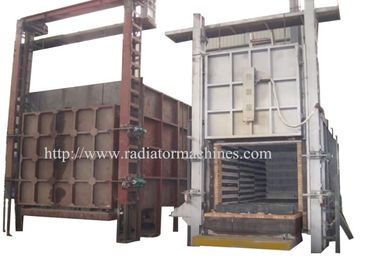

Picture of Electric Bogie Hearth Furnace
