Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: ISO CERTIFICATE
Model Number: CE
Payment & Shipping Terms
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: nude package or steel case package, suitable for sea transportation
Delivery Time: 60 Days
Supply Ability: 100 Sets per Year
Name: |
Bogie Hearth Furnace |
Warranty: |
1 Year |
PLC Control: |
Siemens S7-200 PLC |
Temperature Mechanism: |
1100 Degree Celcius |
Bogie Speed: |
6-8m/min |
Temperature Uniformity: |
+/- 10 Degree Celcius |
Name: |
Bogie Hearth Furnace |
Warranty: |
1 Year |
PLC Control: |
Siemens S7-200 PLC |
Temperature Mechanism: |
1100 Degree Celcius |
Bogie Speed: |
6-8m/min |
Temperature Uniformity: |
+/- 10 Degree Celcius |

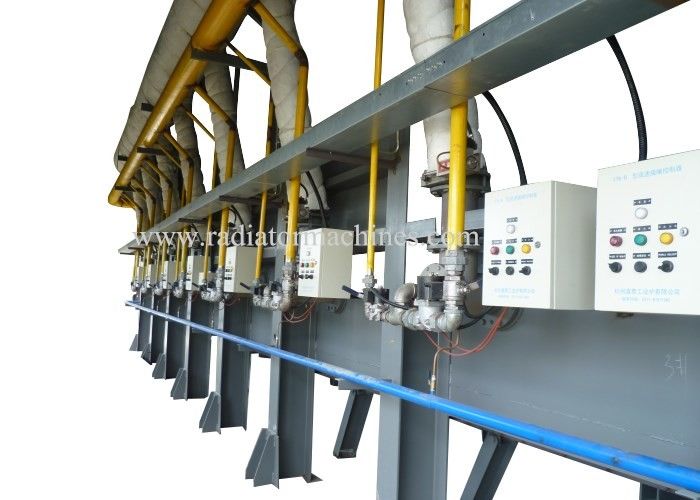

Hot sale Gas Fired Bogie Hearth Furnace is state standard energy saving cyclic furnace. It is a fiber structure saving 60% power consumption. It is among the first manufacturers to employ compound high aluminum porcelain nail group, trolley anti-explosion sealing bricks, automatic sealing trolley and furnace door, and integrated rail. This series furnace is applicable to the quenching, annealing and aging treatment of high chrome parts, high manganese cast parts, cast iron, rolls, steel balls, 45# steel parts and others.
|
SPECIFICATIONS FOR Hot sale Gas Fired Bogie Hearth Furnace
|
|||
|
Temperture contral
system
|
Rated Temperature
|
℃
|
1300
|
|
common heating temperature
|
℃
|
400-1250
|
|
|
Furnace body exterior temperature
|
℃
|
≤ 55 + room temperature
|
|
|
|
Temperature control system precision
|
℃
|
≤±1
|
|
Uniformity of furnace temperature
|
℃
|
≤±10
|
|
|
Gas burning system
|
Fuel
|
|
natural gas
|
|
Gas calorific value
|
Kcal/m3
|
7000
|
|
|
Gas supply pressure
|
Mpa
|
0.05-0.1
|
|
|
Mechanical system
|
door lifting mechansim
|
|
electric hoist
|
|
bogie driving system
|
|
reducing motor
|
|
|
door and bogie moving speed
|
m/min
|
6-8
|
|
|
Refractory lining
|
hearth lining
|
|
aluminum silicate fiber
|
|
|
bogie lining
|
|
refractory brick
|
|
Hearth Size (mm) |
Max Temperature (Degree Celcisu) | Max Loading Capacity (Kg) |
| 950×500×450 | 950 | 500 |
| 1100×600×400 | 950 | 800 |
| 1200×600×450 | 950 | 1000 |
| 1500×750×600 | 950 | 1500 |
| 1800×900×600 | 950 | 2500 |
| 1800×900×650 | 950 | 3500 |
| 2000×900×700 | 950 | 4000 |
| 2000×1000×750 | 950 | 4200 |
| 2200×1000×800 | 950 | 5000 |
| 2200×1050×750 | 950 | 6000 |
| 2400×1200×800 | 950 | 6500 |
| 2500×1300×900 | 950 | 7000 |
| 2500×1400×900 | 950 | 8000 |
| 2800×1500×900 | 950 | 9000 |
| 3000×1500×900 | 950 | 10000 |
| 3000×1530×950 | 950 | 11000 |
| 3200×1530×950 | 950 | 12000 |
| 3500×1500×1200 | 950 | 15000 |
| 4000×1500×1200 | 950 | 18000 |
| 4500×1500×1200 | 950 | 20000 |
| 4500×1600×1200 | 950 | 22000 |
| 5200×1500×1200 | 950 | 25000 |
| 5500×1500×1200 | 950 | 28000 |
| 6000×1500×1200 | 950 | 30000 |
| 6500×1800×1200 | 950 | 35000 |
| 7000×1800×1200 | 950 | 38000 |
| 7200×2000×1200 | 950 | 40000 |
| 7500×1800×1800 | 950 | 42000 |
| 8500×2000×1500 | 950 | 52000 |
| 9000×2200×1600 | 950 | 60000 |
1) The bogie hearth furnace has a shell of welded steel plates and sectional steel. The structure is of thick material.
2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.
3) Heating components: high temperature resistance alloy wires and strips.
4) Low noise, energy-friendliness, and stable performance.
5) Advanced CAD design.
6) Years of experiences in heat treatment process.
