Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE
Model Number: RC
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude package for big parts, steel case or plywood case package for spare parts and accessories, PE weaving film for control cabinet
Delivery Time: 60 Days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Quarter
Name: |
Mesh Belt Furnace |
Working Temperature: |
600℃ |
Temperature Control Accurate: |
±5℃ |
Production Capacity: |
40-300kg/h |
Name: |
Mesh Belt Furnace |
Working Temperature: |
600℃ |
Temperature Control Accurate: |
±5℃ |
Production Capacity: |
40-300kg/h |
40-300 kg/H Continuous Mesh Belt Conveyor Furnace For Screws
The mesh belt furnaceis used for tempering of bearings, nails, screws and other mechanical parts after carburizing
and quenching process.
The mesh belt furnace is equipped with strong-power fan to generate air circulation inside the furnace.
The stainless steel heating tubes are easier for replacement and maintenance.
The mesh belt is controlled by speed regulation inverter.
The mesh belt furnace is also called as mesh belt conveyor furnace.
Model Table(mesh belt conveyor furnace, mesh belt furance)
|
Model |
Working size (mm) |
Rated power (kw) |
Rated temperature (℃) |
Max productivity (kg/h) |
|
RC-25-6 |
3000×400×50 |
25 |
600 |
40 |
|
RC-30-6 |
3500×400×50 |
30 |
600 |
60 |
|
RC-35-6 |
4000×400×50 |
35 |
600 |
100 |
|
RC-45-6 |
4500×400×50 |
45 |
600 |
150 |
|
RC-60-6 |
4900×600×50 |
60 |
600 |
200 |
|
RC-75-6 |
5700×600×50 |
75 |
600 |
250 |
|
RC-90-6 |
4900×800×50 |
90 |
600 |
300 |
Our Services (mesh belt conveyor furnace, mesh belt furance)
Our company provides test-running service to the customers. We would send our engineers to the buyer's site for installation, test-running and training service. The customer should bear the following costs: round-way air ticket fare, board and loding , and daily allowance.
The warrantee period is 1 year after completion of test-running.
We provide technical support life-time.

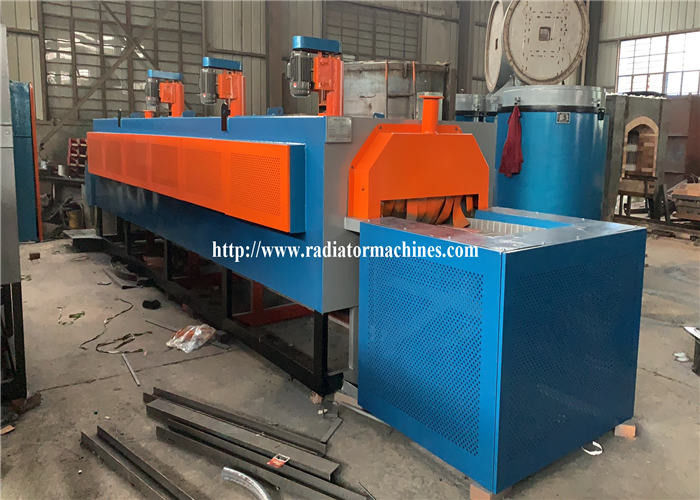

Mesh Belt Conveyor Furnace in our workshop (mesh belt furance)
