Flat Spring Muffle Mesh Belt Furnace Max 120 KG/H at 920 Degree Celcius

Product Details

Place of Origin: Jiangsu, China (Mainland)

Brand Name: WONDERY

Certification: CE

Model Number: RCWF9-30* 240*7

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude package for big parts, steel case or plywood case package for spare parts and accessories, PE weaving film for control cabinet

Delivery Time: 150 Days

Payment Terms: L/C, T/T

Supply Ability: 30 Sets per Quarter

Get Best Price
Product Details
Highlight:

high temperature sintering furnace

,

protective atmosphere furnace

Name:
Mesh Belt Furnace
Application:
Flat Spring
Productivity:
80-120kg/h
Mesh Belt Size:
300*2400*70mm
Name:
Mesh Belt Furnace
Application:
Flat Spring
Productivity:
80-120kg/h
Mesh Belt Size:
300*2400*70mm
Product Description



Flat Spring Muffle Mesh Belt Furnace Max 120 KG/H at 920 Degree Celcius



Application of Muffle Mesh Belt Furnace





product: flat spring;

process: salt bath isothermal quenching, rinsing, and cleaning;

productivity: about 80-120kg/h

material: C67 and C75;

mesh belt furnace effective size:300*2400*70mm.









Basic Parameters of Mesh Belt Furnace Line

Power supply: 380V, 3 phase, 50HZ;

Power supply of the whole line: 259KW;

Total weight of the equipment: 13000kg

Total furnace length: about 14200mm;

productivity:80-120kg per hour;

Process flow: quenching furnace→quenching tank→rinsing machine→cleaning machine;

Quenching furnace: methanol and propane;





Features

1 The heat treatment furnace absorbs foreign technology. The mesh belt furnace

is made in china, but it adopts high quality overseas brand for key parts.

And the overall quality of the furnace reaches the international level.

2 The mesh belt furnace is comprised of quenching furnace, quenching tank,

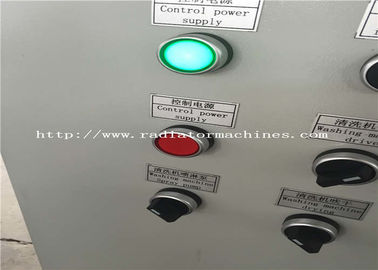

rinsing machine, cleaning machine and electrical control system.





Working Temperature:





Quenching furnace:820~920℃

quenching tank:160~360℃

rinsing machine: 40~80℃

cleaning machine: 40~80℃





Parameters of Mesh Belt Furnace



1) Mesh belt type quenching furnace

Mesh belt width 300 mm

  Working area length: 2400mm

  Working height: 70mm



2) quenching tank

  Mesh belt width : 600mm

Tank depth: 1000mm

Tank length: 3000mm



3) Rinsing machine

Mesh belt width : 600mm

Effective length: 2400mm





4) Cleaning machine

Mesh belt width : 600mm

Effective length: 2400mm



Company Info

Our company is a professional supplier of heat treatment furnaces. We mainly supply industrial furnaces such as

mesh belt quenching furnace, pit type annealing furnace, mesh belt tempering furnace for springs, pusher furnace,

roller hearth furnace, rod furnace, roller furnace, double row pusher furnace, chain conveyor mesh belt furnace,

mesh belt conveyor furnace for fasteners, V-conveyor mesh belt furnaces for heavy springs, etc. Our furnaces are

mainly used to carry out heat treatment for fasteners, nails, drywall screws, springs, bearings, shafts, chains, etc.

Our company has exported its industrial furnaces to the following countries: Russia, Turkey, Egypt, Saudi Arabia,

Kenya, Bolivia, Pakistan, Australia, Israel, Qatar, etc.

Our factory covers an area of 16500 m2, with a production workshop area of 10,000 m2. With advanced technology

as the guide, sincere management as the concept, and high-quality products, the company provides customers with

all-round sincere service from product design, manufacturing, installation and commissioning, personnel training,

technical support and after-sales service, and wholeheartedly welcomes new and old friends to visit us.




Loading of mesh belt furnace RCWF9-30* 240*7 in our workshop:Flat Spring Muffle Mesh  Belt Furnace Max 120 KG/H at 920 Degree Celcius 0
