Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE
Model Number: RCWA
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude package for big parts, steel case or plywood case package for spare parts and accessories, PE weaving film for control cabinet
Delivery Time: 90 Days
Payment Terms: L/C, T/T
Supply Ability: 20 Sets per Quarter
Name: |
Mesh Belt Furnace |
Features: |
PLC And Touch Screen |
Energy: |
Electric Resistance |
Production Capacity: |
160-1000kg/h |
Name: |
Mesh Belt Furnace |
Features: |
PLC And Touch Screen |
Energy: |
Electric Resistance |
Production Capacity: |
160-1000kg/h |
1) To meet the production needs of fastening parts, the furnace employs Taiwan technology, and improves its
energy-saving effect in the area of refractory lining.
2) The production line employs low-voltage heating through the transformer to prolong the service life of the heating tubes.
3) The mesh belt is supported by the support rollers with synchronized movement so that the mesh belt bears
a minimum tension.
4) The rollers are supported by special high-pressure sealed bearing.
5) The mesh belt is designed with abnormal transportation alarm device to assure the stable movement of the
mesh belt.
6) The drip-in atmosphere is gasified by a gasifier and then sent into the furnace. The atmosphere is monitored
and controlled continuously by an oxygen probe.
7) The hot mesh belt returns back to the entrance of the furnace and preheats the cold partss, which saves
energy greatly.
Application
The mesh belt heat treatment furnace is widely used for heat treatment of fasteners such as drywall screw, concrete nails, auto
fasteners, etc.
| Model | Rated Power (Kw) | Rated temperature (degree celcius) |
Working size (mm) |
Productivity (kg/h) |
| RCW-1A | 100 | 920 | 400*400*100 | 160~200 |
| RCW-2A | 110 | 920 | 400*4700*100 | 180~250 |
| RCWA-2A | 120 | 920 | 500*4000*100 | 180~250 |
| RCWA-2B | 130 | 920 | 500*4700*100 | 250~300 |
| RCWA-3 | 160 | 920 | 600*4700*100 | 300~350 |
| RCWA-3A | 160 | 920 | 500*6000*100 | 300~350 |
| RCWA-4 | 180 | 920 | 600*6000*100 | 350~420 |
| RCWA-4A | 180 | 920 | 800*4700*100 | 450~520 |
| RCWA-5 | 220 | 920 | 800*6000*100 | 450~520 |
| RCWA-6 | 300 | 920 | 800*7600*100 | 550~720 |
| RCWA-7 | 380 | 920 | 1000*7600*100 | 880~1000 |
COMPANY INFO
Our furnace is a professional supplier of heat treatment furnaces. Our main products are: bogie hearth furnace, pit type furnace,
mesh belt furnace, gas fired mesh belt furnace, roller hearth mesh belt furnace, pit type annealing furnace, auto spring
mesh belt tempering furnace, metal melting furnaces, etc.

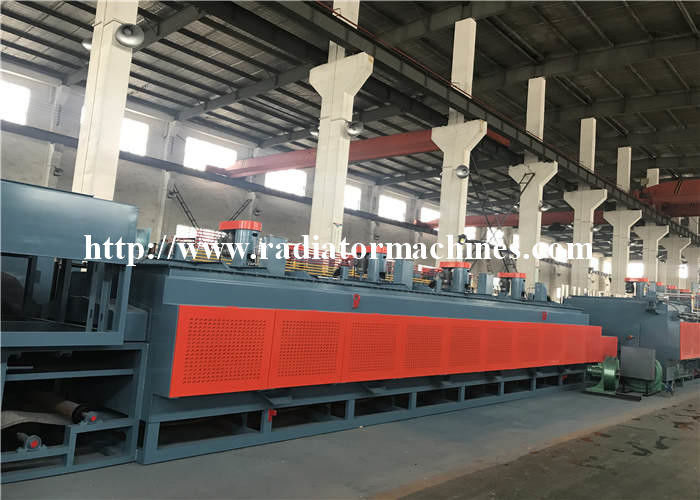

Mesh belt furnace in our workshop:
