1000 KG/H Electric Resistance Mesh Belt Furnace 950 Degree for Nails and Screws

1000 KG/H Electric Resistance Mesh Belt Furnace 950 Degree for Nails and Screws

1000 KG/H Electric Resistance Mesh Belt Furnace 950 Degree for Nails and Screws
1000 KG/H Electric Resistance Mesh Belt Furnace 950 Degree for Nails and Screws

Large Image :  1000 KG/H Electric Resistance Mesh Belt Furnace 950 Degree for Nails and Screws

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE
Model Number: RCWC9-80* 1000*10

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude package for big parts, steel case or plywood case package for spare parts and accessories, PE weaving film for control cabinet
Delivery Time: 150 Days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Quarter
Detailed Product Description
Energy: Electricity Production Capacity: 500-1000kg/h
Total Power: 780 KW Mesh Belt Size: 800*10000mm
High Light:

mesh belt conveyor furnace


protective atmosphere furnace

1000 KG/H Electric Resistance Mesh Belt Furnace 950 Degree for Nails and Screws ​


Application of Mesh Belt Furnace

product: steel nails, self-tapping screw;

process: carburizing, bright quenching and tempering;

productivity: quenching: 500-1000kg/h;

Mesh belt furnace size:800*10000mm



Main Features of Mesh Belt Furnace

1 General Introduction

1.1 The mesh belt furnace line combines the advanced technologies from Taiwan. Its key parts are

imported from overseas.

1.2 The mesh belt furnace line is comprised of magnetic belt charging machine, pre-cleaning

machine, support roller quenching furnace, quenching tank, oil removing stand, post-cleaning

machine, support-roller mesh belt tempering furnace, and electrical control system.

Mesh belt furnace/mesh belt conveyor furnace



2.1 To meet the production needs of fastening parts, the furnace employs Taiwan technology, and

improves its energy-saving effect in the area of refractory lining.

2.2 Themesh belt furnace production line employs low-voltage heating through the transformer to

prolong the service life of the heating tubes.

2.3 The mesh belt is supported by the support rollers with synchronized movement so that the mesh

belt bears a minimum tension.

2.4 The rollers are supported by special high-pressure sealed bearing.

2.5 The mesh belt is designed with abnormal transportation alarm device to assure the stable

movement of the mesh belt.

2.6 The drip-in atmosphere is gasified by a gasifier and then sent into the furnace. The atmosphere

is monitored and controlled continuously by an oxygen probe.

2.7 The hot mesh belt returns back to the entrance of the furnace and preheats the cold partss,

which saves energy greatly.



Mesh Belt Furnace Line Basic Parameters

1 Total loading power: 780kw; normal power: 420kw; power supply 3phase, 380v, 50Hz;

2 Total length: about 47m;

3 Total weight:60000kg;



Specification of Each Unit     Mesh belt furnace/mesh belt conveyor furnace

1 Working temperature:

Precleaning machine: 40~60℃; quenching furnace:820~950℃; quenching tank,60~80℃; post-cleaning machine: 40~60℃; tempering furnace: 200~450℃;

2 productivity

Quenching: 500-1000kg/h ( varying with the workpiece size, weight, stacking method, and other related conditions)

3 furnace atmosphere

  Quenching furnace: methanol+propane+ammonia;

Tempering furnace: air

4 magnetic belt charging machine

Mesh belt width: 900mm

5 Precleaning machine

Mesh belt width : 800mm

Effective length: 2400mm

Tank volume: 2m3

6 Vibration distribution machine

Exit width: 700mm

7 Mesh belt type quenching furnace

Mesh belt width: 800 mm

  Inlet length: 2000 mm

  Preheating belt length: 1500mm

  Working area length: 10000mm

  Effective height: 100mm

8 quenching oil tank

  Mesh belt width : 1200mm

Oil tank depth: 2000mm

Oil tank width: 1800mm

Oil tank length: 4200mm

Tank volume: 14 m3

9 Oil removing stand

Mesh belt width : 1100mm

10 Post-cleaning machine

Mesh belt width : 1100mm

Effective length: 2400mm

Tank volume: 2m3

11 mesh belt tempering furnace

  Effective height: 100mm

  Mesh belt width : 1100mm

Heating area length: 10000mm



Energy Consumption  Mesh belt furnace/mesh belt conveyor furnace

1 power

Heating power: 380V±10%, 3 phase, AC, 50HZ;

Measuring and control system: 220V±10%, 50HZ

Heating system:about 745kW

Driving system power and other consumption spots: about 40kW

Power supply of the whole line: about 785W

Power consumption at normal working: about 420kW

2 atmosphere inlet pipe parameters

Methanol inlet pipe: 4-6 L/h ; ≥0.04 Mpa;

Propane inlet pipe: automatic control with supply ≤500L/h; supply pressure ≥0.04Mpa;

Ammonia inlet pipe: 3m3/h;

3 cooling water

Water quality: according to state standard low-calcium industrial circulating water;

Suspended substance: max 10mg /L;

Filter mesh belt hole size: max 0.3mm;

Inlet temperature: (max) 30℃(in summer)

Inlet temperature: (min)5℃ (in winter)

Temperature difference: 10℃

Inlet pressure: 0.2 Mpa

Max water consumption: about 100m3/h (circulating use)


4 Supplementary Equipment ( supplied by the buyer)

The cooled water tank and cooling tower are usually mounted outside the workshop

but near the production line. The cooling power capacity should be ≥100m3/h.



Our company information:

Our company is a professional supplier of heat treatment furnaces. We mainly supply industrial furnaces such as

mesh belt quenching furnace, pit type annealing furnace, mesh belt tempering furnace for springs, pusher furnace,

roller hearth furnace, rod furnace, roller furnace, double row pusher furnace, chain conveyor mesh belt furnace,

mesh belt conveyor furnace for fasteners, V-conveyor mesh belt furnaces for heavy springs, etc. Our furnaces

are mainly used to carry out heat treatment for fasteners, nails, drywall screws, springs, bearings, shafts,

chains, etc.

Our company has exported its industrial furnaces to the following countries: Russia, Turkey, Egypt, Saudi

Arabia, Kenya, Bolivia, Pakistan, Australia, Israel, Qatar, etc.

Our factory covers an area of 16500 m2, with a production workshop area of 10,000 m2. With

advanced technology as the guide, sincere management as the concept, and high-quality products,

the company provides customers with all-round sincere service from product design, manufacturing,

installation and commissioning, personnel training, technical support and after-sales service, and wholeheartedly

welcomes new and old friends to visit us.


Mesh belt furnaces in our workshop:

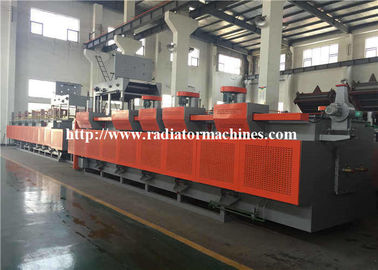

1000 KG/H Electric Resistance Mesh Belt Furnace 950 Degree for Nails and Screws 0
