Aluminum Electric Metal Melting Furnaces Tilting 500KG Resistance 75kW

Aluminum Electric Metal Melting Furnaces Tilting 500KG Resistance 75kW

Aluminum Electric Metal Melting Furnaces Tilting 500KG Resistance 75kW
Aluminum Electric Metal Melting Furnaces Tilting 500KG Resistance 75kW

Large Image :  Aluminum Electric Metal Melting Furnaces Tilting 500KG Resistance 75kW

Product Details:
Place of Origin: JIANGSU
Brand Name: WONDERY
Certification: CE
Model Number: WR-GRD-500
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Plywood case suitable for sea transportation
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 stes/year
Detailed Product Description
Name: Electric Melting Furnace Capacity: 500 Kgs
Power: 75kW Casting Material Life: About 2.5 Hours
Temperature Control Accuracy: Plus/minus 2 Degree Celsius Working Temperature: 850 Degree Celsius
High Light:

metal melting equipment

,

aluminum melting furnace

Aluminum Metal Electric Melting Furnace Tilting 500KG Resistance 75kW



1. Application of Electric Melting Furnace



The crucible melting furnace is applicable to melting of ferrous metal and alloy of low melting point.



2. Structural Introduction

The electric melting furnace consists of the following three parts: furnace body, electrical

heating and control system, and hydraulic tilting system.



2.1 Furnace Shell

The furnace shell of crucible melting furnace is made from steel plates and sectional steel in a

shape of a round column. The joining areas are closely welded.



2.2 Lining of Electric Melting Furnace

For side wall, the lining of the side wall includes the silicate aluminum fiber block,

superlight 0.6g/cm3 refractory brick, and filling vermiculite powder. The heating

components are OCr27A17MO2 high-resistance alloy strips.

For crucible melting furnace bottom, it is built with once-forming casting material with a long service

life and a high strength.



2.3 Heating System of Electric melting furnace

a)heating components—high-resistance wires (1 zone control);

Control system: temperature controller (imported from Taiwan, 2 pieces),

electronic power regulator, contactor, relay.

Temperature sensing component: thermal coupling (2 pieces in together,

1 for measuring the hearth atmosphere temperature and another for measuring

the molten aluminum temperature)



Power supply:



Power supply prepared by the buyer:

Power supply: 3-phase 5-wire , 380V±10%, 50Hz±3 Hz;

Control power: 220V±10%,50Hz±3 Hz.





2.4 Graphite crucible

The graphite crucible used for the electric melting furnace is of Vesuvius brand.

The crucible size is 750*900mm (outer diameter*height). The crucible has a

life of 6 months or more depending on the customer’s working conditions.



2.5 Electrical control system (PID control)

2.5.1 main technical parameters

a) working voltage: 3 phases, AC, 380V;

b) control method: manual potentiometer regulation or automatic control signal of 0-5VDC;

c) soft start-up function: moves started after 0.5 second;

d) temperature control accuracy: ±3℃( under standard working conditions)

e) rated power: both manually and automatically regulated;



2.5.2 main electrical components

a) control cabinet, 1 piece;

b) temperature controller, Taiwan origin, 2 pieces (one controller with PID regulation).

c) power regulator, 1 set;

d) low voltage electrical components, 1 set;

e) hydraulic control system, 1 set;

f) thermal coupling, 2 pieces (the piece measuring the molten aluminum temperature is sheathed in a

protection casing pipe);

g) wire, 1 set;

2.6 emergency outlet hole

In order to prevent leakage, there is an emergency outlet hole designed at the bottom of the side wall.







Technical Parameters

Technical Parameters Unit Model
SC-GRD-500
Rated power KW 75
Rated voltage V 380
Connection method   Y
Max temperature 850
Working temperature 0-800
Frequency HZ 50
Phases   3
Temperature rising time for empty furnace h ≤3
Temperatuer stability ±3
Crucible size mm 750*900mm (OD*Height)
Melting rate Kg/h 250







4. Configuration List of Electric melting furnace

4.1 furnace body, 1 set;

4.2 heating components, OCr27A17MO2 resistance strips, 1 set, Shanghai;

4.3 electrical control box, 1 set (including temperature controller, 2 sets, Taisee, Taiwan; electronic

power regulator, 1 set, Taisee, Taiwan; air switch, contactor and other low voltage

components, 1 set, CHINT or Omron)

4.4 graphite crucible press ring, cast iron, 1 piece;

4.4 graphite crucible, 1 piece (Vesuvius brand);

4.5 thermal coupling for measuring the molten aluminum temperature, 1 piece

( including a protection carbon silicon protection pipe)

4.6 thermal coupling for measuring the hearth atmosphere temperature,

1 piece, Shanghai;

4.7 hydraulic tilting system, 1 set;

4.8 technical documents, 1 copy;

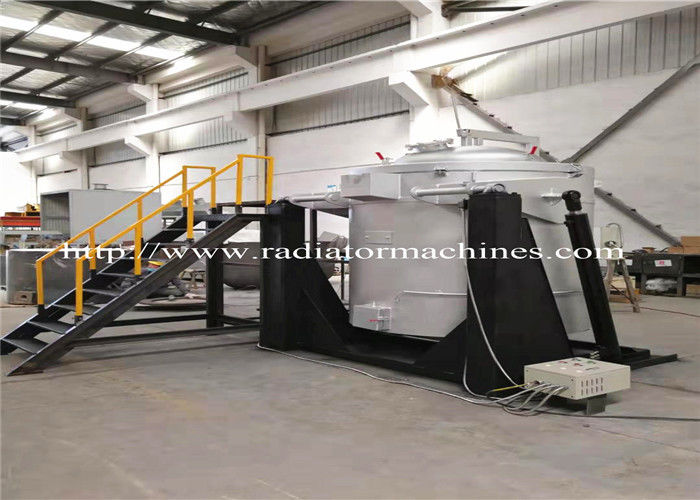

Crucible melting furnace in our workshopAluminum Electric Metal Melting Furnaces Tilting 500KG Resistance 75kW 0
