|Name:||Metal Melting Furnaces||Capacity:||1500kg Zinc|
|Power:||7.5KW||Max Temperature:||1000 Degree Celsius|
|Fuel:||Natural Gas||Consumption:||Max 30m3/h|
metal melting equipment,
aluminum melting furnace

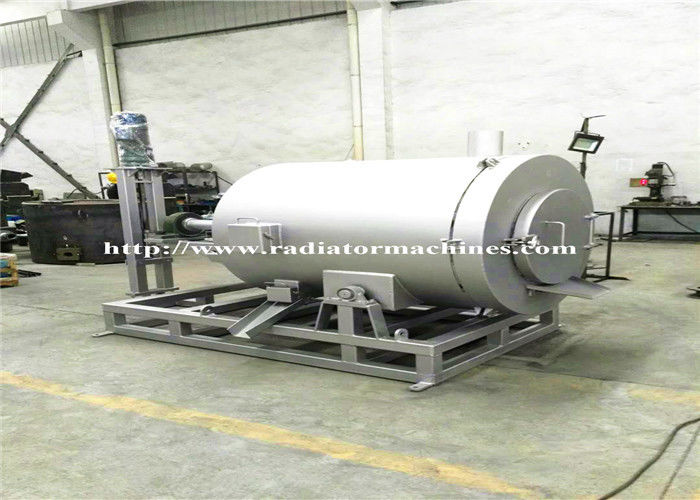

1500KGS Zinc Powder Metal Melting Furnaces Rotary Type Natural Gas Fired
The metal melting furnace is used to melt zinc powder working with natural gas as fuel. Natural
gas is a clean energy which could prevent air pollution to the environment.
2. Power Supply
The space preserved for installing the zinc metal melting furnace is not less than
6000mm*4000*4000mm (L*W*H, mm).
The control cabinet is placed inside the control room near the furnace. But there should be
enough distance between the furnace and control room to ensure control room safety.
The total loading power is not less than 7.5KW. It is mainly used for fan motor, rotary
motor, and draft fan.
3. Furnace Structure
The oil fired metal melting furnace is comprised of furnace body, seat, driving mechanism,
sealing mechanism, burning device, air piping system, temperature control system, etc.
4.Main Technical Parameters
4.1 overall size: 3600(L)×2300(W)X1800(H)
4.2 max furnace temperature:1000℃
4.3 temperature rising speed: ～300℃/h, adjustable;
4.4 rotary speed: 10~12m/min；
4.5 max capacity: 1500Kg
4.6 fuel type: natural gas; heat value: Qd=8400kcal/kg
4.7 max consumption rate: about 30m3/h;
4.8 max air consumption: 350m3/h;
4.9 fume volume: 280m3/hour;
4.10 burner type: natural gas burner, Riello brand, 1 set;
4.11 temperature zone: 1 zone;
4.12 temperature uniformity: ±30℃ (temperature of the effective heating zone measured at the holding stage)
4.13 furnace door: bearing manual type;
4.14 lining: 1st grade high-alumina bricks; porcelain fiber heat preservation layer.
4.15 fume removal: natural upward fume removal.
4.16 floor area: about 6000mm*4000*4000mm (L*W*H, mm).
5. Supply Scope of zinc metal melting furnace
|1||Furnace body||1 set||6mm steel plate|
|2||Lifting and rotary mechanism||1 set||Electric|
|3||Inner tank||1 piece||F08 20mm|
|4||Burning system||1 set||RIELLO|
|5||Electrical control cabinet||1 set||PID control|
muffle tank inside the zinc powder metal melting furnace body:
