100kg / H Mesh Belt Furnace For Drywall Screws Quenching Hardening Tempering

Certification
Good quality Radiator Core Builder Machine for sales
Good quality Radiator Core Builder Machine for sales
I'm Online Chat Now

100kg / H Mesh Belt Furnace For Drywall Screws Quenching Hardening Tempering

China 100kg / H Mesh Belt Furnace For Drywall Screws Quenching Hardening Tempering supplier
100kg / H Mesh Belt Furnace For Drywall Screws Quenching Hardening Tempering supplier 100kg / H Mesh Belt Furnace For Drywall Screws Quenching Hardening Tempering supplier 100kg / H Mesh Belt Furnace For Drywall Screws Quenching Hardening Tempering supplier

Large Image :  100kg / H Mesh Belt Furnace For Drywall Screws Quenching Hardening Tempering

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE
Model Number: RCW2400*300*50

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: nude package for furnace body, PE film package for control cabinet
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Quarter
Contact Now
Detailed Product Description
Name: Mesh Belt Furnace Quenching Capacity: 100 Kg/h
Mesh Belt Width: 300mm Total Rated Power: 105KW
Working Temperature: 820~950℃ Total Length: 18meter





100kg/H Mesh Belt Furnace For Drywall Screws Quenching Hardening, Tempering, Blackening



Brief Introduction

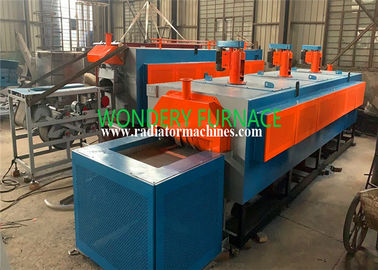

The production line is comprised of mesh belt quenching furnace, quenching tank and elevator, post-cleaning machine,

hot air circulation tempering furnace, and electrical control system.



Temperature

quenching furnace: 820~950℃, quenching tank: 60~80℃(the temperature can be adjusted

automatically and manually ), tempering furnace≤650℃, cleaning machine: 60~100℃(the temperature

can be adjusted automatically and manually ).





Application of Mesh belt furnace

product: Drywall screw;

process: Quenching Hardening, Tempering, Blackening

productivity: quenching: 100kg/h; carburizing:about 55kg/hour;

heating power: electricity





Parameters of Total Mesh Belt Furnace Line

1 Total rated power: 105kw; normal power: 60kw;

2 Power supply 3phase, 380v, 50Hz;

3 Total length: about 18m;



Equipment Specification of Each Unit

1. Mesh Belt Quenching Furnace

The quenching furnace is the main unit of the production line, which is mainly composed of mesh belt

drive device, insulation material, heating device, atmosphere supply control device and temperature control device.

No. Item Parameter
1 Mesh belt width 300mm
2 Mesh belt material

SUS314,Ø2.0*2.5, folding height: 20mm

3 Muffle material SUS310S
4 Heating length 2400mm
5 Charging hole length 1200mm
6 Furnace length 1800mm
7 Preheating zone length 600mm
8 Temperature control zone 3zones, PID control
9

Uniformity of furnace temperature

≤±5℃

10

Furnace surface temperature rise

≤50℃ (furnace shell)

11

Temperature control accuracy

±0.5℃

12 heating power 60KW



2. Quenching oil tank and elevator



3. Post-cleaning machine (immersion type)



The post-cleaning machine has strong force spray device. The workpiece is soaked in the cleaning liquid first,

and then it is strongly rinsed which makes the cleaning function better. The post-cleaning machine has oil-water

separation design. The high and low design could separate the oil that the workpiece brings into the cleaning tank.

The waste oil can be recycled to protect the environment. The height difference between the cleaning machine

conveyor and the quenching furnace is lowered in order to prevent collision when the workpiece falls, and

damping device is made on the collection hopper.



4. Hot air circulation tempering furnace

The tempering furnace adopts collective heating.The high power fan generates the hot air circulation to

keep the furnace temperature uniform.



5. Electrical control system

The whole production line adopts the collective control system over temperature, heating, and transmission.

The control system also has functions of audible and visual alarm, thermal breakage alarm, and safety interlock.

All the transmission devices for the line can run clockwise and anticlockwise. The control cabinet is front opening door.

The time reader can directly convert the frequency of the frequency converter into the corresponding time,

which is convenient for process adjustment.





100kg/h Mesh Belt Furnace For Drywall Screws Quenching Hardening Tempering Blackening
