Air Cooling 15m/Min Pipe Tube Expander Machine Horizontal Layout

Product Details

Place of Origin: CHINA

Brand Name: WONDERY

Certification: CE

Model Number: THJ-15

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Plywood case

Delivery Time: 60 Days

Payment Terms: Negotiable

Supply Ability: 100 sets per year

Get Best Price
Product Details
Highlight:

15m/min tube expander machine

,

15m/min pipe expander machine

,

Air cooling tube expander machine

Color:
Skyblue(customized)
Working Efficiency:
About 10-15m/min
System Pressure:
Normal Working Pressure Of Hydraulic System ≤ 7MPa, Maximum Working Pressure 10MPa
Equipment Power:
Oil Pump Motor: 2.2kW
Power Supply Voltage:
3P 5-wire, AC380V/50Hz
Voltage Fluctuation Range:
± 10%
Oil Temperature Cooling Mode:
Air Cooling
Warranty:
1 Year From The Day Of Shipment
Color:
Skyblue(customized)
Working Efficiency:
About 10-15m/min
System Pressure:
Normal Working Pressure Of Hydraulic System ≤ 7MPa, Maximum Working Pressure 10MPa
Equipment Power:
Oil Pump Motor: 2.2kW
Power Supply Voltage:
3P 5-wire, AC380V/50Hz
Voltage Fluctuation Range:
± 10%
Oil Temperature Cooling Mode:
Air Cooling
Warranty:
1 Year From The Day Of Shipment
Product Description

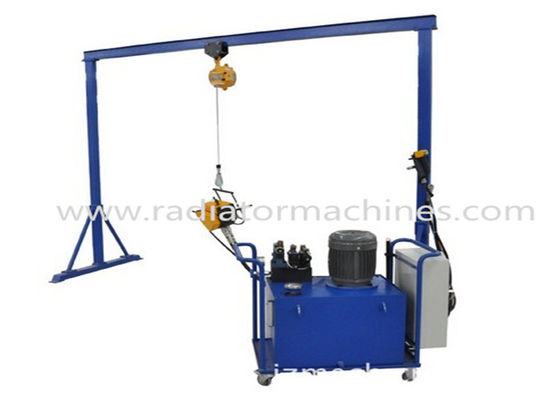

THJ-15 Portable Type Tube Expander



Structural features of the Equipment

1. Structural form: horizontal layout, expansion joint, flaring device, hydraulic station, electrical control, gantry, and balancer. Four high-pressure hoses and two control cables make them a complete system.

2. Expansion joint: main body, cycloid oil motor, transmission gear, rolling gear, guide clamp device and expansion rod assembly, etc. When working, the copper tube or aluminum tube is clamped by the guide clamp, and the expansion joint is installed on the expansion rod, and the oil motor drives the expandion rods forward or backward to expand the tubes through the transmission gear and rolling gear.

3. Flaring device: it is composed of hydraulic cylinder and flaring elastic sleeve.The oil cylinder pushes the conical rod to flare the tube ends.

4. Hydraulic station: it is composed of oil tank, oil pump, electromagnetic directional valve, oil pump motor, overflow valve and other hydraulic accessories.It provides hydraulic power for expansion joint and flaring device.

5. Gantry and balancer: the device suspends the expansion joint, so that it can easily move up and down, left and right to ensure smooth expansion



Name THJ-15 Portable Type Tube Expander
Color Skyblue(customized)
Copper tube Φ15mm
Wall thickness To be determined
One time expansion 4pcs
Workpiece length 4m
Tube material Copper, soft status
Working efficiency About 10-15m/min
System pressure Normal working pressure of hydraulic system ≤ 7MPa
Maximum working pressure 10MPa
Equipment power Oil pump motor 2.2kW
Power supply voltage 3P 5-wire, AC380V/50Hz
Voltage fluctuation range ± 10%
Oil temperature cooling mode Air cooling
