XUW-15 Fully- automatic HVAC Equipment , Long Hairpin Bending Machine

Name: XUW-15 Fully- automatic HVAC Equipment , Long Hairpin Bending Machine
Brand: Wuxi Wondery Industry Equipment Co., Ltd
SKU: XUW-15
Price: 15.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: WONDERY

Certification: CE

Model Number: XUW-15

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: The normal package is plywood box with dessicant bag and wrapping film. Fumigation is not needed.

Delivery Time: 60 Days

Payment Terms: Negotiable

Supply Ability: 100 Sets per year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                cnc hairpin bending machine, HVAC hairpin bending machine, cnc hairpin bender


Name:	Fully Automatic Long U-tube Bender	Copper Tube:	Arm Thickness:Φ15mm; Outer Diameter:Φ15mm
Center Distance:	Φ1560mm/Φ1542.2mm	The Length Of The Workpiece:	300-3500 Mm
Supply Voltage:	3P 5-wire AC380V / 50Hz Voltage Fluctuation Range:±10%	Working Pressure:	≤6.3MPa
Equipment Structure:	Φ1560-2pieces/Φ1542.2-2pcs	Air Source:	0.4~0.6MPa, 500L/min

Name:	Fully Automatic Long U-tube Bender
Copper Tube:	Arm Thickness:Φ15mm; Outer Diameter:Φ15mm
Center Distance:	Φ1560mm/Φ1542.2mm
The Length Of The Workpiece:	300-3500 Mm
Supply Voltage:	3P 5-wire AC380V / 50Hz Voltage Fluctuation Range:±10%
Working Pressure:	≤6.3MPa
Equipment Structure:	Φ1560-2pieces/Φ1542.2-2pcs
Air Source:	0.4~0.6MPa, 500L/min

Product Description

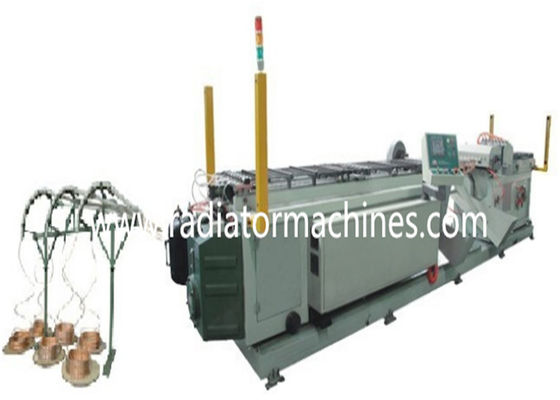

XUW-15 Fully- automatic HVAC Equipment , Long Hairpin Bending Machine

Structural features of the equipment:

1. Structure: servo fixed length cutting and unloading, fixed vane pump is used in hydraulic system, and servo motor drives the bending mechanism.

2. The whole machine is composed of material rack, cutting machine and bending machine. The bending machine can move back and forth in length direction by servo driving ball screw to realize the production of different length workpieces.Automatic circulation process: straightening → feeding → pressing → cutting → bending up → core pulling → loosening → unloading → reset.

General Parameters

Project			Parameters
Copper tube	Material	Grade	Alloy grade: TP2 (soft) (in accordance with GB / T 17791)
		OD	Maximum outer diameter Φ 1100mm
	Arm thickness, mm		Φ15
	Outer diameter, mm		Φ15	Φ15
Workpiece size	Center distance, mm		60	42.2
	Maximum length, mm (minimum 300)		3500	3500
Number of pieces processed at the same time			4
Automatic processing cycle, S/time			Less than 10 (calculated according to the length of workpiece 1m)
Electrical system	supply voltage		3P 5-wire AC380V / 50Hz voltage fluctuation range:±10%
	Oil pump motor power		1.5 kW
	Cutting motor power		1.5 kW inverter drive
	Positioning discharge motor		2.0kw servo motor
	Moving motor of bending machine		1.0 kW servo motor
	Bending servo		3.5kw servo motor
Hydraulic pressure	Hydraulic pump		Fixed vane pump
	Hydraulic oil		Isovg32 / tank capacity 160 L
	Working pressure		≤6.3MPa
	Oil temperature cooling mode		Air cooling
Air source			0.4~0.6MPa, 500L/min
Volatile oil			Japan Idemitsu Af-2C oil/20L / (or other brand good quality volatile oil)

XUW-15 Fully- automatic HVAC Equipment , Long Hairpin Bending Machine 0
