13KW Aluminum Radiator Core Assembly Equipment Electrical PLC Control

13KW Aluminum Radiator Core Assembly Equipment Electrical PLC Control

13KW Aluminum Radiator Core Assembly Equipment Electrical PLC Control
13KW Aluminum Radiator Core Assembly Equipment Electrical PLC Control

Large Image :  13KW Aluminum Radiator Core Assembly Equipment Electrical PLC Control

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE
Model Number: ZPJ-5L
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiable
Packaging Details: plywood case suitable for sea transportation
Delivery Time: 90 Days
Supply Ability: 100 Sets per Year
Detailed Product Description
Machine Name: Radiator Core Builder Machine Layer: 1-5
Header To Header Distance: 500-1200 Mm Header Length: 250-780 Mm
Follow-up Process: Brazing Process Power: 13 Kw
Weight: 3.5 Ton
High Light:

13KW Radiator Core assembly equipment

,

Aluminum Radiator Core assembly equipment

,

Aluminum Radiator Core assembly machine

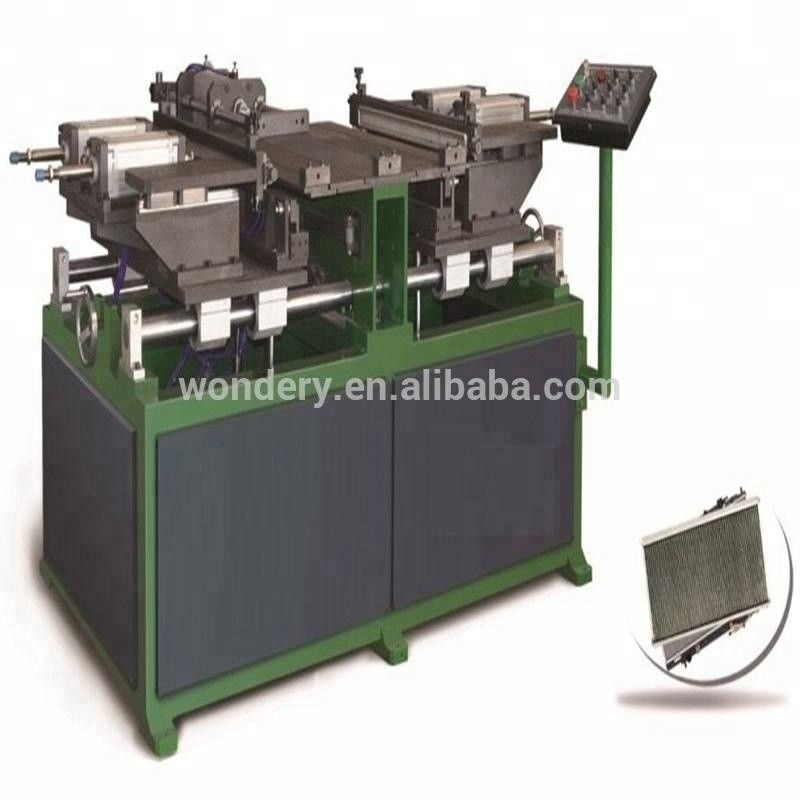

Servo Type Multirow Radiator Core Builder Machine for Heavy Truck Radiators



Application

The radiator core builder machine is used to assemble multiple-row engineering radiators.





Main Features

The radiator core builder machine is characterized of servo driving system, automatic servo flat tube

(slope silo and 2 tubes distributed per time) silo distribution, and electrical PLC control system.

The machine can assemble the flat tubes, fins, header plates, and side plates into a core through one

working cycle. The radiatore core assembly machine has the advantages of stable and reliable working performance,

easy operation, low noise, accurate positioning of flat tube center, and even distribution of fins.

The assembled condenser core has a high assembling

accuracy and a good appearance, which ensures a better brazing effect in the brazing furnace.



Technical Parameters of Radiator Core Builder Machine

Radiator core assembled per time: 1 piece

Center-to-center distance: decided by the customer

Flat tube row: 1-5 rows

Core height (header to header distance): min500mm to max 1200mm;

Core width(header length): min250mm to max 780mm

Core body thickness: 140mm

Power supply: 3-phase 4-wire ; 380V, 50HZ;

Rated power: ≤13Kw;

Center-to-center distance: customized;

Flat tube quantity per row: customized;

Equipment weight: about 3.5T;

Equipment overall dimension (for reference): 2800*2500*1800mm



Company Introduction

Our company mainly supplies the radiator making machines for brazing radiators. The machines for

making brazing radiators include the following: aluminum radiator fin machine, radiator core builder

machine, radiator plastic tank crimping machine, air leak tester, header mold, plastic tank mold, etc.

The machines for making mechanical radiators include the following: high seed fin press, progressive fin die,

aluminum radiator tube fin expansion machine, aluminum radiator tube-header expansion machine, radiator

plastic tank clinching machine, hydraulic press, etc.



The radiator core builder machine is also called as radiator core assembly machine, aluminum radiator core assembly machine, core assembly table, core assembly machine, radiator core assembly machine.



We also supply manual radiator core builder machines.
