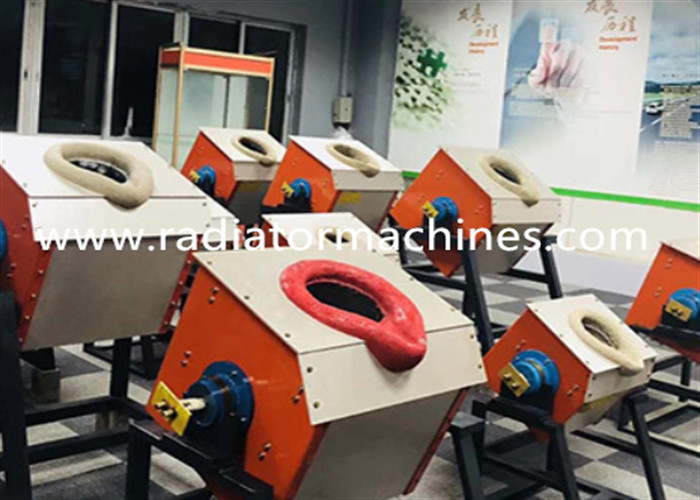

25KW Medium Frequency Industrial Induction Metal Melting Furnace 5KG Capacity for Steel Copper Aluminum

25KW Medium Frequency Industrial Induction Metal Melting Furnace 5KG Capacity for Steel Copper Aluminum

25KW Medium Frequency Industrial Induction Metal Melting Furnace 5KG Capacity for Steel Copper Aluminum
25KW Medium Frequency Industrial Induction Metal Melting Furnace 5KG Capacity for Steel Copper Aluminum 25KW Medium Frequency Industrial Induction Metal Melting Furnace 5KG Capacity for Steel Copper Aluminum

Large Image :  25KW Medium Frequency Industrial Induction Metal Melting Furnace 5KG Capacity for Steel Copper Aluminum

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE
Model Number: WDL-25KW
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case suitable for sea transportation
Delivery Time: 90 Days
Supply Ability: 100 Set/Sets per Year
Detailed Product Description
Input Power: 3 Phase 380V 50HZ Input Voltage Range: 340-480V
Melting Cycle: 30min Per Cycle Cooling Water Flow: Water Flow >7.5Lmin
Heating Oscillation Current: 1-100A Connecting Line: 1.5 Meters
Insulation Oscillation Current: 200-2400A Heating Time: 1-99 Seconds (auto Mode))

Energy Saving 25KW Medium Frequency Induction Furnace



1. Power Supply

1.1 The industrial metal melting furnace adopts IGBT power device and unique frequency conversion technology to

operate stably and provide higher reliability and durability. The industrial metal melting furnace has the function of constant

current and constant power control, which greatly optimizes the metal heating process, realizes efficient and fast heating, and

gives full play to the advantages of the product. Under the same conditions, it has twice the power saving than the traditional

SCR medium frequency. With 100% load design, the industrial metal melting furnace can work continuously for 24 hours

and improve heating quality.



1.2 The industrial metal melting furnace main power devices are all German Siemens brands, and the main electronic

components are imported products (Motorola (diode), NEC (triode), ST (three terminal voltage regulator), FAIRCHILD,

ON etc., which make them work stably and have higher reliability and durability.



1.3 The industrial metal melting furnace has alarm function and fault detection function, such as fault state protection

and display including overcurrent, overvoltage and water shortage, etc.



2.Main technical Parameters

Model 25KW Capacity 5KG steel
Input power 3 phase 380V 50HZ Input voltage range 340-480V
Output control mode Constant current mode Melting cycle 30min per cycle
  Constant power mode Holding time

1-99 seconds

(auto mode)

Output oscillation frequency 2-20KHZ Cooling water flow Water flow >7.5Lmin
Heating oscillation current 1-100A Connecting line 1.5 meters
Insulation oscillation current 200-2400A Heating time

1-99 seconds

(auto mode))



3.Model Selection Table for Tilting Type Industrial Metal Melting Furnace



Model/specification Maximum input power Steel/stainless steel Brass/gold/ Silver Aluminum/aluminum alloy

WDL-15KW



15KW 3KG 10KG 3KG

WDL-25KW



25KW 5KG 20KG 5KG

WDL-35KW



35KW 10KG 30KG 10KG

WDL-45KW



45KG 18KG 50KG 18KG

WDL-70K



70KW 25KG 100KG 25KG

WDL-90KW



90KW 40KW 120KW 40KW

WDL-110KW



110KW 50KG 150KG 50KG

WDL-160KW



160KW 100KG 250KG 100KG



4.  Supply Scope

  • Heating power source, 1 set;
  • Foot switch, 1 pc;
  • Connection wire 2pcs; single wire 1 pc;
  • Furnace body 1set; flexible connection cable 2pcs;
  • Protective cap 1 set; protective gloves 1 pair;
  • User manual 1 copy;

5. Company Info

Wuxi Wondery Trading Co., Ltd is a comprehensive  supplier of melting furnaces. We have induction melting

furnaces, and gas or oil fired melting furnaces. The industrial metal melting furnaces can be used to melt copper, zinc, aluminum,

lead, tin, etc.





Industrial Medium and Large Capacity Induction Metal Melting Furnaces that we Supply:

25KW Medium Frequency Industrial Induction Metal Melting Furnace 5KG Capacity for Steel Copper Aluminum 0
