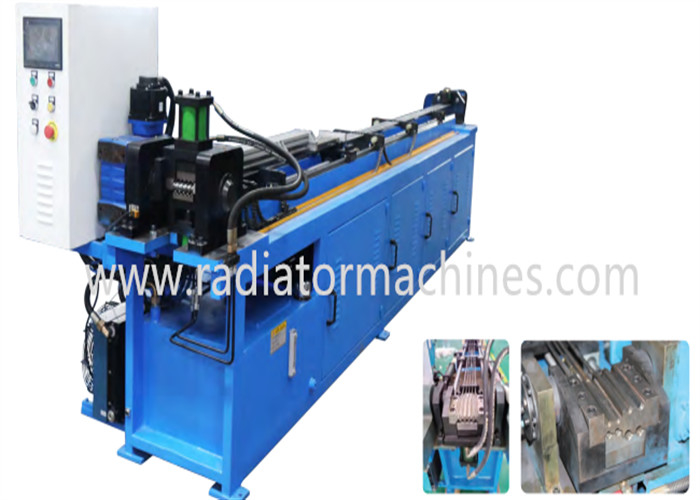

Semi Automatic Hairpin Bender Industrial Bending Machine 5 Lines

Semi Automatic Hairpin Bender Industrial Bending Machine 5 Lines

Semi Automatic Hairpin Bender Industrial Bending Machine 5 Lines
Semi Automatic Hairpin Bender Industrial Bending Machine 5 Lines Semi Automatic Hairpin Bender Industrial Bending Machine 5 Lines

Large Image :  Semi Automatic Hairpin Bender Industrial Bending Machine 5 Lines

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE
Model Number: HSPK45
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case or Nude Package Suitable for Sea Transportation
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Name: Semi Auto Hairpin Bender Max Tube Expansion Length: 3000mm
Pipe Diameter: φ5-φ15.88 Application: HVAC
Tube Wall Thickness: 0.25-0.8mm Bending Line: 4,5 Lines
High Light:

Semi Automatic Hairpin Bender

,

5 lines Hairpin Bender

,

Industrial Hairpin Bending Machine

Semi Automatic Hairpin Bender , Hairpin Bending Machine



1. Application

The semi-automatich hairpin bender is simple and of compact

design structure. It is suitable for low volume production of hairpin

bends. It can be used to bend the hairpin bend with length from

200mm to 3000mm. The semi automatic hairpin bender can produce

hairpin bends with 4 pcs per cycle and 5 pcs per cylce according to

diffrent specification and application.



2. Structure Features

1.1 The semi automatic haripin bender is of compact design.

1.2 It is designed with servo motor driving.

1.3 It is with manual feeding.



2. How does a semi automatic hairpin bender work?

First material feeding by manual → mold tooling clamping → oil spraying→

bending→ mandrel back→ clamp release→ unloading the hairpin bend→

unloading mechanism return to origin→ bending mechanism return to origin



3. Technical Parameters

Item



Specification



Equipment Name Semi auto hairpin bending machine for HVAC equipment
Model WDLB-4 WDLB-5
Tubes Bended One Time 4/5 Pcs per cycle
Pipe Diameter mm

ф5-Ф15.88



Tube Wall Thickness Range mm

0.25-0.8



Center Distance (mm)

According to the fin drawing





Min Bending Length (mm)

200



Max Bending Length (mm)

3000

Cycle



≤12S (According to the work piecelm length)



Feeding Mode

By hand




4. Main Components

Item Origin
Control System Omron,Japan
Pneumatic Components SMC
Hydraulic valve YUKEN
Electrical components (limit switch, control switches, contactor, relay, and so on) Schneider




5. Acceptance Testing Standard

The semi automatic hairpin bending machine is to be accepted while the following

indexes are met.
5.1 Hairpin Leg difference in length less than 0.5MM.
5.2 No obvious clashing, abnormal bumping, corrugation or other defects. Ellipse less than 8%
5. 3. Roundness tolerance of straight part <±0.3mm;
5.4 Parallel tolerance for the two straight legs ≤3%;
5.5 The machine should run smoothly.



6. Company Introduction


We are specialized d in Heat Exchanger products industry more than 15years.

We are currently the one of leading manufacturer of machinery for both the

mechanically expanded and brazed micro channel heat exchanger industry, globally.

One of our typical customer is Mahle Behr. Our goals and long-term commitment is

to constantly evolve our heat exchanger equipment, using research and

development skills and vast production capacity. We operate in all areas of Air

Conditioning, Radiator,Heater Core,Charge Air Coolers,Condensers, Evaporators

for Truck and Car, Complex range of Fin Machines, Fin Presses,Core Builders,

Tube Hairpin Benders, Vertical Expander, Horizontal Expander, Straight tube

cut off, High Speed cut off, Return Benders, Ring Loading, Full range of

mechanical presser. We have a stringent quality control system and all

non-standard machine part is processed by ourselves.

We have supplied our equipment all over the world totaling more than

40 countries.

We provide an energy saving, environmental protective, high efficiency,

safety and precision service to the heat exchanger marketplace and

contribute our strength to provide a nice warm/cool word.
