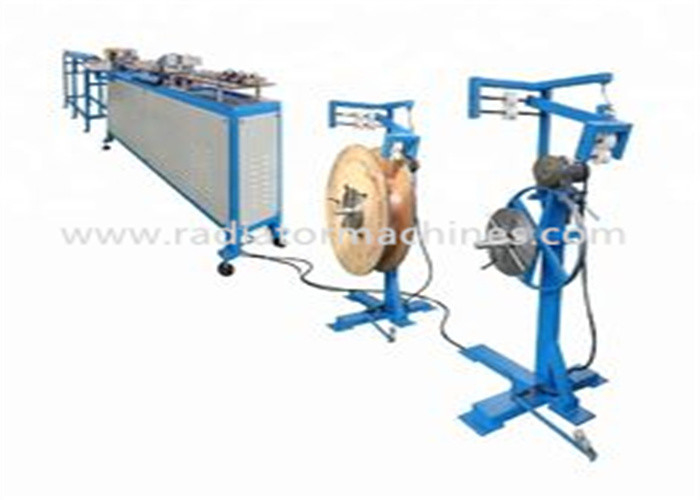

3.8KW Aluminum Copper Pipe Straightening Cutting Machine

3.8KW Aluminum Copper Pipe Straightening Cutting Machine

3.8KW Aluminum Copper Pipe Straightening Cutting Machine
3.8KW Aluminum Copper Pipe Straightening Cutting Machine

Large Image :  3.8KW Aluminum Copper Pipe Straightening Cutting Machine

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE
Model Number: HSPK45
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case or Nude Package Suitable for Sea Transportation
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Name: Aluminum Pipe Straightening And Cutting Machine Pipes Cut One Time: 2/4/6 Pcs
Warranty: 12 Months Application: HVAC Equipment
Function: Straightening And Cutting Of Coil Pipe Power: About 3.8KW
High Light:

Straightening Cutting Machine

,

3.8KW Copper Pipe Straightening Machine

,

aluminum pipe straightening Machine

Aluminum Copper Pipe Straightening Cutting Machine



1. Application

The copper pipe straightening and cutting machine is used to straighten

and cut the copper or aluminum pipes into a setting length.



2.Structural Features

2.1 This HVAC equipment is comprised of coil feeding, straightening and

rounding system in two directions of facade and plane, external

rotation cutter to cut the aluminum and copper pipes.

2.2 Driven by servo motor, the maximum length of one feeding is

1m, and length more than 1m can be fed by multiple times, which

can be set on the touch screen.

2.3 The straightening is carried out in 2 directions, horizontally and

vertically, which can effectively realize the rounding and straightening

of copper/aluminum pipes.

2.4 choice of decoiler

2.4.1 single station electrically driven material rack and aluminum

alloy material tray (bearing weight ≤ 150kg).

2.4.2 double station electric drive material rack and aluminum alloy

material tray (bearing weight ≤ 150kg).

2.4.3 gantry material rack, suitable for pipe coil with diameter less than 9.52mm.

2.5 cutting device of pipe coil straightening cutting machine: copper/aluminum

pipe cutting device with external rotation cutter and supporting wheel.



3.Technical Parameters



Item

Specification



Model XZJ-2 XZJ-4 XZJ-6
Max Qty of Processing 2 4 6
Apply Diameter

Copper tube,aluminum tube



Pipe Diameter Customized
Thickness Range 0.25-1mm

Production Cycle



6m/min for each pipe



Feeding Mode Servo motor and ball screw

Control System



Automatic PLC and touch screen interface



Min Cutting Length



80 mm



Max Setting Length



Customized
Coil Size ID130*OD1100*thickness 350 mm

Feeding Mode



Outside or inside pump type



Air Pressure



0.4-0.6Mpa



Total Power About3.8KW



4.How does the aluminum copper pipe straightener work?

It can automatically complete the whole set of actions necessary to straighten the coil.

The working sequence is as follows: copper/aluminum pipe feeding → straightening →

fixed length cutting → snapping → resetting and starting the cycle again.
