Radiator Aluminum Corrugated Fin Forming Machine Stepless Control

Product Details

Place of Origin: Jiangsu, China (Mainland)

Brand Name: WONDERY

Certification: CE

Model Number: GP-100*8

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: wooden case suitable for sea transportation

Delivery Time: 90 Days

Supply Ability: 300 Sets per Year

Get Best Price
Product Details
Highlight:

stepless control Aluminum Fin Machine

,

Radiator corrugated fin forming machine

,

100m/min corrugated fin forming machine

Product Name:
Radiator Fin Machine
Max Width:
100mm
Weight:
1.8 Ton
Aluminum Foil Thickness:
Min 0.7mm
Fin Height Accuracy:
+/- 0.05mm
Fin Height:
8mm
Product Name:
Radiator Fin Machine
Max Width:
100mm
Weight:
1.8 Ton
Aluminum Foil Thickness:
Min 0.7mm
Fin Height Accuracy:
+/- 0.05mm
Fin Height:
8mm
Product Description



Radiator Aluminum Fin Forming Machine

The hot selling radiator aluminum corrugated fin forming machine is used to produce heat exchange wavy fins with or without windows.
The radiator aluminum corrugated fin forming machine is equipped with the following devices: decoiler, tensioning device, feeding, interval oil lubrication, fin forming, correction and cuttig function, strip run-out detection, blockage detection device, cutting fault indicator, fin forming unit overloading protection device, and fault indication light.

Thealuminum corrugated finforming machine adopts PLC, inverter, AC servo control, and touch screen control. The parameters are easily set through the touch screen.

Radiator Aluminum Corrugated Fin Forming Machine Stepless Control 0



Parameters of Aluminum Fin

Fin Height 8mm+/-0.05mm
Fin width Max 100mm
Fin pitch 3-4mm
Fin louver angle 28 degree (-3-0)

We would customize the fin design based on the customer's requirement.



Radiator Aluminum Corrugated Fin Forming Machine Stepless Control 1



Parameters of Aluminum Fin Machine

Power supply 3Phase, 380V 50HZ
Total power 4.5KW
Working speed 0-100m/min stepless control
Fin production efficiency 1000-4000 fin convolutions per minute; regulation by inverter control;
Cutting frequency max 60 times/ min
Protection measure organic glass cover around the main machine body
Cutting accuracy servo control; ±0 fin; cut at the crest;
Equipment Weight About 1.8Ton
Equipment overall size 4000X900X1800M
Air source requirement air pressure >0.5Mp, Q>0.1m3/ min, dry and cool compressed air
Aluminum foil size

ID: 200±20 mm (adjustable);

OD: ≤1200mm





Supply Scope of Aluminum Fin Machine



Decoiler 1 set
megnetic powder 1 set
magnetic powder brake force automatic adjustment device 1 set
feeding motor 1 set
feeding device 1 set
feeding speed feedback adjustment mechanism 1 set
electrical control cabinet 1 set
fin entering tension adjustment mechanism 1 set
fin forming roller 1 set
fin conveyance device 1 set
fin collection device 1 set
counting and cutting device 1 set
operation box 1 set
machine body 1 set
main drive 1 set
main drive tensioning 1 set
pneumatic circuit board 1 set





FIN STACKER FOR STCKING THE FINS



Radiator Aluminum Corrugated Fin Forming Machine Stepless Control 2



HIGH SPEED ALUMINUM FIN MACHINE FOR HEAT EXCHANGERS:

Radiator Aluminum Corrugated Fin Forming Machine Stepless Control 3



Description of Radiator Fin Machine



The equipment adopts replacable devices and one fin machine can be used to produce different fin models.

The operator could change the fin forming roller and other necessary parts, and make the necessary adjustments

to produce different fin models.



The aluminum fin machine is used to produce heat exchange wavy fins at fin height 8mm (could be customized

based on customer's requirement). The electrical control system of the fin making machine relies on PLC, inverter,

AC servo control, and touch screen control. The operator could set up the parameters on the touch screen.







Related Products:

Welcome to watch youtube links for related machines:

radiator fin machine: https://youtu.be/27x4jRE0yKk

core builder machine with tube distributor: https://youtu.be/Zk5QD6yWzUU

radiator plastic tank clinching machine:https://youtu.be/And1JG9hCQU

aluminum brazing furnace: https://youtu.be/ENbmX6upTa4

high speed aluminum fin press:https://youtu.be/dzNBUEXNXo0

progressive fin die: https://youtu.be/RyNLcW1m5yw

hairpin tube bender machine:https://youtube.com/shorts/x14XtaY7ito

horizontal tube expander machine: https://youtu.be/gMvQg2IkLJw

vertical tube expander machine: https://youtu.be/Vfenr6yDoio

short U tube cleaning machine: https://youtube.com/shorts/l-Pun2ccWIE

short U tube bending machine: https://youtu.be/mEGi4hzKovw

welding ring inserting machine:https://youtu.be/1VyFQbu6Q0I









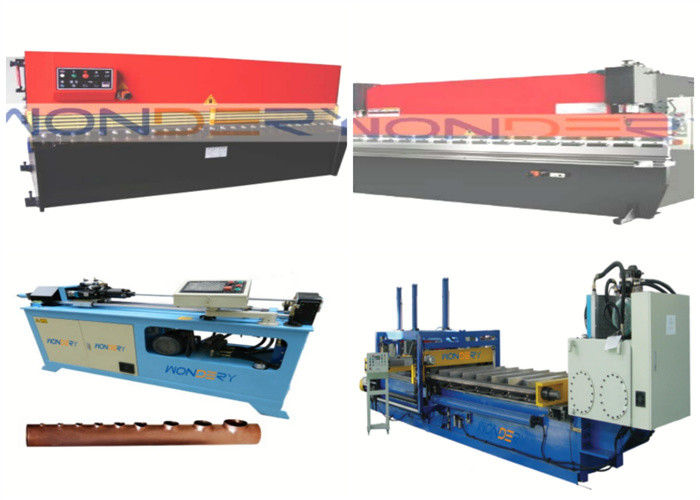

Radiator Making Machines Series:
