Car Aluminum Radiator Condenser Fin Making Machine For Heat Exchanger Fin Rolling

Car Aluminum Radiator Condenser Fin Making Machine For Heat Exchanger Fin Rolling

Brand Name:	WONDERY
Model Number:	CYJ-120*1D-500
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	60 Days

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China (Mainland)

Certification:

Machine Name:

Radiator Fin Machine

Max Effective Width:

Max 500mm

Warranty:

1 Year

Fin Die Closing Height:

136 Mm

Stamping Force:

7500 Kgs

Voltage:

380V 3P 50HZ

Packaging Details:

wooden case suitable for sea transportation

Supply Ability:

100 Sets per Year

Highlight:

Radiator Fin Making Machine

Condenser Fin Making Machine

Heat Exchanger Fin Rolling Machine

Product Description

Car Aluminum Radiator & Condenser Fin Making Machine For Heat Exchanger Fin Rolling

For car radiator manufacturing plant, basically you should have:

1) Aluminum fin making machine

2) Radiator core builder

3) Nitrogen gas shield continuous brazing oven

4) Radiator tank clinching machine

5) Radiator leak tester

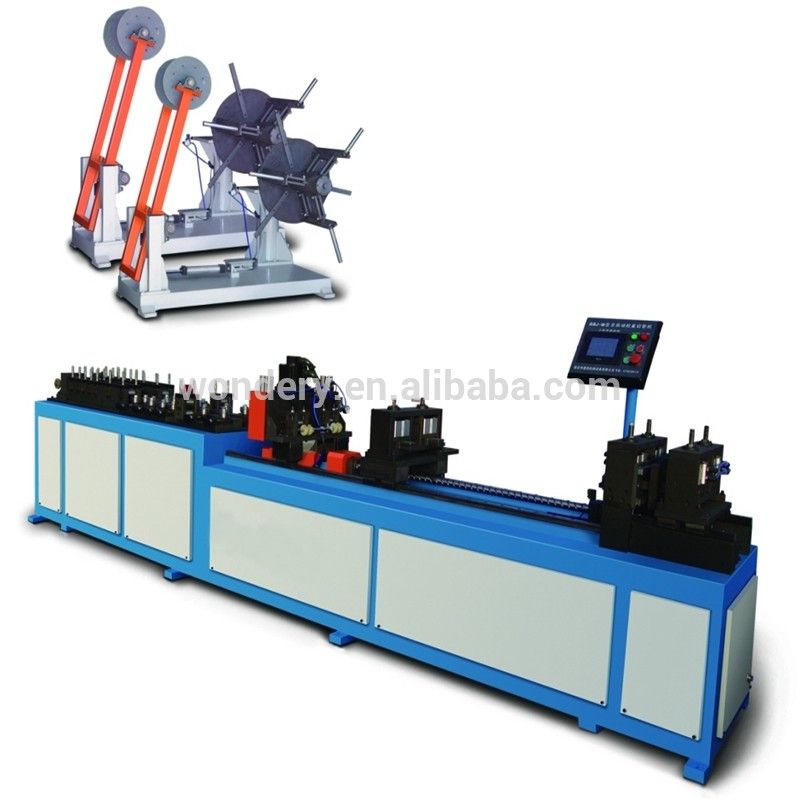

This aluminum fin making machine is special designed for forming aluminum foil coil into wave type fin continuously for heat exchanger, radiator and condenser / evaporator purpose.
This machine has many functions such as decoiling, tensioning, feeding, automatic spraying lubricant, fin rolling, fin fixing, automatic cutting, non-material detecting, blade-blocking auto detecting, over-load automatic stopping, etc. It is PLC control, inverter speed adjustable, servo feeding, touch screen operation, simple and convenient. The machine adopts tooling quick changeable design for rolling different fins.

Parameters

Fin machine speed is 120SPM.

Material: 3003 aluminum, stainless steel, copper

Fin height:3-12mm

Max fin width:500mm

Punching force: 7500kgs

Fin type: lanced offset fin

Warranty: 1 year.

Components List

No.	Item	Brand
1	Pneumatic components	AIRTAC/SMC
2	PLC	Mitsubishi
3	Inverter	Mitsubishi
4	Servo motor and drive	Mitsubishi
5	Touch screen	Mitsubishi
6	Electrical components	Schneider, Omron,Delixi, CHINT, etc.

Machine Color

The fin machine surface is anti-rust treated.

Main color: industrial gray; RAL 7035. (customized)

Protection grid color: metal color. (customized)

Movement area, dark orange; RAL2011. (customized)

Company Introduction

Our company mainly supplies the aluminum radiator making machines such as radiator aluminum fin machine,

radiator core builder machine, radiator plastic tank crimping machine, radiator air leak tester, header and side plate die,

plastic tank die, etc. We need to receive the product drawings before making an accurate quotation.
