|Name:||Mesh Belt Furnace||Quenching Capacity:||300-500 Kg/h|
|Warranty:||1 YEAR||Mesh Belt Size:||600*8000mm|
|Working Temperature:||820～950℃||Total Weight:||50000 Kg|
500kg/h Quenching Furnace,
Continuous Mesh Belt Quenching Furnace,
500kg/h Mesh Belt Furnace

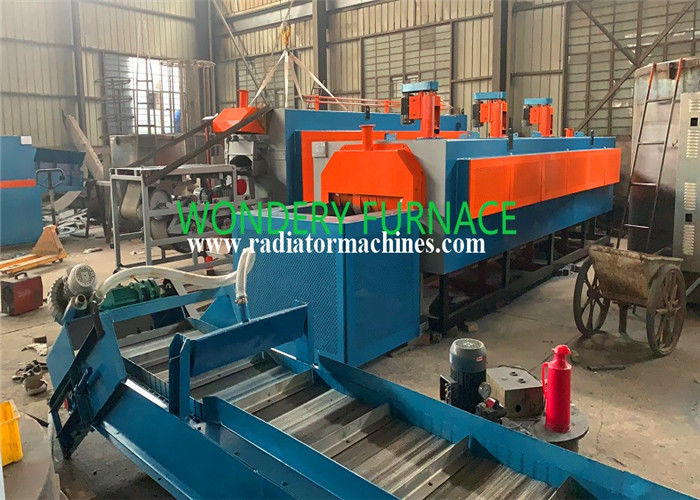

Continous Mesh Belt Quenching Furnace For Screw Heat Treatment And Concrete Nails
Continous mesh belt quenching furnace for screw heat treatment is widely used for heat treatment of mechanical parts like automobile fittings, fastening, chains, bearings and mechanical parts for tools etc. The furnace has the functions of automatic charging, carburizing (or carburizing &
nitriding), quenching, cleaning, cooling and tempering. The computerizing office management is available through a computer control system equipped.
Main Features of Mesh Belt Furnace
1 General Introduction
1.1 The mesh belt furnace heat treatment line combines the advanced technologies from Taiwan. Its
key parts are imported from overseas.
1.2 The mesh belt furnace production line is comprised of magnetic belt charging machine, pre-cleaning machine,
support roller quenching furnace, quenching tank, oil removing stand, post-cleaning machine, support-roller mesh
belt tempering furnace, and electrical control system.
2.1 To meet the production needs of fastening parts, the furnace employs Taiwan technology, and improves its
energy-saving effect in the area of refractory lining.
2.2 The production line employs low-voltage heating through the transformer to prolong the service life of the
2.3 The mesh belt is supported by the support rollers with synchronized movement so that the mesh belt bears
a minimum tension.
2.4 The rollers are supported by special high-pressure sealed bearing.
2.5 The mesh belt is designed with abnormal transportation alarm device to assure the stable movement of the mesh belt.
2.6 The drip-in atmosphere is gasified by a gasifier and then sent into the furnace. The atmosphere is monitored and
controlled continuously by an oxygen probe.
2.7 The hot mesh belt returns back to the entrance of the furnace and preheats the cold partss, which saves
Parameters of Total Mesh Belt Furnace Line
1 Total loading power: 500kw; normal power: 350kw; power supply 3phase, 380v, 50Hz;
Equipment Specification of Each Unit
4.1 charging machine
Mesh belt width: 600 mm
500 kg/hour Mesh Belt Furnace , Mesh Belt Conveyor Furnace for Self Tapping Screws:
