Automatic Pipe Bending Production Line With High Bending Accuracy

Name: Automatic Pipe Bending Production Line With High Bending Accuracy
Brand: Wuxi Wondery Industry Equipment Co., Ltd
SKU: CNC-18RED
Price: 15.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu,China(Mainland)

Brand Name: WONDERY

Certification: CE

Model Number: CNC-18RED

Payment & Shipping Terms

Minimum Order Quantity: 1 Set/Sets

Price: Negotiable

Packaging Details: wooden case suitable for sea transportataion

Delivery Time: 45 working days

Payment Terms: L/C, T/T

Supply Ability: 100 Set/Sets per Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                High Accuracy Pipe Bending Production Line, Automatic Pipe Bending Production Line, high Accuracy automatic steel bending machine


Name:	Automatic Pipe Bending Production Line	Model:	CNC-18RED
Max.bending Capacity:	18×1.6 Mm	Bending Radius Range:	10-100 Mm
Max.pipe Diameter For Reciprocating Feeding:	20 Mm	Bending Angle Range:	190°

Name:	Automatic Pipe Bending Production Line
Model:	CNC-18RED
Max.bending Capacity:	18×1.6 Mm
Bending Radius Range:	10-100 Mm
Max.pipe Diameter For Reciprocating Feeding:	20 Mm
Bending Angle Range:	190°

Product Description

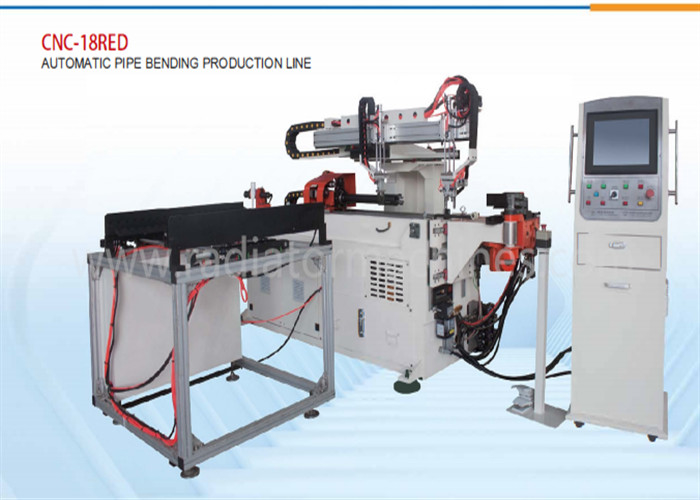

Automatic Pipe Bending Production Line With High Bending Accuracy

1.Equipment Features

metal sheet bending machine is driven by Y (feeding),B(rotating pipe),C (bending pipe),

Z(stripping), X(upper axis)and 5 axis electrical servo.The above 5-axis electric

servo drive,with precise trolley servo angle,bending accuracy of 0.01°,feeding

accuracy of 0.01mm,adopts electric servo drive to avoid the defect of common

pipe bending machine precision affected by oil temperature,suitable for high-load,

mass production.

Equipped with automatic feeding rack to achieve a greater degree of automation,

one person can simultaneously operate multiple equipment automatic loading and

unloading instead of manual operation,can well control the beat,avoid the impact of

human factors on the production beat greatly improve the production efficiency.

2.Main Technical Parameters

Model	CNC-18RED
Max.bending capacity (carbon steel)	18×1.6 mm
Bending radius range (round pipe)	10-100 mm
Max.pipe diameter for reciprocating feeding	20 mm
Bending angle range	190°
