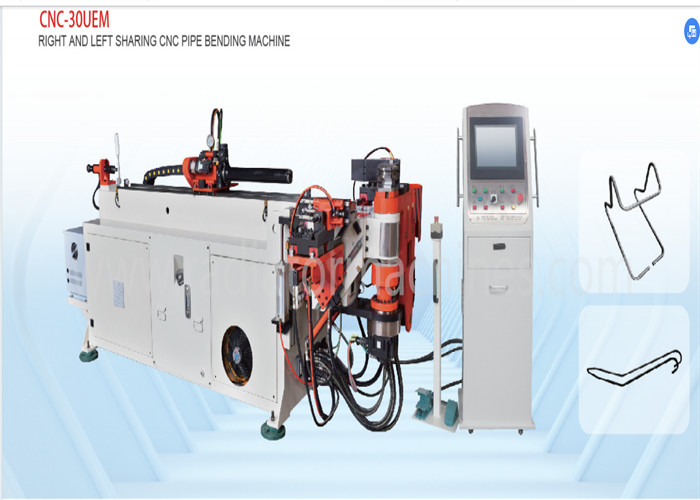

Symmetrical Workpiece CNC Pipe Bending Machine With Left And Right Co Rotation

Name: Symmetrical Workpiece CNC Pipe Bending Machine With Left And Right Co Rotation
Brand: Wuxi Wondery Industry Equipment Co., Ltd
SKU: CNC-30UEM
Price: 15.00 USD
Availability: InStock

Brand Name:	WONDERY
Model Number:	CNC-30UEM
MOQ:	1 Set/Sets
Price:	Negotiable
Delivery Time:	45 working days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu,China(Mainland)

Certification:

Name:

Right And Left Sharing CNC Pipe Bending Machine

Model:

CNC-30UEM

Max Bending Capacity:

28x1.5 Mm

Bending Radius Range:

10-85 Mm

Max Pipe Diameter For Reciprocating Feeding:

25.4 Mm

Bending Angle Range:

190°

Packaging Details:

wooden case suitable for sea transportataion

Supply Ability:

100 Set/Sets per Year

Highlight:

Symmetrical Workpiece Pipe Bending Machine

CNC Pipe Bending Machine

Rotation CNC Pipe Bending Machine

Product Description

Symmetrical Workpiece Bending With Left And Right Co-Rotation CNC Pipe Bending Machine

1.Equipment Features

The CNC pipe bending machine is driven by Y(feeding),B(rotating pipe),C (bending pipe),

X(left and right displacement of automatic mould changing),Z(up and down changing

mould position in seconds),G (rotating mould axis)six-axis electrical servo.The above

six axis electrical servo drive,with precision trolley servo angle,bending precision of

0.05°,feeding accuracy of 0.05mm.The electric servo drive avoids the defect that the

accuracy of common pipe bending machine is affected by oil temperature, suitable for

high-load,mass production.Automatic mould changing adopts the principle of the head's

top, bottom,left and right displacement to avoid the pipe fitting shaking caused by the

displacement of the feeding seat.The machine head has the function of co-rotation

of left and right sides,which can bend the symmetrical workpiece and some parts with

complicated shape,avoiding the defect of replacing the machine to make up the bending

of the complicated workpiece of the single-rotation pipe bending machine,greatly improving

the precision of the bending workpiece,saving time,manpower and space.

2.Main Technical Parameters

Model	CNC-30UEM
Max.bending capacity (carbon steel)	28x1.5 mm
Bending radius range (round pipe)	10-85mm
Max.pipe diameter for reciprocating feeding	25.4mm
Bending angle range	190°
