Precision 8 Axis Automatic Bending Machine For Mass Production Needs

Name: Precision 8 Axis Automatic Bending Machine For Mass Production Needs
Brand: Wuxi Wondery Industry Equipment Co., Ltd
SKU: CNC-38RET
Price: 15.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu,China(Mainland)

Brand Name: WONDERY

Certification: CE

Model Number: CNC-38RET

Payment & Shipping Terms

Minimum Order Quantity: 1 Set/Sets

Price: Negotiable

Packaging Details: wooden case suitable for sea transportataion

Delivery Time: 45 working days

Payment Terms: L/C, T/T

Supply Ability: 100 Set/Sets per Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                8-Axis Automatic Bending Machine, Precision Automatic Bending Machine, Mass Production steel bending machine automatic


Name:	All-Electric CNC Pipe Bender	Model:	CNC-38REM
Max Bending Capacity:	38x1.8 Mm	Bending Radius Range:	30-200 Mm
Max Pipe Diameter For Reciprocating Feeding:	30mm	Bending Angle Range:	190°

Name:	All-Electric CNC Pipe Bender
Model:	CNC-38REM
Max Bending Capacity:	38x1.8 Mm
Bending Radius Range:	30-200 Mm
Max Pipe Diameter For Reciprocating Feeding:	30mm
Bending Angle Range:	190°

Product Description

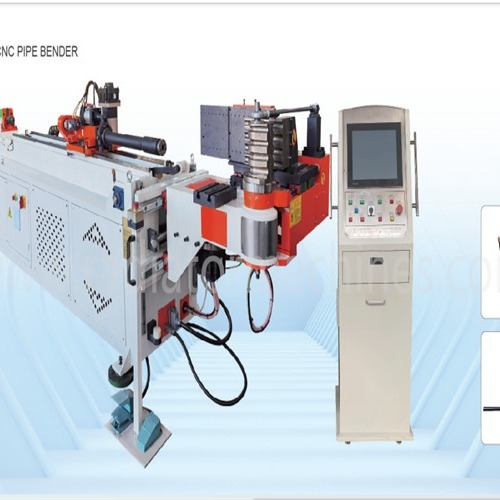

Precision 8-Axis Automatic Bending Machine for Mass Production Needs

1.Equipment Features

The pipe bender is driven by Y(feeding),B (rotating pipe),C (bending),Z (demoulding),

X(changing die),A (auxiliary push),J1J2(clamping)8-axis servo drive. The above 8

axes are electric servo drive,with precision trolley servo angle,pipe bending accuracy

of 0.05 °,feeding accuracy of 0.05mm.The electric servo drive avoids the defect that

the accuracy of the ordinary pipe bender is affected by oil temperature,and is suitable

for high load and mass production.

2.Main Technical Parameters

Model	CNC-38REM
Max.bending capacity (carbon steel)	38x1.8 mm
Bending radius range (round pipe)	30-200mm
Max.pipe diameter for reciprocating feeding	30mm
Bending angle range	190°
