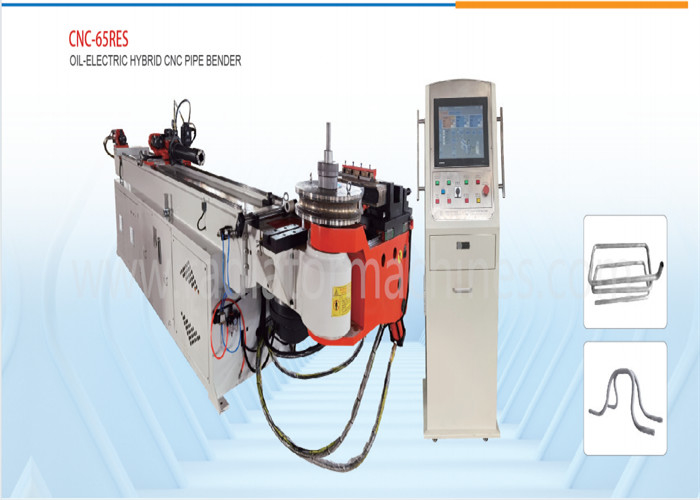

YBC Servo Control Automatic Tube Bender Machine Mass Production

Name: YBC Servo Control Automatic Tube Bender Machine Mass Production
Brand: Wuxi Wondery Industry Equipment Co., Ltd
SKU: CNC-65RES
Price: 15.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu,China(Mainland)

Brand Name: WONDERY

Certification: CE

Model Number: CNC-65RES

Payment & Shipping Terms

Minimum Order Quantity: 1 Set/Sets

Price: Negotiable

Packaging Details: wooden case suitable for sea transportataion

Delivery Time: 45 working days

Payment Terms: L/C, T/T

Supply Ability: 100 Set/Sets per Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Mass Production automatic tube bender machine, Mass Production Bending Machine, YBC Servo Control Bending Machine


Name:	Oil-Electric Hybrid CNC Pipe Bender	Model:	CNC-65RES
Max Bending Capacity:	63.5x2.0mm	Bending Radius Range:	30-260 Mm
Max Pipe Diameter For Reciprocating Feeding:	40mm	Bending Angle Range:	190°

Name:	Oil-Electric Hybrid CNC Pipe Bender
Model:	CNC-65RES
Max Bending Capacity:	63.5x2.0mm
Bending Radius Range:	30-260 Mm
Max Pipe Diameter For Reciprocating Feeding:	40mm
Bending Angle Range:	190°

Product Description

YBC Servo Control Automatic Bending Machine for Mass Production

1.Equipment Features

The pipe bender is driven by Y (feeding),B (rotating pipe),C (bending pipe)and

3-axis electrical servo.The above 3-axis electrical servo drive,with precision trolley

servo angle,pipe bending accuracy of 0.05°,feeding accuracy of 0.01mm.The

electric servo drive avoids the defect that the accuracy of the ordinary pipe bender

is affected by oil temperature,and is suitable for high load and mass production.

2.Main Technical Parameters

Model	CNC-65RES
Max.bending capacity (carbon steel)	63.5x2.0mm
Bending radius range (round pipe)	30-260mm
Max.pipe diameter for reciprocating feeding	40mm
Bending angle range	190°
