Highlight:
Encoder Tracking Automatic Bending Machine
, High Precision Automatic Bending Machine
, Exhaust Pipe Automatic Bending Machine

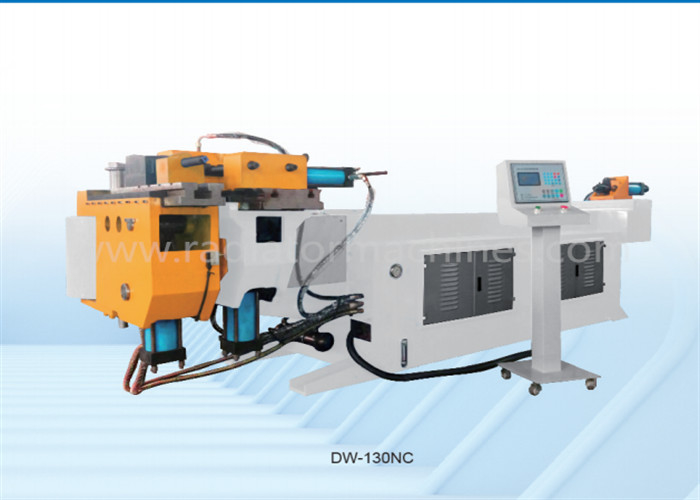

Encoder Tracking High Precision Automatic Bending Machine for Exhaust Pipe
1.Equipment Features
· It is widely used in larger standard products,E.G.exhaust pipe,seat,bumper,all steel
furniture and etc
· Machine is beautiful and delicate,and provides the space for the biggestbending pipe.
· Adopting single chip microcomputer control,easy to operate.
· The angle of bending uses encoder tracking and give a feedback with ahigh bending
precision
· Storaging of multiple sets of processing mode,flexible switchingbetween different
specifications.
· With automatic counting and power-off memory function.
· Equipped with hydraulic cooling system to ensure the stability of themachine.
· Large and medium-sized pipe bending machine with boosting design,can solve the
trouble of big radius,big angleand tin bending pipe.
· Adopting touched operation panel by single chip computer control,man-machine
conversation operating,very convenient.
· The angle of bending uses encoder tracking and give a feedback with ahigh bending
precision.
· With automatic counting and power-off memory function.
· Equipped with water cooling system to ensure the stability of themachine for a long time
2.Main Technical Parameters
| NAME /MODEL |
单位 |
DW-130NC |
| Max.bending diameter,wall thickness |
mm |
φ130×8 |
| Max.bending radius |
mm |
R520 |
| Min.bendingradius |
mm |
R≥1.5D |
| Max.bending angle |
|
190 |
| Standard core length |
mm |
4500 |
| Control system |
|
微电脑控制 |
| Number of pipe bending |
件 |
16 |
| Can store part number |
组 |
16×16 |
| Oil-pressure motor power |
kw |
22 |
| Max.system pressure |
Mpa |
14 |
| Hydraulic system control |
|
电磁阀 |
| Fuel tank volume |
L |
400 |
| Machine dimension |
mm |
5700x1600x1300 |
| Machine weight |
kg |
8000 |
