DW38CNC-3A1S Fully Automatic Bending Machine For Rectangle And Round Pipes

Name: DW38CNC-3A1S Fully Automatic Bending Machine For Rectangle And Round Pipes
Brand: Wuxi Wondery Industry Equipment Co., Ltd
SKU: 38CNC-3A1S
Price: 15.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu,China(Mainland)

Brand Name: WONDERY

Certification: CE

Model Number: 38CNC-3A1S

Payment & Shipping Terms

Minimum Order Quantity: 1Set/Sets

Price: Negotiable

Packaging Details: wooden case suitable for sea transportation

Delivery Time: 45 working days

Payment Terms: L/C, T/T

Supply Ability: 100Set/Sets per Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Rectangle Pipe Bending Machine, Fully Automatic Pipe Bending Machine, Round Pipes Bending Machine


Machine Name:	Automatic Pipe Bending Machine	Model:	DW38CNC-3A1S
Min Bending R For Copper Pipe Is:1.5D:	Ø38X 3.8mm	Min Bending R For S.s Pipe Is 1.5D:	Ø30X 2.5mm
Availability Length Of Bending Pipe:	2000mm	Max R For Bending:	280mm
Max Angle For Bending:	185°	Electrical Motor Power:	5.5KW
Weight:	2250kg	Size:	4200X1200X1400

Machine Name:	Automatic Pipe Bending Machine
Model:	DW38CNC-3A1S
Min Bending R For Copper Pipe Is:1.5D:	Ø38X 3.8mm
Min Bending R For S.s Pipe Is 1.5D:	Ø30X 2.5mm
Availability Length Of Bending Pipe:	2000mm
Max R For Bending:	280mm
Max Angle For Bending:	185°
Electrical Motor Power:	5.5KW
Weight:	2250kg
Size:	4200X1200X1400

Product Description

DW38CNC-3A1S Fully Automatic Bending Machine for Rectangle and Round Pipes

1.Photo of the machine

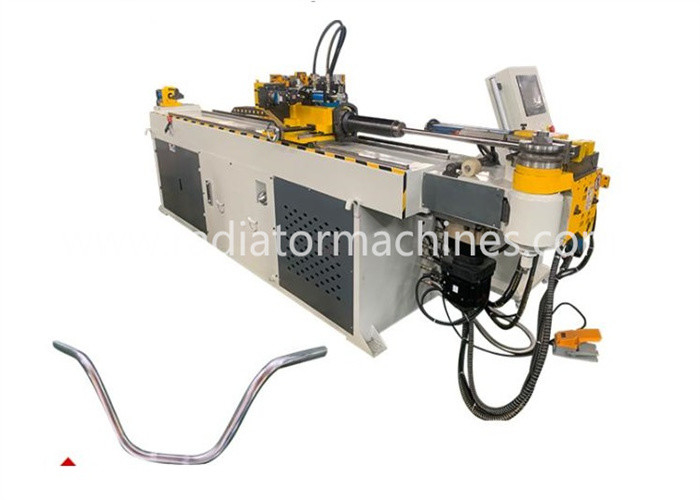

(1)Overall picture of the machine

(2)Bending mold for rectangle pipe and round pipe

2.Product Description
Adapted material:
steel pipe, stainless steel, copper pipe, aluminum pipe; metal pipe
Recommended application industry:
auto mobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment,
air-conditioning, bicycle, steel furniture, sanitary wares and so on.

3.Main specification

^{1. Automatic recognition of power in machine and work piece, the processing is both quick and good}
^{2. Slow returning core, boosted by barrow, imporving the apprearance of the angle.}
^{3. The whole operation is in the computer, simple, quick and correct}
^{4. Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the}
^operation ^{simple, quick and correct}
^{5. Rebound test: comparison test on the features of lots of pipe materials}
^{6. Single-step debugging function- a careful observe on the deformation of the pipe material during the}
^{trail manufacture} ^{of dies.}
^{7. Automatic drawing of the graphics of dies-clear help to develop new products}
^{8. Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion,}
^{voltage, temperature,} ^{oil pressure, and automatically diagnose the troubles}
4.Technical parameter

program Machine type		DW38CNC-3A1S
Min bending R for copper pipe is:1.5D		Ø38X 3.8mm
Min bending R for s.s pipe is 1.5D		Ø30X 2.5mm
Availability Length of bending pipe		2000mm
Max R for bending		280mm
Max angle for bending		185°
Bending process for every pipe		16
Working rate	Bend rate	Ma×85°/sec
	Rotary rate	Ma×280°/sec
	Feeding rate	Ma×700mm/sec
Working accuracy	Bend angle	±0.1°
	Rotary angle	±0.1°
	Feeding length	±0.1mm
Watt of oil press electrical machine		14mpa
Information inputting method		Axis (Y,B,C)
Bending method		Servo
Max bending group		500
Power of rotary Servo motor		400 W
Power of feeding Servo motor		1.5KW
Power of bending Servo motor		5KW
Electrical motor power		5.5KW
Weight of machine		2250kg
Size L W H(mm) 3A1S		4200X1200X1400

5.Main Mechanical parts

No.	Name	Origin	Brand name	Service
1	Air switch	China	CHINT	2year
2	Air switch	China	CHINT
3	Ac contactor	China	CHINT
4	Thermal relay	France	schneider
5	Transformer	China	JIUCHUAN
6	Micro switch	Japan	Omron
7	Switch power	Taiwan	Meanwell
8	Servo electric system	Japan	400W Mitsubishi
			1.5KW Mitsubishi
			5KW Mitsubishi
9	PLC (CPU)	Japan	Mitsubishi
10	Touch screen	Taiwan	Weinview
11	Approach switch	Japan	Omron
12	Relay	Japan	Omron
13	Coder	Japan	Omron

6.Mechanical parts and components

1	Slowdown machine	Taiwan PHT	2Year
2	Beeline guide track	Taiwan HIWIN
3	Bearing	Japan NSK
4	Ball screw	Taiwan HIWIN
5	Guide slider	Taiwan HIWIN
6	IPC	Taiwan ADVANTECH	Optional
7	Operating system	China DASONG	2Year

7.Hydraulic pressure system

No.	Name	Origin and Brand	Service
1	Various magnetic valve	Japan Yuken	2year
2	Oil Tank	Shanghai Baoshan
3	Seal ring	Japan Valqua
4	Oil pipe	Taiwan Lianhui
5	Oil pump motor	CHINA TAIHU
6	Oil pump	CHINA TAIHU
