Max diameter of adapted carbon-steel pipe, Φ40X2mm arc punching machine

Max diameter of adapted carbon-steel pipe, Φ40X2mm arc punching machine

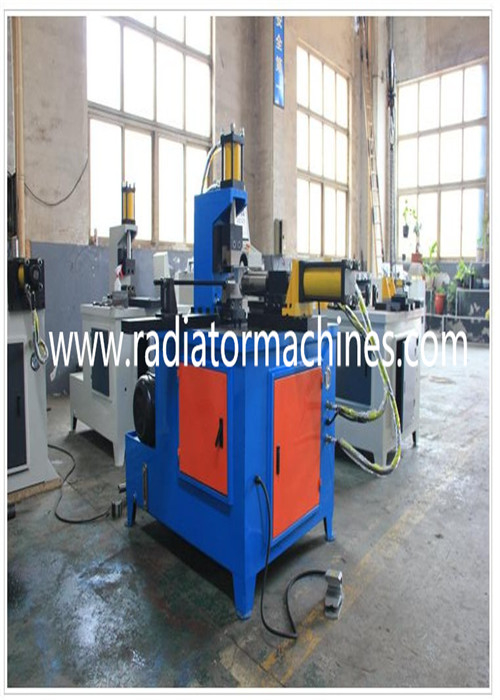

1.Picture of the machine

(1)Picture of Pipe mold

2. Description of arc punching machine

The function of the arc punching machine is to open the steel pipes and stainless steel pipes of various diameters and wall thicknesses into various arc shapes for welding and chromium plating. If the pipe diameter is different or the wall thickness is different or the opening shape is different, the punch and punch mother are different.The working principle is that the hydraulic pump is driven by the oil pump motor and controlled by the electromagnetic directional valve and safety pressure control valve. The open punch installed on the oil cylinder piston rod on the worktable moves back and forth to form a staggered pattern with the die fixed on the oil cylinder seat, so as to cut off the pipe passing through the punching seat. Every time you step on the foot switch, the punch moves back and forth once, one step back and forth, and then return to the original position of the punch. If you don't step on it, it will be in the state to be cut. It has the characteristics of convenient opening, high work efficiency and low labor intensity.

3.Features of arc punching machine

The mobile foot switch has three functions: start, emergency stop and emergency stop continuation, with higher safety. The machine has the characteristics of high machining precision, small crater depression, high production efficiency and simple maintenance. Replacing different molds can meet different production needs. The replacement of molds is fast and convenient, which is convenient for the processing of small quantity and many varieties of pipes. The arc punching machine is applicable to the processing of various pipe fittings of different materials such as iron pipe, chromium molybdenum alloy steel pipe and aluminum alloy pipe. It is an ideal production equipment for bicycle, stroller, fitness equipment and steel pipe furniture manufacturers.

4.Technical parameter
