1500kg Plastic Tank Crimping Machine for Radiator Making Line

Name: 1500kg Plastic Tank Crimping Machine for Radiator Making Line
Brand: Wuxi Wondery Industry Equipment Co., Ltd
Price: 258.00 USD
Availability: InStock

Brand Name:	WONDERY
MOQ:	1
Price:	$17,500

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Weight:

1500 Kg

Core Components:

Motor

Voltage:

Customized

Operation Mode:

Automatic Crimping, Manual Loading/unloading

Control System:

PLC And Touch Screen

Crimping Method:

2-side Or 4-side Crimping

Max Header Length:

850 Mm

Max Header Distance:

1000 Mm

Max Header Width:

48 Mm

Step Distance:

Adjustable

Max Teeth Quantity:

100 Pc

Total Power:

1.5 KW

Overall Dimensions:

1900×1800×2200 Mm

Working Principle:

Push-over And Pressing Mechanism

Machine Type:

Screw Making Machine

Highlight:

1500kg radiator crimping machine

plastic tank crimping machine

radiator fin crimping equipment

Product Description

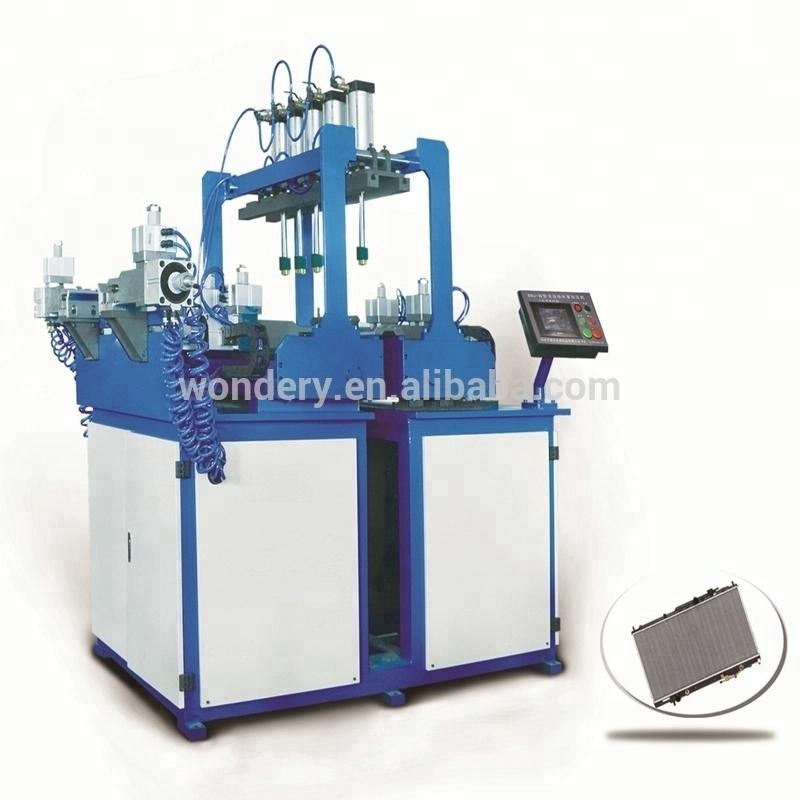

Aluminum Radiator Plastic Tank Crimping Machine

Product Application

The aluminum radiator plastic tank crimping clinching machine is used for crimping the teeth of the header plates and locking the plastic tank tight to the core body. This creates a sealed space between the crimped plastic tank, sealing gasket and header plate. This servo-controlled machine handles products of various specifications and features separate long-side header crimping and end crimping mechanisms.

Specifications

Parameter	Unit	Value
Max Header Length	mm	850mm
Max Header to Header Distance	mm	1000mm
Max Header Width	mm	48mm
Step Distance	mm	Adjustable
Max Header Teeth Quantity	pc	100
Voltage	Volt, frequency, phase	Customized
Total Power	kW	1.5
Overall Size (L×W×H)	mm	1900×1800×2200

Main Features

PLC controlled with touch screen interface for setting crimping programs
Touch screen displays working status and stores crimping parameters
Separate long header and short header crimping devices
Capable of dodge moves and step-forward moves

Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial machines specializing in equipment for automotive, HVAC, engineering vehicles, power generation, rail, and marine industries. Our product range includes radiator making machines, aluminum fin machines, brazing furnaces, and various specialized metalworking equipment. Established in 2008, we provide comprehensive services including technical consultation, installation, training, and maintenance, with exports to over 15 countries worldwide.

Frequently Asked Questions

What is the power supply of the heat exchanger making machines?

The power supply is customized to customer requirements. We can adjust voltage and phase through a transformer or match the customer's local voltage directly.

What information should the customer provide to get an accurate quotation?

Please provide technical requirements, drawings, pictures, industrial voltage specifications, and planned production output.

What is the payment term?

40% down payment, with 60% balance due before delivery (T/T transfer).

What is the delivery time?

Standard delivery time is 30-60 days after receipt of down payment.
