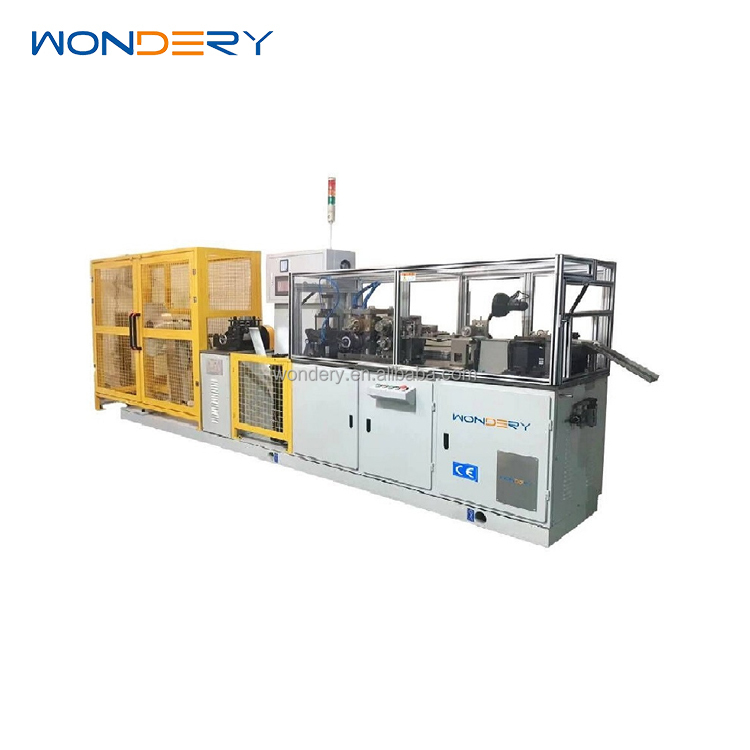

Fully Automatic Radiator Fin Making Machine 5000kg with PLC Control

Name: Fully Automatic Radiator Fin Making Machine 5000kg with PLC Control
Brand: Wuxi Wondery Industry Equipment Co., Ltd
Price: 110.00 USD
Availability: InStock

Brand Name:	WONDERY
MOQ:	1
Price:	$100,000-120,000

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Weight:

5000 Kg

Fin Thickness:

Min 0.07mm

Fin Blade Material:

Cobalt Containing High Speed Steel

Aluminum Foil Material:

4343/3003/4343 H14 Or H16

Fin Blade Life:

More Than 200 Million Fin Convolutions

Coil Inner Diameter:

200 Mm

Coil Outer Diameter:

Max 1500 Mm

Feeding Speed:

0-280 M/min

Max Cutting Times:

80 Per Minute

Cutting Accuracy:

+/-0 Convolution

Machine Weight:

6000 Kg

Dimensions:

5700X1500x2200 Mm

Pneumatic Pressure:

0.6Mpa

Control System:

PLC And HMI

Automation Level:

Fully-automatic

Highlight:

fully automatic radiator fin machine

radiator fin machine with PLC control

5000kg radiator fin making machine

Product Description

Wondery Hot Selling Good Quality Auto Radiator Fin Making Machine

Product Application

The auto radiator fin making machine is designed to produce heat exchange wavy fins with or without windows. This precision equipment features advanced control systems and multiple safety mechanisms for optimal performance.

Key Features

Equipped with decoiler, tensioning device, and feeding system
Includes interval oil lubrication system
Fin forming, correction and cutting functions
Strip run-out and blockage detection devices
Cutting fault indicator and overload protection
PLC, inverter, and AC servo control system
User-friendly touch screen interface for parameter setting

Technical Specifications

Category	Parameter	Unit	Value
Fin Forming Unit	Aluminum Foil Thickness	mm	min 0.07mm
	Fin Forming Blade Material	Cobalt Containing High Speed Steel Forged Parts
	Aluminum Foil Material	4343/3003/4343 H14 or H16
	Fin Forming Blade Life	More than 200 million fin convolutions
Fin Coil Information	Inner Diameter of Coil	mm	200
Fin Coil Information	Outer Diameter of Coil	mm	max 1500
Productivity	Feeding Speed	m/min	0-280
	Max cutting times	per minute	80
	Cutting Accuracy	+/-0 convolution
Machine Weight	Net weight	kg	6000
Overall Dimension	LWH	mm	5700×1500×2200

About Wuxi Wondery Industry Equipment Co., Ltd

We are a professional supplier of industrial machines specializing in equipment for the automobile, air conditioning, engineering vehicle, power generation, train, and ship industries. Established in 2008, we have extensive experience in development, design, quality control, and after-sales service.

Our Product Range

Radiator making machines, aluminum fin machines, radiator core builder machines, brazing furnaces, punching machines, straightening and cutting machines, tube expanders, automatic bending machines, and various dies.

Global Reach

We have exported to Taiwan (China), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, and more.

Our Services

Technical consultation, installation and test-running, technical training, maintenance, and custom non-standard product design based on customer requirements.

Frequently Asked Questions

1. What is the power supply of the heat exchanger making machines?

The power supply is determined by customer requirements. We can adjust voltage and phase through a transformer or match the customer's voltage directly for immediate use at the installation site.

2. What information should the customer provide to get an accurate quotation?

Please provide technical requirements, drawings, pictures, industrial voltage specifications, and planned production output for an accurate quote.

3. What is the payment term?

Standard payment terms are 40% down payment and 60% before delivery (via T/T transfer).

4. What is the delivery time?

Delivery typically occurs 30-60 days after receipt of down payment.
