Energy Saving Vacuum Pressure Impregnation System VPI 2000 * 2500 mm
Features and applications
The vacuum pressure impregnation equipment employs a compound process of “hot air-vacuum environment-hot air”,
which enables the windings to be impregnated and dried in a sealed container.
The vacuum pressure impregnation system has advantages of advanced design, scientific process, compact structure,
easy operation, safety and reliability, good sealing, and reduced laboring strength.
This series is used for vacuum impregnation treatment of windings of general motors, electrical equipment, special motors,
pump motors, magnetic motors, transformers, and iron cores. This equipment is a newly energy-saving equipment, which
greatly improves product quality, reduces production cost, and strengthens competitiveness.
Supply Scope
| Vacuum pressure impregnation tank, 1 set (vertical type); |
| resin storage tank, 1 set (vertical type); |
| vacuum system, 1 set; |
| vacuum buffer system, 1 set; |
| magnetic filtration system, 1 set; |
| resin supply and return system, 1 set; |
| hydraulic system, 1 set; |
| pressurizing system, 1 set; |
| pneumatic system, 1 set; |
| chilling system, 1 set; |
| entilation and discharge system, 1 set; |
| control and measurement system, 1 set; |
Main Technical Parameters
| impregnation tank size: Φ2000×h2500mm |
| storage tank size (vertical): Φ2000×h2500mm |
| electrical: automatic PLC control |
| vacuum pump: 2-grade vacuum pump system |
Material of Vacuum Pressure Impregnation Equipment Tank
|
head: 16MnR
Tank body: Q345R
Flange: 16MnR forging parts
|
Features
A) extreme vacuum degree (cold status and empty load): 0.00435PSI (30pa)
B) working vacuum degree: ≤0.00725PSI (50pa) (or resin saturation steam pressure)
C) empty tank air leak rate: ≤0.00001929PSI (0.133pa).m3/s
D) working pressure of vacuum pressure impregnation equipment: ≤90PSI(≈0.62Mpa)
E) pressurizing medium: filtered dry air;
F) design temperature: -10℃～80 ℃
J)installation type: vertical;
H) weight bearing stand: bear a maximum of 150ton;

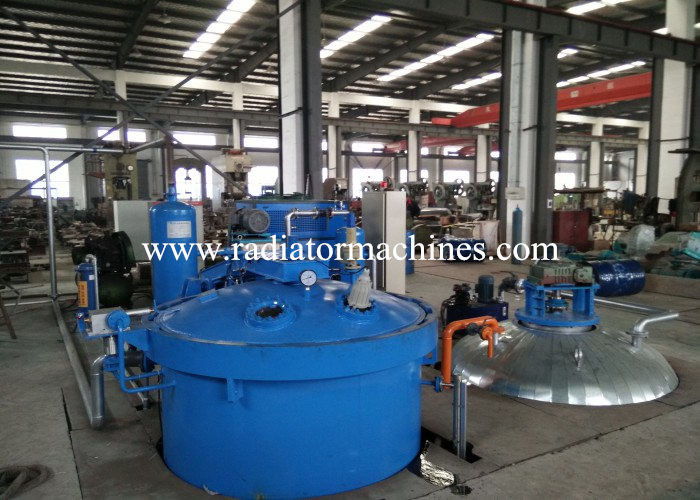

Picture of Vacuum Pressure Impregnation Equipment
