High Speed Radiator Fin Machine , Aluminum Fin Stamping Machine 300mm Wide

High Speed Radiator Fin Machine , Aluminum Fin Stamping Machine 300mm Wide

High Speed Radiator Fin Machine , Aluminum Fin Stamping Machine 300mm Wide
High Speed Radiator Fin Machine , Aluminum Fin Stamping Machine 300mm Wide

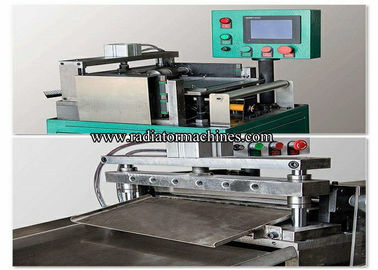

Large Image :  High Speed Radiator Fin Machine , Aluminum Fin Stamping Machine 300mm Wide

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE
Model Number: CPJ-CY-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: The normal package is plywood box with dessicant bag and wrapping film. Fumigation is not needed.
Delivery Time: 90 Days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Year
Detailed Product Description
Name: Fin Forming Machine Fin Height: 3-25 Mm
Max Fin Width: 300mm Weight: 1500kgs
Size: 1500*800*1550
High Light:

fin making machine

,

flat fin machine

High Speed Radiator Fin Machine , Aluminum Fin Stamping Machine 300mm Wide



Product Application

Aluminum radiator fin machine is also called as fin stamping machine, and it is used to produce the following fins:

straight and flat fins,serrated fins, perforated fins, wavy fins, louvered fins and others.





SPECIFICATIONS FOR Aluminum Radiator Fin Machine

Technical Parameters

Power supply



customized 3P 5 wire

Model Number

mm

CPJ8.5*10, CPJ14*10, CPJ16*10,CPJ19*10,CPJ24*10mm

Punching force

kg

4200

Fin Size

Fin Width

mm

max 300

Fin Size

mm

customized

Fin height accuracy

mm

+/-0.01-0.05mm

Overall Size

L,W,H

mm

1500*800*1550

Total Weight



kg

1500



Main Features

1) The column bushing of the radiator fin machine is made of high-strength imported wear resistant material. It has a service

life of more than 1 million times.

2 ) The slide of the die is of rolling ball structure which has less wear and tear and a longer service life.
3 ) The tension control device can keep the feeding speed matching with the cutting speed.
4 ) The touch screen allows the operator to set the parameters directly.
5 ) The decoiler is an auxiliary to the fin punching machine. It is equipped with proximity switch and control

delay switch so as to control the decoiling speed.
6) The fin punching machine is already installed with one set of die for producing fin of one specific specification.



PACKING

Packaging

Size

1500*800*1550mm (L,W,H)

Weight

1.5T

Packaging Details

The normal package is plywood box with dessicant bag and wrapping film.



Company Introduction

Our company mainly supplies the radiator making machines such as aluminum radiator fin forming machine,

radiator core builder machine,

radiator plastic tank crimping machine, air leak tester, header mold, plastic tank mold, etc.
