Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE CERTIFICATE
Model Number: WR-RJL
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case or Nude Package, Suitable for Sea Transportation
Delivery Time: 75 Days
Supply Ability: 3 Sets per Month
Name: |
Metal Melting Furnace |
Fuel Used: |
Natural Gas, LPG Gas, Etc |
Furnace Melting Capacity: |
300-3000kg/hour |
Refractory Material: |
Casting Material Used |
Casting Material Life: |
5 Years On Average |
Max Furnace Temperature: |
1200 Degree Celsius |
Name: |
Metal Melting Furnace |
Fuel Used: |
Natural Gas, LPG Gas, Etc |
Furnace Melting Capacity: |
300-3000kg/hour |
Refractory Material: |
Casting Material Used |
Casting Material Life: |
5 Years On Average |
Max Furnace Temperature: |
1200 Degree Celsius |

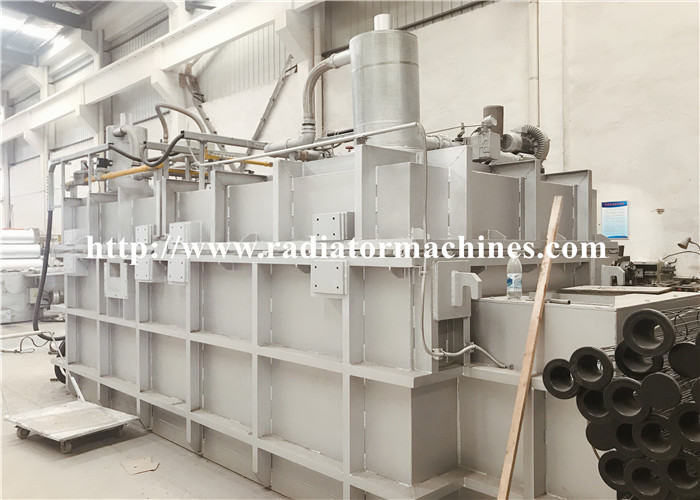

Gas Fired Fast Reverberatory aluminum metal melting furnace has a compact structure for both melting and holding aluminum liquid.
The melting chamber is formed by once-forming casting material, which has a high strength and a long service life. The furnace is
equipped with famous brand burner, which has functions of automatic ignition and temperature control.
The metal melting furnace also has an over-temperature alarm device.
1 ) The metal melting furnace employs the bright flame burner to reduce generation of oxides and improve
the radiation capacity of the flame. Combustion is complete, and heat efficiency is high.
2 ) The metal loss rate is less than 1.5%.
3 ) The furnace body has a compact and firm structure. It is scientifically designed without dead corners, and
easily cleaned.
4 ) The fume heat is utilized to save energy loss and improve heat efficiency. The heat efficiency reaches more than 50%.
5 ) The furnace works with a variety of fuels, such as natural gas and liquefied gas.
6 ) The hearth employs quality once-forming casting material with a service life of more than 5 years.
7 ) The control system employs the advanced PLC and touch screen system with easy operation, safety, reliability, and easy
maintenance.
Model | Melting Rate (kg/h) | Holding Capacity (kg) | Height (mm) | Long (mm) | Width (mm) |
WR-RJL-300 | 300 | 1000 | 5000 | 4350 | 2650 |
WR-RJL-500 | 500 | 1500 | 5100 | 4650 | 3000 |
WR-RJL-750 | 750 | 2000 | 5500 | 3800 | 3600 |
WR-RJL-1000 | 1000 | 3000 | 5500 | 4200 | 3800 |
WR-RJL-1500 | 1500 | 4000 | 6450 | 4550 | 4000 |
WR-RJL-2000 | 2000 | 5000 | 6600 | 4700 | 4000 |
WR-RJL-2500 | 2500 | 6000 | 6600 | 4980 | 4000 |
WR-RJL-3000 | 3000 | 8000 | 6800 | 5150 | 4000 |
Company Product:
Our company supplies the oil fired or gas fired zinc powder rotary melting furnaces, oil or gas fired zinc powder rotary metal
melting furnace, gas oir oil fired aluminum scrap melting furnaces, reveberatory aluminum melting furnace, continuous
aluminum melting furnae, aluminium melting furnace crucible melting furnace, aluminum liquid transfer ladles, aluminum
ladle preheater, electric aluminium melting furnace, electric aluminium holding furnace, gas fired aluminum holding
furnace, box type resistance furnace, etc.
