Epoxy Resin Vacuum Pressure Impregnation Equipment VPI 1500 * 2000mm

Epoxy Resin Vacuum Pressure Impregnation Equipment VPI 1500 * 2000mm

Brand Name:	WONDERY
Model Number:	VPI 1500*2000
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	90 Days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China (Mainland)

Certification:

Name:

Vacuum Pressure Impregnation Equipment

Motors To Be Treated:

HV Motors, Traction Motors, Transformer Motors, Etc

Resin Type:

Epoxy Resin, Silicon Resin, Etc

Impregnation Tank Size:

1500 *2000 Mm

Working Pressure:

0.6Mpa

Impregnation Tank Material:

345R Steel

Packaging Details:

DULY PACKED AND SUITABLE FOR SEA TRANSPORTATION

Supply Ability:

100 Sets per Year

Highlight:

vacuum pressure impregnation plant

vacuum pressure impregnation system

Product Description

Epoxy Resin Vacuum Pressure Impregnation Equipment VPI 1500 * 2000mm

Introduction

High vacuum pressure impregnation equipment / system is the key equipment for insulation treatment of high voltage

motors, special anti-explosion motors, and transformers. The equipment enhances the mechanical strength, insulation,

anti-moisture and anti-mold performance of the windings.

Installation type: vertical.

Supply Scope

1. Vacuum pressure impregnation equipment tank, 1 set;

2. Resin storage tank, 1 set;

3. Vacuum system, 1 set;

4. Hydraulic system, 1 set;

5. Pneumatic system, 1 set;

6. Pressurizing system, 1 set;

7. Resin cooling system, 1 set;

8. Resin heating system, 1 set;

9. Resin supply and return system, 1 set;

10. Electrical control system, 1 set;

11. Exhaust system, 1 set;

Technical Documents Provided

Documents for vacuum pressure impregnation system: Qualification certificate, technical features paper, main pressurized components

material list, welding line radiographic examination report, spare parts nondestructive examination report, pressure vessel appearance and physical dimension test report, welding test plate mechanics and curving performance examination report, pressure test inspection report, inspection certificate of pressure vessel product safety performance.

other documents: bought-in components documents and electrical components list; manual, foundation drawings, electrical diagram,

process flow charts, etc.

Technical Parameters

Vacuum Pressure Impregnation Equipment Tank 1 Set

a) pressurizing and impregnating tank, specification: Φ1500×2000mm, 1 piece; head: 16MnR; tank body material: Q345-R; flange: 16MnR forged parts;

b) working pressure: 0.6MPA;

c) working vacuum degree: 100-200Pa;

d) Sealing ring of the impregnating tank: gas-filling type sealing ring.

Resin Storage Tank 1 Set

a) insulation resin storage tank, specification: Φ1500×2000mm, 1 piece; material: Q235-B;

b) The resin storage tank is designed with one peephole light and one observation window.

c) working vacuum: 1000-2000Pa;

d) This system has heating and cooling function.

e) mixer: 25-36r/min, 3 KW.

f) heating cooling jacket layer: 100mm heating/cooling jacket layer.

Youtube Link of Working Vedio:

https://youtu.be/EWkfmRQbxHE

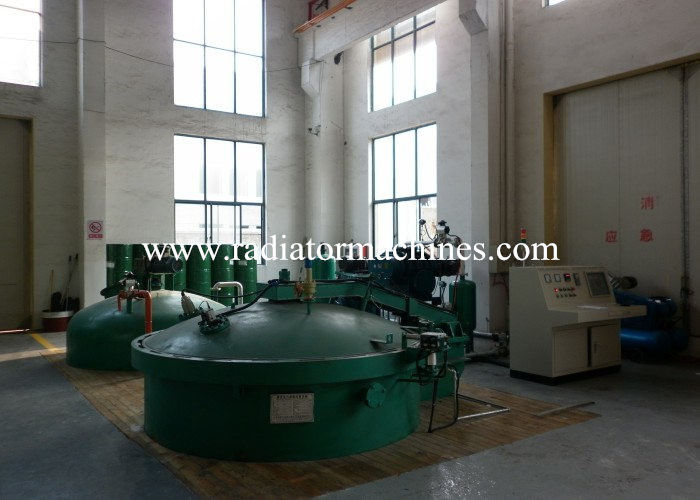

Picutre of Vacuum Pressure Impregnation Equipment
